d-flexx Flexible Bollard

Verified by manufacturer 4 months ago

Bollard 516 mm: DFBO50-40 (4250912311312)

Meon Variant:

Flexible bollard that absorbs the impact energy.

Jump to:
BIM object icon
+44 (0)23 9220 0606 Website

Application

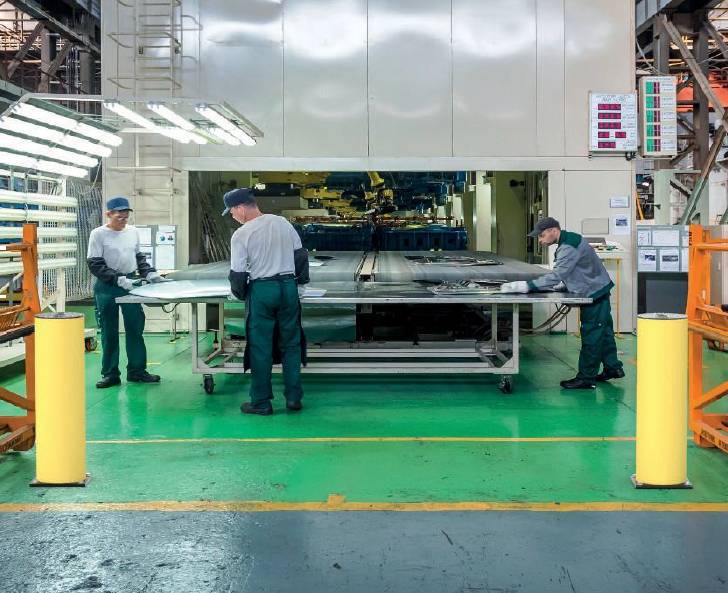

Due to its robustness and high visibility the bollard is suitable to be installed on parkings, entrances and for separation of pedestrian areas.

Description

The flexible d-flexx bollards absorbs the impact energy. The processed material does not damage the bollard and the vehicle.


Features and benefits:

  • 200 mm diameter.

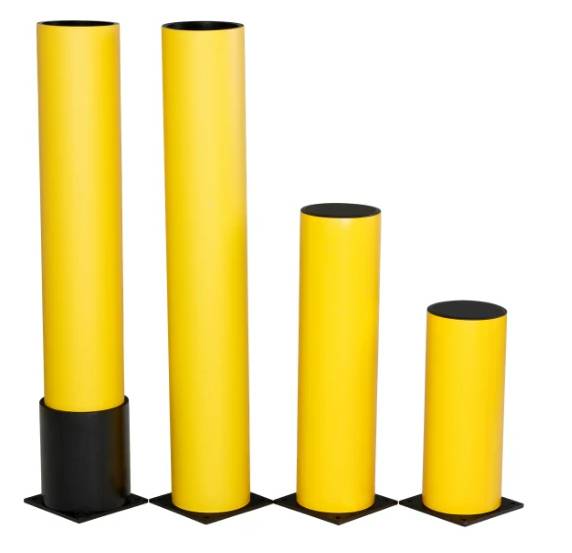

  • Available in three height options of 516 mm, 760 mm, 1200 mm.
  • Tested to withstand force of (Joule): 2.000 J .
  • Vehicle weight equivalent (kg): 2.000 kg.
  • Vehicle equivalent speed (km/h): 5.1 km/h.
  • Equivalent angle of impact: 90°.
  • Deflection zone: 250 mm.
  • 100% recyclable.

General information

Color

Black

Yellow

Similar to RAL 1018 traffic yellow.

Finish

Matt

Material

Polyethylene

Length

225 mm

Width

225 mm

Height

750 mm

516 mm

2000 mm

WarrantyDescription

Five year

Uniclass

Pr_20_76_08_62 Plastics bollardsPrimary

CAWS

Q50/31 Bollards

Q50/190 Bollards

Specification data - Plastics bollards

Material

Polyethylene.

Steel reinforcement

Not required.

Dimensions

-

Size and profile

Ø 200 mm.

Height

516 mm.

Top profile

Spherical.

Base

Flat.

Finishes

-

Colour

Yellow (like RAL 1018 traffic yellow) / black.

Accessories

Not required.

Width

225 mm.

Length

225 mm.

Deflection

250 mm.

Weight

10.8 kg.

Fixing

Concrete screw anchors M12 x 80 mm.

Fixing holes

Bore hole.

Four.

Force

2.000 J.

  • Vehicle weight equivalent (kg): 2.000 kg.
  • Vehicle equivalent speed (km/h): 5.1 km/h.
  • Equivalent angle of impact: 90°.

Chemical resistance

High - ISO/TR 10358.

Temperature resistance

-10° up to + 50°.

Sustainability data

Contains Red List materials

No

Country of material origin

Denmark

Country of product manufacture

Denmark

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

18.5 kg·CO₂e/kg

Recyclability

100%

Recycled content

0 %

BIM objects

BIM object icon

NBS BIM object standard

This BIM object has been authored to meet the requirements of the NBS BIM object standard.

Find out more about the NBS BIM object standard.

Platform Compatible Version
IFC
-

1

Revit
-

1
