Cycleway Tactile
Verified by manufacturer 3 months ago
To alert pedestrians, including the visually impaired, to the proximity of a cycleway.
Application
It provides a visual and physical indication on the position of the central limit to cyclists and a visual and detectable underfoot warning to pedestrians.
Description

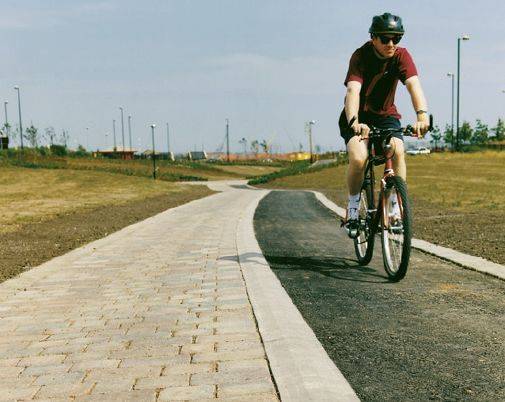

Demarcation paving is used to alert pedestrians, including those who are blind or partially sighted, about the proximity of a cycleway within a shared cycleway/ footpath route.
Features and benefits
- The units provide a visual and physical indication to cyclists on the position of the central limit.
- Provides a visual and easily detectable underfoot warning to all pedestrians.
General information
Color | White |
Finish | Textured Guidance for specification option: Solid unit with profiled surface. |
Material | Concrete Guidance for specification option: Hydraulically pressed concrete. |
Shape | Square |
Length | 200 mm |
Width | 200 mm |
Height | 60 mm Guidance for specification option: (80 mm including contour). |
Uniclass | |
CAWS | Q25/320 Tactile flags and slabs Q24/113 Conventional concrete block paving overlay Q24/112 Conventional concrete block paving with bound base Q24/110 Conventional concrete block paving Q24/10 Conventional concrete block paving Q25/31 Concrete flag paving systems |
Specification data - Concrete tactile flags
Standard | To BS EN 1338. |
Physical properties | |
Colour | Buff. |
Profile | |
Flag type | Solid unit with profiled surface. |
Dimensions and associated tolerances | |
Nominal sizes | 200 x 200 x 60 mm.Guidance for specification option: (80 mm including contour). |
Weathering resistance | ≤1.0 kg/m² as a mean with no individual value > 1.5 kg/m² (freeze thaw durability).Manufacturer guidanceIt should be appreciated that with all products weathering and site conditions can cause shade variation to appear across the surface of individual units. This does not in any way affect the performance of the units and any such variation will diminish over a period of time as the product matures |
Abrasion resistance | ≤23 mm (wide wheel abrasion test). |
Bending strength | 4.0 MPa, with no individual result less than 3.2 MPa. |
PhysicalPropertiesFinish | Hard-wearing surface layer with a minimum layer of 4 mm and >390 kg/m³ cement. |
BREEAM rating | A. Guidance for specification option: A+ can be achieved when used with recycled sub-base. |
Accessories | Not required. Stop end blocks. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 13 kg CO₂ eq/m² Self declared |
Recyclability | 100% |
