Cyclepod

Verified by manufacturer 4 months ago

Cyclepods Ltd

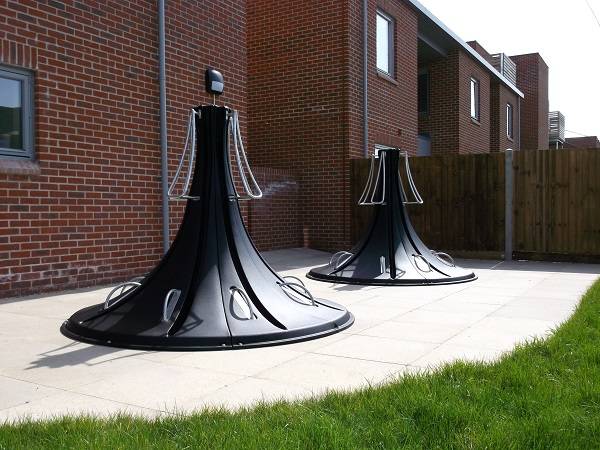

Space-saving cycle stand.

Jump to:
BIM object icon
+44 (0)1959 546046 Website

Application

Suitable for secure or semi-secure locations where space and aesthetics are important.

A solid level base is required for installation (e.g. concrete, large slabs). Consult manufacturer for further details.

Description

Bike storage for semi-secure locations where space and aesthetics are important.


Features and benefits:

  • Stores eight bikes vertically within a two metre diameter.

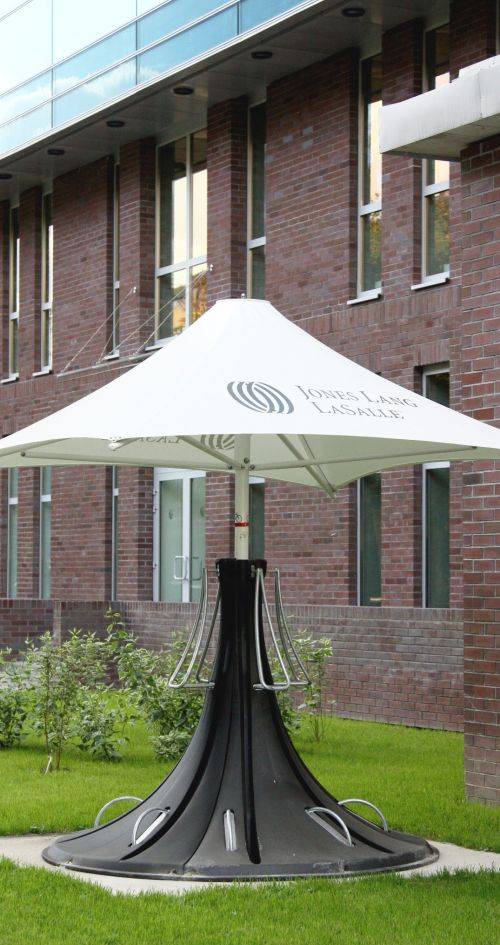

  • Can be paired with shelters and canopies.
  • The upper and lower securing arms provide two locking points (front wheel and frame/ back wheel and frame) per bicycle for extra security.
  • Practical to use.
  • Channel is compatible for use with 99% of all standard European tyre widths.
  • Includes rainwater holes in the base of every track for drainage.
  • Metal reinforcement plates are added to the securing arms.
  • No visible fixings.
  • Can be combined with Spacepod to go around corners or to form larger islands - consult manufacturer for details.
  • Anti-wicking, anti-UV, fungus resistance and fire retardancy properties.

General information

Color

Black

Guidance for specification option:

Recyclable.

Red

Yellow

Blue

Guidance for specification option:

Royal blue and light blue.

Green

Guidance for specification option:

Dark green and light green.

Show more

Finish

-

Manufacturer guidance

Dimpled effect.

Material

Stainless steel

Medium density polyethylene (MDPE)

Shape

Circle

Width

2190 mm

Height

1800 mm

Warranty description

Two year

Uniclass

Pr_40_30_21_65 Plastics cycle lockersPrimary

CAWS

Q50/210 Cycle stands

Q50/212 Cycle lockers

Q50/30 Street furniture

Specification data - Plastics cycle lockers

Stand type

Semi-vertical cycle stand.

Dimensions

-

Width

2190 mm.

Depth

2190 mm.

Height

1800 mm.

Materials

-

Frame

Stainless steel.

Panels

Medium density polyethylene.

Colour

Black.

Guidance for specification option:

Standard (recyclable).

Dark green.

Grey.

Light blue.

Light green.

Red.

Royal blue.

Stone effect.

Yellow.

Accessories

Not required.

Optional canopy.

Securing arms

Galvanized steel rod, 20 mm.

Guidance for specification option:

Standard.

Recycled stainless steel tube, 25 mm.

Guidance for specification option:

On request.

Top plate

Galvanized steel, 5 mm.

Stainless steel, 5 mm.

Configuration

Guidance for specification option:

Insert requirements.

Fixings

M12/ M14 monties, drilled to a depth of 100 mm (maximum), two fixing bolts required (per Cyclepod).

Weight

20 kg each; 150 kg overall (with securing arms).

Sustainability data

Country of material origin

United Kingdom

Recyclability

-

Manufacturer guidance

Made from recyclable materials.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Guidance for specification option:

Up to 100%

BIM objects

BIM object icon

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1
