Application

Suitable for secure or semi-secure locations where space and aesthetics are important.

A solid level base is required for installation (e.g. concrete, large slabs). Consult manufacturer for further details.

Description

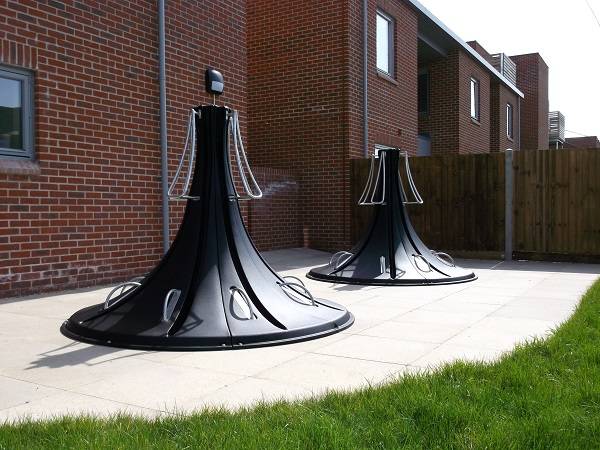

Space-saving, aesthetically pleasing cycle stand.

Features and benefits:

  • Stores eight bikes vertically within a two metre diameter.

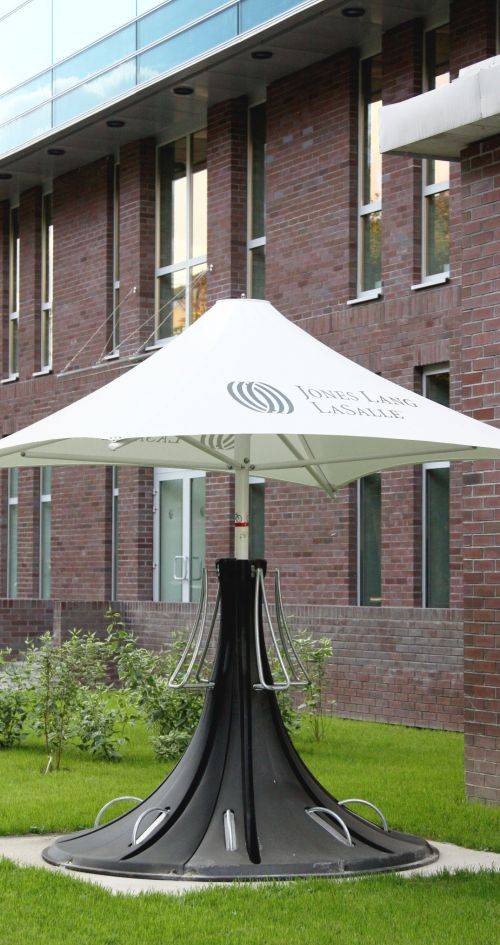

  • Can be paired with shelters and canopies.
  • The upper and lower securing arms provide two locking points (front wheel and frame/ back wheel and frame) per bicycle for extra security.
  • Practical to use.
  • Channel is compatible for use with 99% of all standard European tyre widths.
  • Includes rainwater holes in the base of every track for drainage.
  • Metal reinforcement plates are added to the securing arms.
  • No visible fixings.
  • Can be combined with Spacepod to go around corners or to form larger islands - consult manufacturer for details.

Applications:

Suitable for secure or semi-secure locations where space and aesthetics are important.

A solid level base is required for installation (e.g. concrete, large slabs). Consult manufacturer for further details.

General information
Color

Black (recyclable), red, yellow, royal blue, light blue, dark green, light green, grey, stone effect

Features

Space saving, secure, compatible, anti wicking, fungus resistance, anti UV, fire retardancy

Finish

Dimpled effect

Material

Medium density polyethylene, stainless steel

Size

2190 x 1800 mm

Uniclass 2015 Plastics cycle lockers (Pr_40_30_21_65)
Specification data
Product Reference

Cyclepod

Configuration

Insert drawing/ reference.

Colour

Black

Standard.

Dark green

Grey

Light blue

Light green

Red

Royal blue

Stone effect

Yellow

Securing arms

Galvanized steel rod, 20 mm

Standard.

Recycled stainless steel tube, 25 mm

On request.

Top plate

Galvanized steel, 5 mm

Stainless steel, 5 mm

Shelter/ Canopy

Required

Consult manufacturer for details and insert requirements.

Not required

Standard product features

Material:

  • Body: Medium density polyethylene (MDPE).
  • Fixings: Stainless steel.
  • Ground anchors: Zinc plated.
  • Nuts: Nyloc.

Finish:

Dimpled effect.

Size:

  • Overall size (h x d): With canopy: 3200 x 3000 mm; without canopy: 1630 x 2190 mm.
  • Channel track: 60 mm wide.
  • Pod wall: 7–9 mm thick.
  • Outer lower rim: 20 mm.

Fixings:

  • M12/ M14 monties, drilled to a depth of 100 mm (maximum).
  • Two fixing bolts required (per Cyclepod).

Weight:

20 kg each; 150 kg overall (with securing arms).

Product Options

Colour:

- Black:

Recycled and recyclable.

- Other colours:

Recyclable only.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
