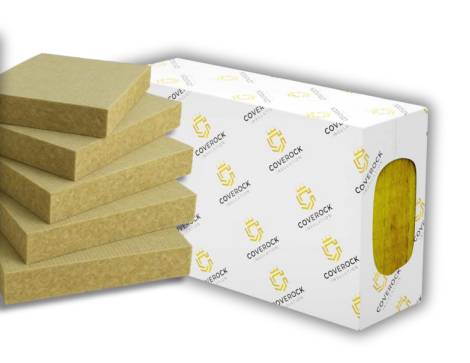

CVRock Rainscreen Light Slab - Rock Wool Slab Insulation

Verified by manufacturer 4 days ago

80 mm Slab

Coverock Insulation Ltd Variant:

Light slabs of stone wool for internal and external building objects for thermal, acoustic and fire insulation.

Jump to:
+44(0)2030115570 Website

Application

Suitable for use in applications such as:

  • External facades insulated by lightweight cladding (e.g. rainscreen, composite, siding or lining cement).
  • External walls with facades of stone or glass.
  • Exterior and interior stud walls (wood and metal framework).
  • Brick cavities, curtain walls, cavity walls, partition walls, suspended ceilings and soffits.

Description

Mineral wool slab for internal and external thermal, acoustic and fire insulation.

Features and benefits:

  • Rigid 1200 x 600 x 80–250 mm slab.
  • A1 reaction to fire.
  • Range of thicknesses.
  • Thermal conductivity: ≤0.035 W/m·K.
  • Thermal resistivity: 2.25–7.1 m²·K/W.

General information

Color

Yellow

Finish

Unfinished

Material

Mineral wool

Shape

Rectangle

Length

1200 mm

Width

600 mm

Height

80 mm

90 mm

100 mm

110 mm

120 mm

Show more

Uniclass

Pr_25_57_06_56 Mineral wool slab insulationPrimary

CAWS

H92/775 Thermal insulation

F30/155 Partial fill cavity insulation

F30/12 Partial fill cavity insulation

H31/50 Thermal insulation

K45/50 Insulation

F30/10 Full fill cavity insulation

K40/55 Insulation

K45/425 Insulation

K40/285 Insulation

F30/150 Full fill cavity insulation

H30/311 Mineral wool thermal insulation

H31/271 Mineral wool thermal insulation

Specification data - Mineral wool slab insulation

Classification data

Standard

To BS EN 13162.

Thickness

80 mm.

Edges

Square.

Thermal conductivity (maximum)

≤0.035 W/m·K.

Compressive strength (minimum)

0.5 kPa.

Guidance for specification option:

At 10% deformation.

Fire performance

Reaction to fire classification of A1, as defined in BS EN 13501-1.

Thermal resistance

2.25 m²·K/W.

Sustainability data

Material

Mineral wool

Literature

TDS - CVRock Rainscreen Light Slab

TDS - CVRock Rainscreen Light Slab

Instruction for use and handling of Coverock stone mineral products

Instruction for use and handling of Coverock stone mineral products
