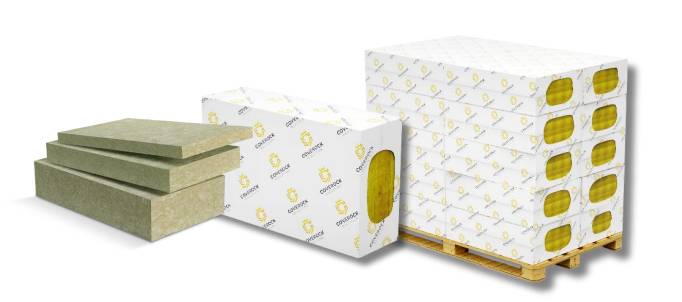

CVRock Frame Slab - Rock Wool Slab Insulation
Verified by manufacturer 27 days ago
50 mm Slab
50 mm Slab
Slabs of stone wool for internal and external building objects for thermal, acoustic and fire insulation.
Application
Suitable for use in applications such as:
- Frame wall systems (cassettes, cavity walls, curtain walls, prefabricated panels, ventilated facades and sidings).
- Steel frame structures and timber frame structures, partition walls and ventilated flat roofs.
- Curtain wall systems integrated with framed structures.
- External wall cladding systems for industrial and warehouse buildings.
Description
Mineral wool slab for internal and external thermal, acoustic and fire insulation.
Features and benefits:
- Rigid 1200 x 600 x 50–250 mm slab.
- A1 reaction to fire.
- Range of thicknesses.
- Thermal conductivity: ≤0.035 W/m·K.
- Thermal resistivity: 1.4–6.85 m²·K/W.
General information
Color | Yellow |
Finish | Unfinished |
Material | Mineral wool |
Shape | Rectangle |
Length | 1200 mm |
Width | 600 mm |
Height | 50 mm 60 mm 70 mm 80 mm 90 mm |
Uniclass | |
CAWS | H31/50 Thermal insulation J31/334 Mineral wool insulation J41/425 Mineral wool (MW) insulation H31/271 Mineral wool thermal insulation H30/311 Mineral wool thermal insulation |
Specification data - Mineral wool slab insulation
Classification data | |
Standard | To BS EN 13162. |
Thickness | 50 mm. |
Edges | Square. |
Thermal conductivity (maximum) | ≤0.035 W/m·K. |
Compressive strength (minimum) | 0.5 kPa. Guidance for specification option: At 10% deformation. |
Fire performance | Reaction to fire classification of A1, as defined in BS EN 13501-1. |
Thermal resistance | 1.4 m²·K/W. |
Sustainability data
Material | Mineral wool |
Literature
Literature type
TDS - CVRock Frame Slab
Instruction for use and handling of Coverock stone mineral products
