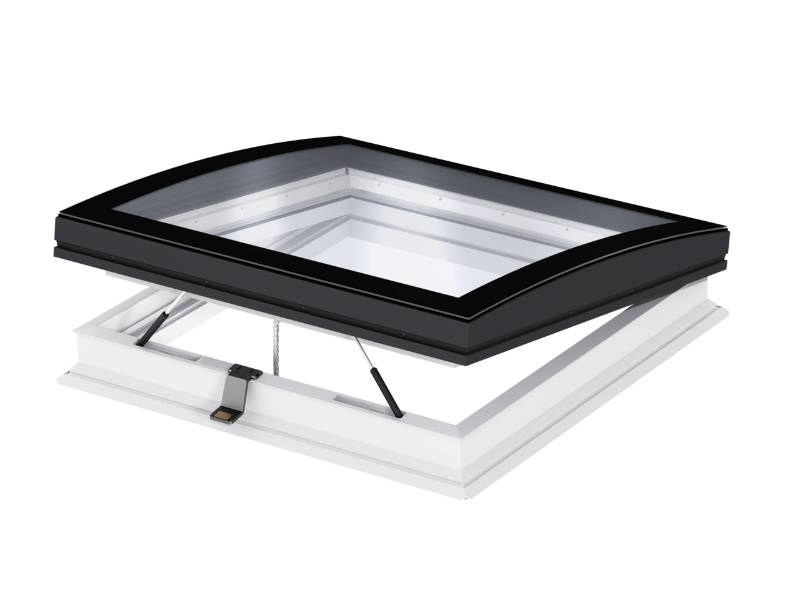

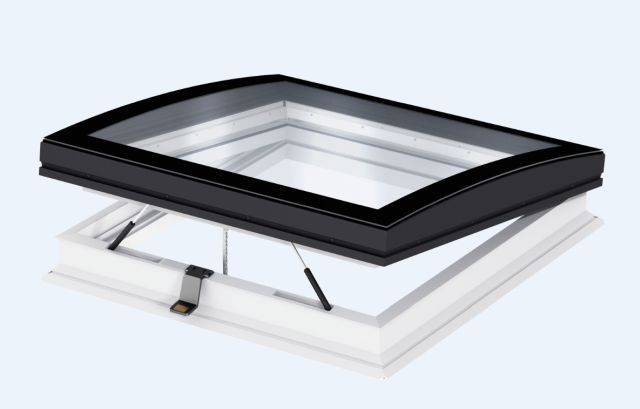

CVP INTEGRA® Electric Flat Roof Window, Curved Glass

CVP INTEGRA® Electric Flat Roof Window, Curved Glass

VELUX Company Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Electrically operated flat roof window with curved top cover. Suitable for roof pitches from 0-15°.

Jump to:
+44 (0)1592 778225 www.velux.co.uk

Application

Electrically operated flat roof window with curved glass cover for roof pitches from 0–15°.

Description

Features and benefits:

  • VELUX INTEGRA® convenient operation with Integrated rain sensor for automatic closing during rain.
  • Highly-insulated PVC sash construction.
  • Double glazed window with laminated inner pane for additional safety.
  • Curved glass cover with glass to edge design ensures uninterrupted drainage and clearer view to the sky.
  • Energy efficient with U-value of just 0.72 Urc for the complete window installation.
  • Excellent sound insulation from rain and hail.
  • Available in eight sizes with a kerb height of 150 mm.
  • Extension frame for warm roof installation.
  • AA fire rated.

General information

Color

White

White base unit, black brown profiles on top cover.

Material

PVC

PVC Base Unit, Anodised Aluminium Top Cover.

Shape

Other

Electrically operated flat roof window with curved glass cover.

Size

600 x 600 mm

600 x 900 mm

800 x 800 mm

900 x 900 mm

900 x 1200 mm

Show more

WarrantyDescription

Ten year

For window and pane

Three year

For blinds and electrics

Uniclass 2015

Pr_30_59_72_31 Framed rooflightsPrimary

CAWS

L10/480 Roof windows

Product range

Flat Roof Solutions

Specification data - Framed rooflights Enhanced data

Form

Electrically operated flat roof window with curved glass cover.

Size

600 x 600 mm.

600 x 900 mm.

800 x 800 mm.

900 x 900 mm.

900 x 1200 mm.

1000 x 1000 mm.

1000 x 1500 mm.

1200 x 1200 mm.

Product performance

-

Fire performance

-

Reaction to fire

AA fire rated.

Frame

-

Material

PVC.

Finish

-

Colour

White base unit, black brown profiles on top cover.

Glazing or infill

-

Type

Double glazed window with laminated inner pane for additional safety.

Integral kerb

150 mm.

Kerb height.

Operation

-

Type

Electrically operated via KLI Wall Switch.

Accessories

FMG Electric pleated blind, colour 1016 White.

FMG Electric pleated blind, colour 1259 Cream.

FMG Electric pleated blind, colour 1265 Black.

FMK Electric light dimming pleated blind, colour 1045 White.

FMK Electric light dimming pleated blind, colour 1047 Black.

FSK Solar Operated light dimming pleated blind, colour 1045 White.

FSK Solar Operated light dimming pleated blind, colour 1047 Black.

MSG Solar Operated awning blind, colour 6090 White.

ZCE 060060 0015.

Extension frame for warm roof installation 600 x 600 mm.

ZCE 060090 0015.

Extension frame for warm roof installation 600 x 900 mm.

ZCE 080080 0015.

Extension frame for warm roof installation 800 x 800 mm.

ZCE 090090 0015.

Extension frame for warm roof installation 900 x 900 mm.

ZCE 090120 0015.

Extension frame for warm roof installation 900 x 1200 mm.

ZCE 100100 0015.

Extension frame for warm roof installation 1000 x 1000 mm.

ZCE 100150 0015.

Extension frame for warm roof installation 1000 x 1500 mm.

ZCE 120120 0015.

Extension frame for warm roof installation 1200 x 1200 mm.

ZZZ 210 060060.

Frame fixing kit 600 x 600 mm.

ZZZ 210 060090.

Frame fixing kit 600 x 900 mm.

ZZZ 210 080080.

Frame fixing kit 800 x 800 mm.

ZZZ 210 090090.

Frame fixing kit 900 x 900 mm.

ZZZ 210 090120.

Frame fixing kit 900 x 1200 mm.

ZZZ 210 100100.

Frame fixing kit 1000 x 1000 mm.

ZZZ 210 100150.

Frame fixing kit 1000 x 1500 mm.

ZZZ 210 120120.

Frame fixing kit 1200 x 1200 mm.

Execution

Installation of framed rooflights.

Window code

CVP 060060 0673QV + ISD 060060 1093.

600 x 600 mm; curved glass cover.

CVP 060090 0673QV + ISD 060090 1093.

600 x 900 mm; curved glass cover.

CVP 080080 0673QV + ISD 080080 1093.

800 x 800 mm; curved glass cover.

CVP 090090 0673QV + ISD 090090 1093.

900 x 900 mm; curved glass cover.

CVP 090120 0673QV + ISD 090120 1093.

900 x 1200 mm; curved glass cover.

Show more

Digital objects

Platform Compatible Version Certified to
Revit
-

2

2.1
Download now from NBS National BIM Library

Third party certifications

  • CE marked: EAD 220062-00-0401
