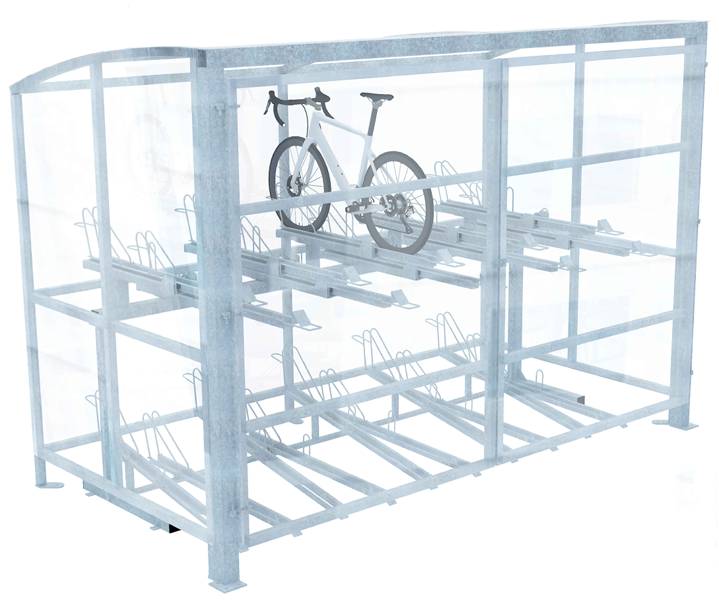

CuvaCanti Closed - Cycle Shelter
Verified by manufacturer 26 days ago
CQMS
Certificate type
The Railway Industry Supplier Qualification Scheme
Certificate type
smas WORKSAFE
Certificate type
A closed cycle shelter fabricated using carbon steel.
Application
Suitable for use with cycle racks.
Description
CuvaCanti Closed is a carbon steel cycle shelter with integrated gates.
Features and benefits:
- 50 x 50 mm strongbox square-section construction framework.
- 3 mm polyethylene terephtalate glycol-modified (PET-G) UV2 sheets, with an option to upgrade to 5 mm.
- Available with various locking options.
- Galvanised to BS EN 1461.
- Optional powder-coated finish in RAL colours.
- Surface mounting or root fixing options available.
General information
Color | Silver Other |
Finish | Galvanized Powder-coated |
Material | Carbon steel Polyethylene |
Shape | Other |
Length | 4100 mm Bespoke |
Width | 2163 mm Bespoke |
Height | 2889 mm Bespoke |
Warranty description | Two year Guidance for specification option: Galvanized coating. |
Uniclass | |
CAWS | B91/385 Shelter B91/340 Cycle shelter |
SKU Code | SS-CS-CCA-CLOSED |
Specification data - Composite panelled shelters
Classification data | |
Shelter description | Closed cycle shelter. |
Dimensions | |
Plan size | 4100 x 2163 mm. Other. Guidance for specification option: Available in bespoke sizes. Consult manufacturer for details and insert requirements. Manufacturer guidanceLength x width. |
Height | 2889 mm. Other. Guidance for specification option: Available in bespoke sizes. Consult manufacturer for details and insert requirements. |
Frame | |
Material | Structural steel. Guidance for specification option: 50 x 50 mm strongbox square section frame. |
Finish | Galvanized. Powder-coated. Guidance for specification option: Available to any standard RAL colour. Consult manufacturer for details and insert requirements. |
Panels | Glazing plastics-framed panels. Guidance for specification option: 3 mm PET-G UV2 clearview panels and available in 5 mm. Consult manufacturer for details. |
Cladding | Not required. Metal mesh. |
Roof covering | Glazing plastics. Guidance for specification option: 3 mm PET-G UV2 clearview panels and available in 5 mm. Consult manufacturer for details. |
Openings | |
Doors | Hinged gate. Guidance for specification option: Two PET-G clearview panels with hasp and staple locking. Sliding gate. |
Accessories | Not required. Locks. Guidance for specification option: Available with manual digital lock and lock-and-key options. |
Fixing | Root fixed. Surface mounted with base plate. |
Base | 150–200 mm concrete base. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Carbon steel Polyethylene |
Expected Life | Ten year |
Product certifications
Certification type
CQMS
CQMS Mutual Recognition Certificate
The Railway Industry Supplier Qualification Scheme
RISQS Certificate of Verification
smas WORKSAFE
SMAS Worksafe Accreditation
Literature
Literature type

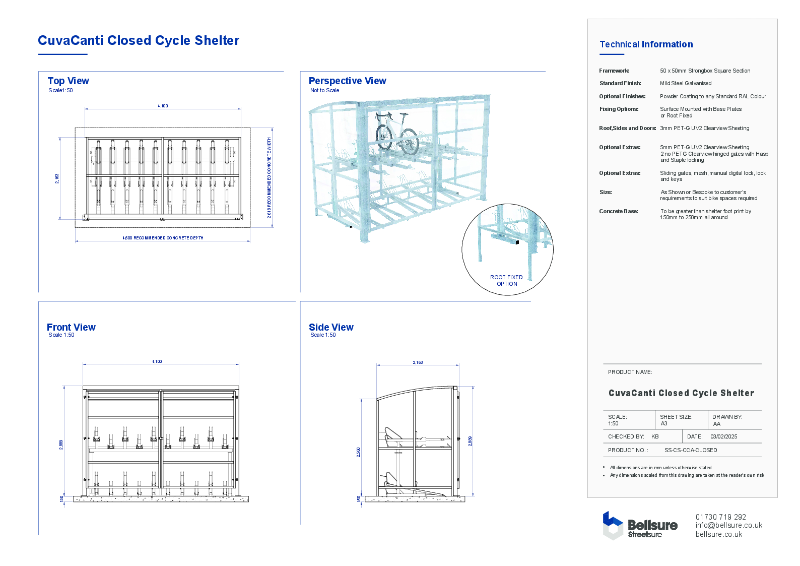

CuvaCanti Closed Datasheet
Bellsure Catalogue
CPD materials
Achieving Cycle Parking Standards Efficiently
