CuvaBrella - Cycle Shelter

Name: CuvaBrella - Cycle Shelter
Brand: Bellsure Group
SKU: 4T2iTaRviHZASGFSyVYVw9

Verified by manufacturer 23 hours ago

CuvaBrella - Single-sided

Bellsure Group

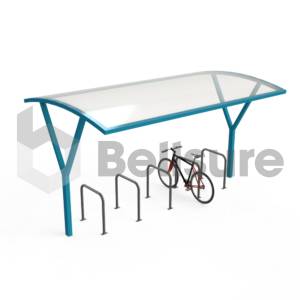

CuvaBrella cycle shelter is available in four design configurations.

Jump to:

Request BIM

+44 (0)1730 719292 Website

Application

Suitable for providing covered cycle parking solutions.

Description

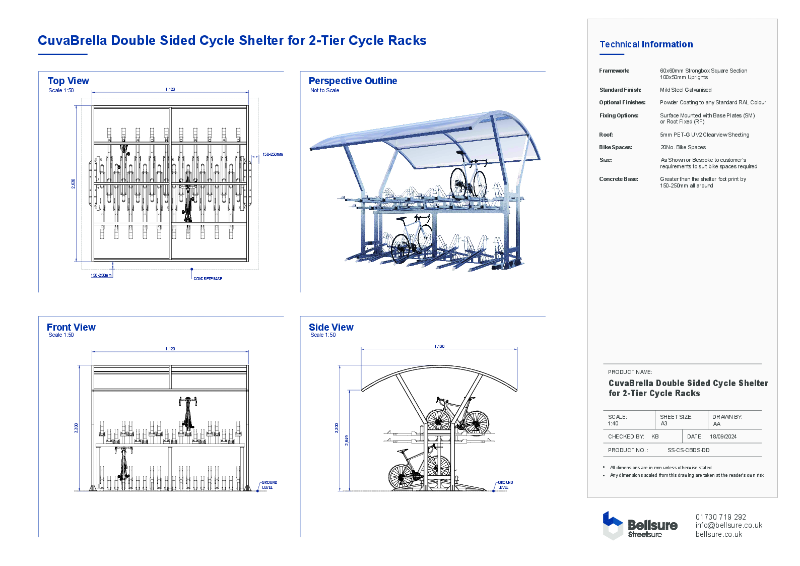

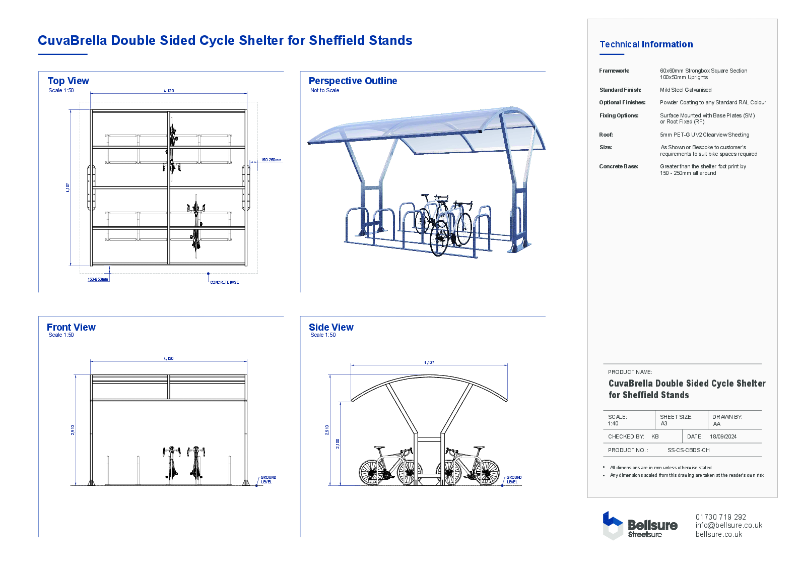

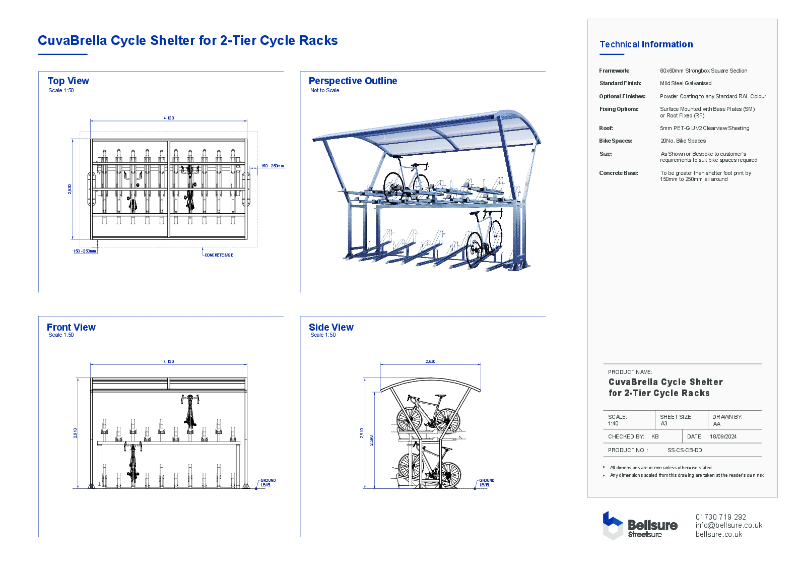

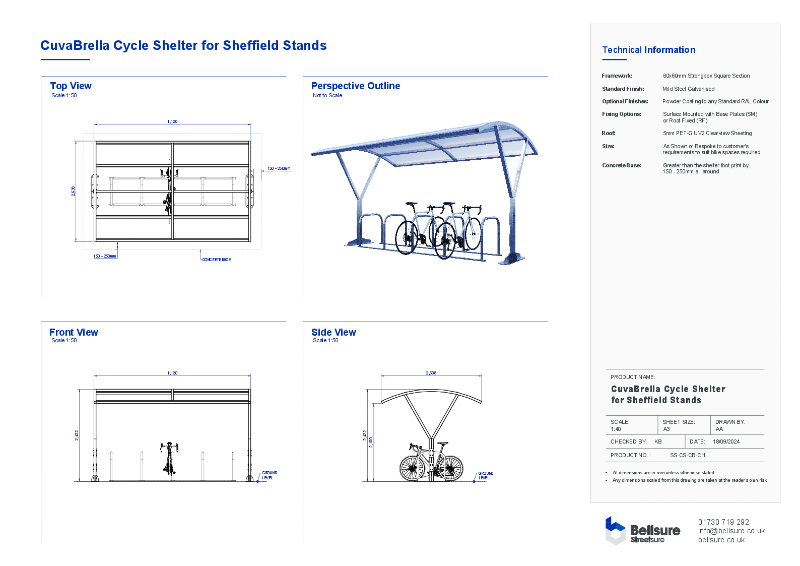

The CuvaBrella cycle shelter is available in four configurations: single-sided, double-sided, two-tier single-sided and two-tier double-sided cycle storage.

Features and benefits:

60 x 60 mm strongbox square section construction to EN 10219:2006.
5 mm polyethylene terephthalate glycol-modified (PET-G) UV2 roof sheets.
Galvanised to BS EN 1461.
Optional powder coating material to BS 3900.
standard and two-tier cycle storage are both available in single-sided or double-sided shelter options.
Surface mounting or root fixing options available.

General information

Color	Other
Finish	Galvanized Powder-coated
Material	Steel Polycarbonate
Shape	Other
Length	2100 mm 4107 mm 2030 mm Bespoke
Width	4515 mm 8180 mm Bespoke
Height	2400 mm 3180 mm 2900 mm Bespoke
Warranty description	Two year Guidance for specification option: Galvanized coating.

Uniclass	Pr_20_65_78_58 Open-sided sheltersPrimary
CAWS	B91/340 Cycle shelter B91/385 Shelter

SKU Code	SS-CS-CB-CH

Specification data - Open-sided shelters

Classification data
Shelter description	Single-sided cycle shelter.
Dimensions	-
Plan size	2638 x 4120 mm. Manufacturer guidance Length x width. Available in bespoke sizes. Consult manufacturer for details and insert requirements.
Height	2422 mm.
Frame	-
Material	Structural steel. Guidance for specification option: To BS EN 10219:2006, 60 x 60 mm strongbox square section frame. Stainless steel.
Finish	Galvanized. Powder-coated. Brushed. Galvanized and powder-coated.
Colour	- Manufacturer guidance Consult manufacturer and insert requirements.
Roof covering	Glazing plastics. Guidance for specification option: 5 mm PET-G UV2 clearview panels.
Accessories	Note required. Locking rail.
Fixing	Root fixed. Surface mounted with base plates.
Capacity	10 bicycles. 14 bicycles. 20 bicycles. 24 bicycles. 30 bicycles.
Colours	- Manufacturer guidance Consult manufacturer for details and insert requirements.
