CuvaCanti - Cycle Shelter

Name: CuvaCanti - Cycle Shelter
Brand: Bellsure Group
SKU: fsLx9uxsXotUGGM1pFnoJB

Verified by manufacturer 29 days ago

CuvaCanti Cantilever

Product certifications:

The CuvaCanti cycle shelter is available with a cantilever or double-sided canopy.

Jump to:

Application

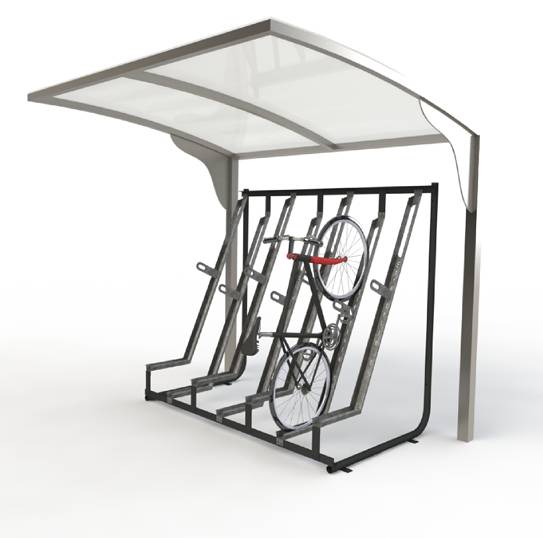

Suitable for use with Citihoop cycle stands or two-tier cycle racks.

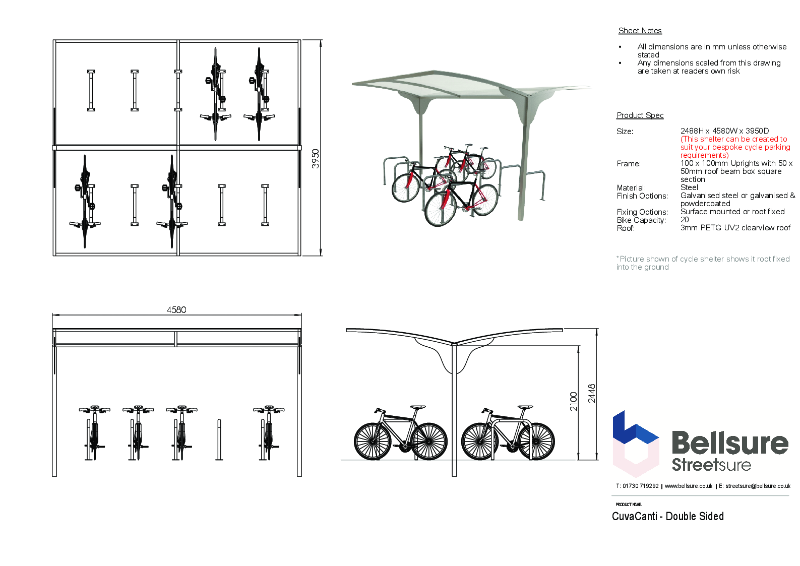

CuvaCanti cycle shelter is available in single and double-sided cantilever cycle shelter configurations.

Features and benefits:

50 x 50 mm strongbox square section construction to EN 10219:2006.
3 mm polyethylene terephtalate glycol-modified (PET-G) UV2 roof sheets, with an option to upgrade to 5 mm.
Galvanised to BS EN 1461.
Optional powder coating material to BS 3900.
Surface mounting or root fixing options available.

Color	Grey Silver Other
Finish	Galvanized Powder-coated
Material	Steel Polyethylene
Shape	Other
Length	2025 mm 3950 mm Bespoke
Width	2500 mm 4580 mm Bespoke
Height	2448 mm
Warranty description	Two year Guidance for specification option: Galvanized coating.

Uniclass	Pr_20_65_78_58 Open-sided sheltersPrimary
CAWS	B91/340 Cycle shelter B91/385 Shelter

SKU Code	SS-CC+CH

Classification data
Shelter description	Cantilever cycle shelter.
Dimensions	-
Plan size	2025 x 4150 mm. Manufacturer guidance Length x width. Available in bespoke sizes. Consult manufacturer for details and insert requirements.
Height	2448 mm.
Frame	-
Material	Structural steel. Guidance for specification option: To BS EN 10219:2006, 100 x 100 mm uprights with 50 x 50 mm strongbox square section frame.
Finish	Galvanized. Powder-coated. Galvanized and powder-coated.
Colour	- Manufacturer guidance Consult manufacturer and insert requirements.
Roof covering	Glazing plastics. Guidance for specification option: 3 mm PET-G UV2 clearview roof. Available in 5 mm via upgrade. Consult manufacturer for details.
Accessories	- Manufacturer guidance Consult manufacturer for details and insert requirements.
Fixing	Root fixed. Surface mounted with base plate.
Capacity	10 bicycles. 14 bicycles. 20 bicycles. 24 bicycles. 30 bicycles.
