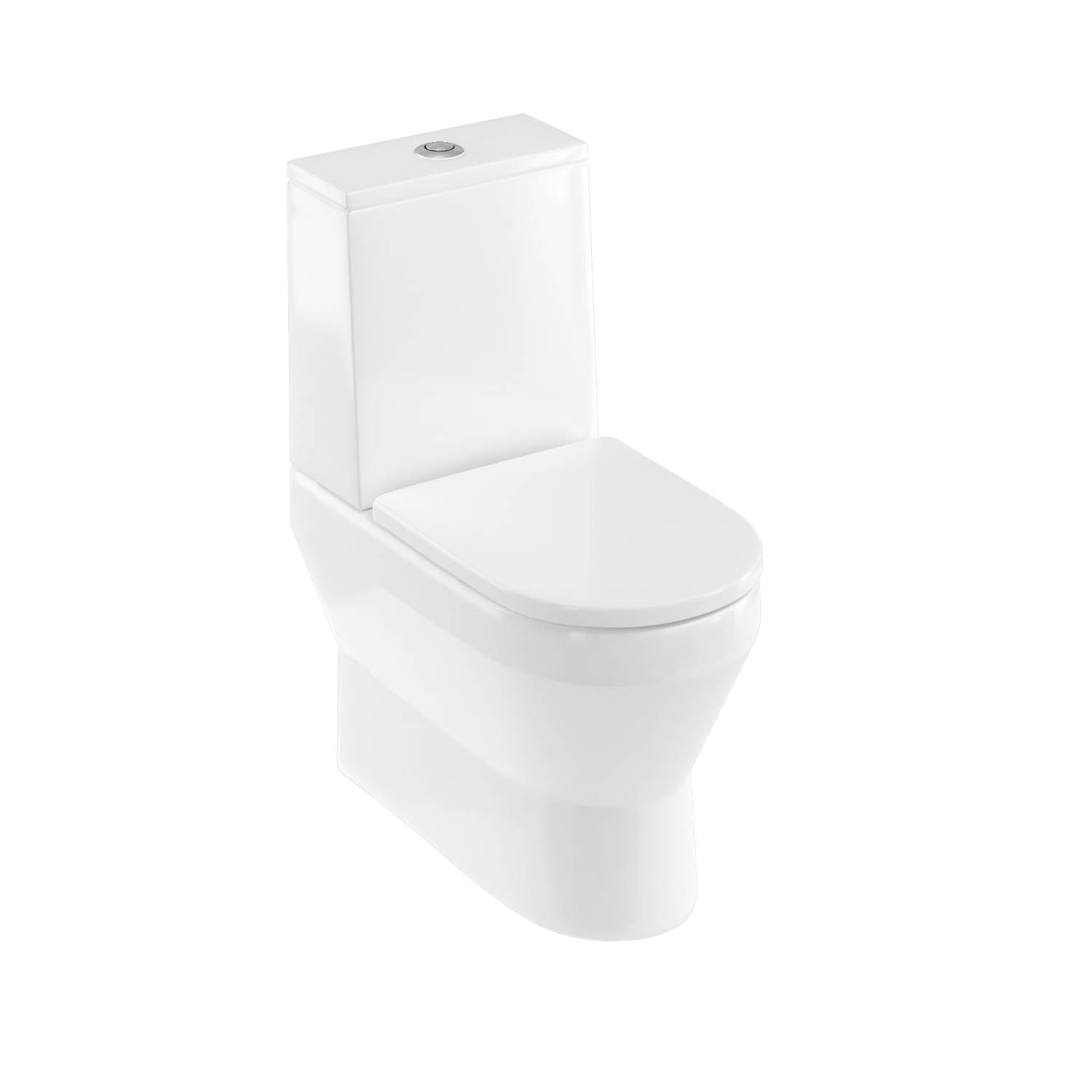

Curve2 Rimless Back-to-wall Close Coupled WC Including Soft Close Seat

Curve2 Rimless Back-to-wall Close Coupled WC Including Soft Close Seat

Verified by manufacturer 8 months ago

Britton Bathrooms

Rimless back-to-wall close coupled WC including soft close seat.

Jump to:
+441322422743 www.brittonbathrooms.com

Description

White, back-to-wall, rimless WC with close coupled, dual flush cistern and seat with soft close hinges.


Features and benefits:

  • 50.6 kg total weight.
  • Dual flush cistern fittings. Push large button down for 6 litre flush and small button for 3 litre flush.
  • WRAS approved cistern fittings.
  • BS EN 997:2012 Class 2
  • BS EN 33:2011
  • Gloss finish.

General information

Color

White

Finish

Glazed

Material

Vitreous china

Length

360 mm

Width

650 mm

Height

850 mm

WarrantyDescription

Ten year

Uniclass

Pr_40_20_93_94 WC pansPrimary
Pr_40_20_93_89 WC cisterns
Pr_40_20_93_95 WC seats and covers
Ss_40_15_75_97 WC systems

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans

Standard

To BS EN 997.

Form

Back-to-wall.

Connecting dimensions

To BS EN 33.

Pan height

420 mm.

Materials

-

Body

Vitreous china to BS 3402.

Finish and colour

Gloss, white.

Water supply, outlet and seat holes

-

Water supply

Top inlet.

Third party certification:

Water Regulations Advisory Scheme (WRAS) approved.

CisternCapacity

6 L / 3 L.

Operating control

Push button.

CisternHeight

430 mm.

Environmental information

Country of product manufacture

China

Recyclability

100%

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
