Curtain Wall System Cortizo TPV-52

Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Cortizo UK Limited

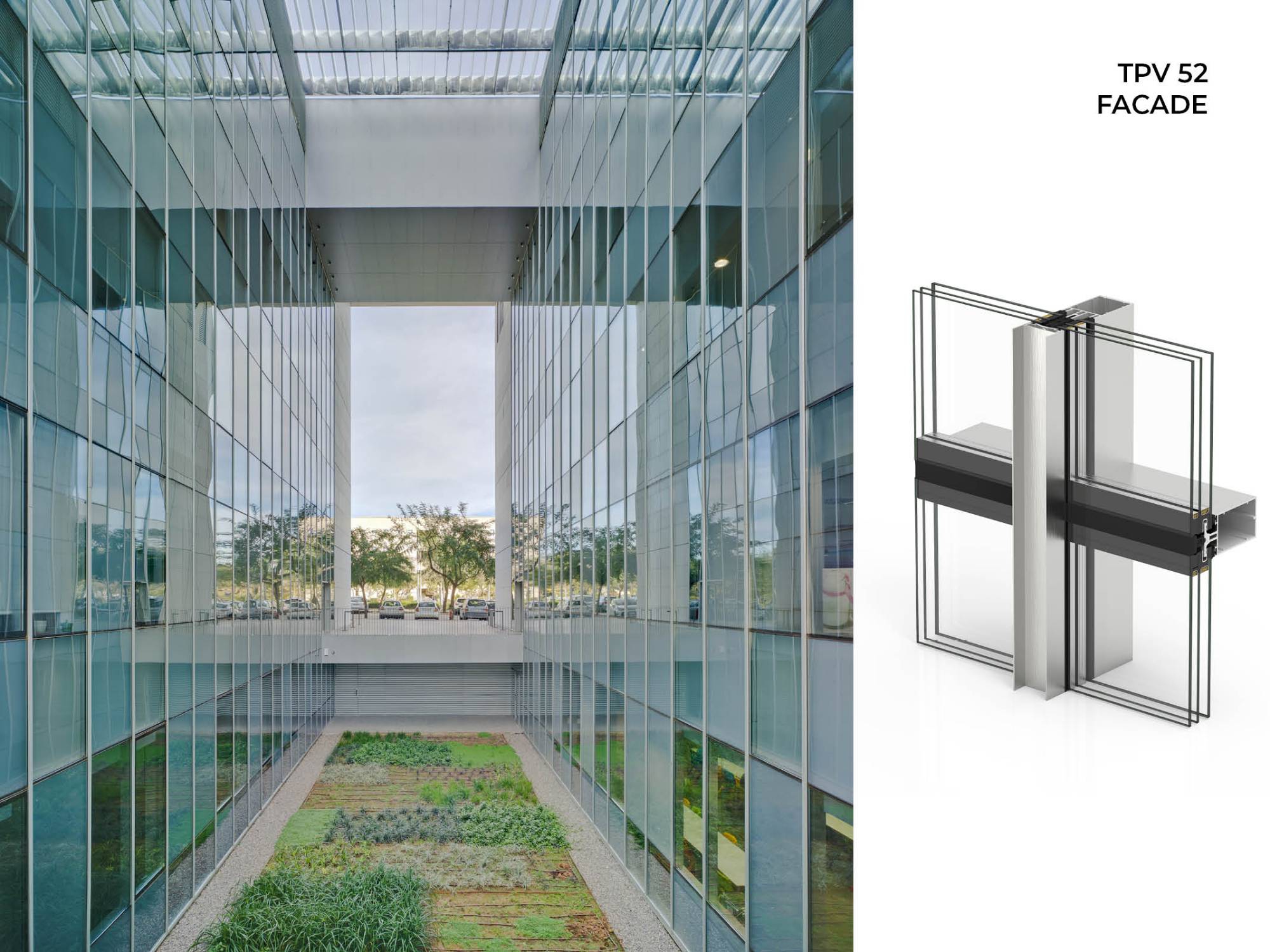

Self-supporting stick aluminium curtain wall system with a sight line of 52 mm.

Jump to:
+44 (0)7494 66 2507 www.cortizo.com
Description

Self-supporting stick aluminium curtain wall system composed by a grid of mullions and transoms with a sight line of 52 mm. The glazing is supported in the vertical dimension using a pressure plate hidden by a cover cap; in the horizontal dimension, the units are fixed by clips in the perimeter or the glasses are covered by a strip of silicone in the gap between units. Facade system certified by CWCT British Standard.

Features and benefits:

  • Curtain wall stick system composed of a grid of mullions and transoms constructed from aluminium alloy 6063 T6.
  • A pressure plate compresses the perimeter of the glazing in the vertical dimension, fixing it to the mullions; vertical cover caps hide these pressure plates. Different shapes for these cover caps are available (please consult manufacturer for information).
  • In the horizontal dimension, the glazing is fixed to the transoms by using clips in their perimeter. These clips are covered by a strip of silicone to be placed in the gap between glasses (optionally dry gasket) to ensure the water tightness of the system.
  • Attachment of horizontal profiles is set through unions performed with transom connectors fitted with dilatation joints.
  • Thermal bridge break is set by stackable isolators constructed from polyvinyl chloride (PVC) which allow the different glazing thickness.
  • Optional internal reinforcement profiles for configurations with high mechanical requirements.
  • Optional complementary elements such as solar protection louvres fixed by brackets may be added to the curtain wall in the exterior.

General information

Size

As drawing

Insert reference.

As schedule

Insert reference.

Material

Aluminium alloy 6063 T6 profiles

Uniclass 2015

Ss_25_10_20_85 Stick curtain walling systemsPrimary

CAWS

H11/110 Curtain walling

Specification data - Stick curtain walling systems

Product Reference

Curtain Wall System Cortizo TPV-52

Size

As drawing

Insert reference.

As schedule

Insert reference.

Glazing

Insert requirement, maximum thickness of 64 mm for fixed lights.

Opening elements

Not required

Fixed.

Hidden parallel projecting

Hidden top hung

Finish

-

FinishType

Anodized

15–25 μ dependent on the class (Class 15, Class 20, Class 25), guaranteed by EWAA-EURAS Standard.

Polyester powder coated

Insert requirement, quality guaranteed by QUALICOAT Standard, with a thickness in the interval between 60–100 μ.

Colour

Insert requirement or insert 'Not applicable' for Anodized.

Reinforced profiles

Not required

Required

Gasket

Dry

Silicone

Standard.

Fixing brackets

Insert requirements, contact manufacturer for information.

Accessories

Insert requirements, contact manufacturer for information.

Standard product features

Material:

Aluminium alloy 6063 T6 profiles.

Profile thickness:

  • Mullions: 2.1–3 mm.
  • Transoms: 2.1 mm.

Sight line:

52 mm (mullions and transoms).

Silicone gap thickness:

22 mm.

Maximum glass unit weight:

750 kg.

Gaskets:

Water-tightness is ensured by a set of cuttable joints constructed from ethylene-propylene diene monomer (EPDM), with the possibility of using vulcanized corner cleats in the junction between mullions and transoms, and the use of a butyl strip between the pressure plate and the glazing (in the vertical dimension).

Drainage system:

Composes up to three levels of drainage, allowing the evacuation of potential condensation water from the transoms through the mullion channels to finally drain using deflector blocks (pipettes) as elements of evacuation.

Thermal transmittance:

  • Mullions and transoms (Uf): ≥0.9 W/m²K.
  • Curtain wall (Ucw): ≥0.6 W/m²K.

Performance (based on nine panels, 3 x 3.5 m):

  • Air permeability (to BS EN 12152): Class AE.
  • Water tightness (to BS EN 12154): Class RE1500.
  • Wind resistance (to BS EN 13116): Complies (Design wind load 2000 Pa/ security wind load 3000 Pa).

Product Options

Opening elements:

All opening elements have structurally bonded glass and the water-tightness is ensured by an ethylene-propylene diene monomer (EPDM) joint system. Friction stays are constructed from stainless steel, allowing maximum dimensions of:

  • Hidden parallel projecting: 2000 x 3000 mm (w x h), 200 kg maximum weight.
  • Hidden top hung: 2500 x 2500 mm (w x h), 180 kg maximum weight.

Fixing brackets:

Connection of the curtain wall to the substructure is performed using aluminium fixing brackets. Different configurations are available including bottom fixing brackets, head fixing brackets, fixed and sliding bearing point brackets, etc. Contact manufacturer for more information.

Third party certifications
  • CWCT: Certified
