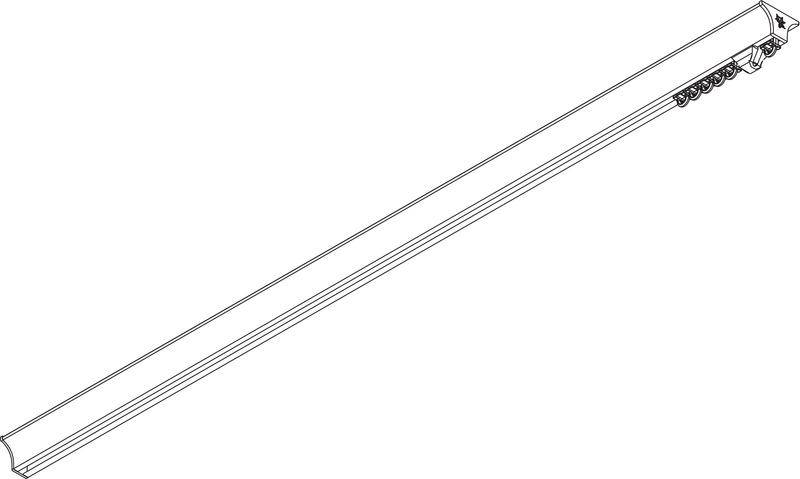

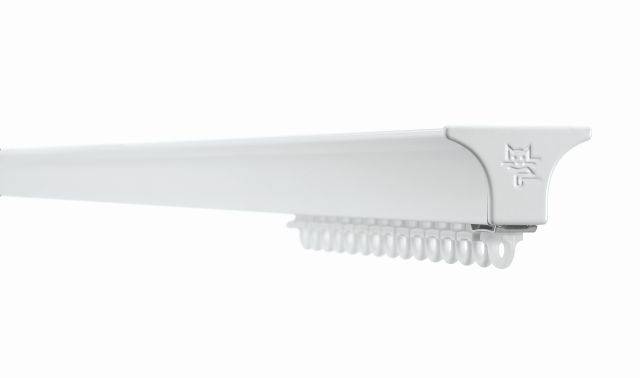

Curtain Track - Hand Operated - Silent Gliss SG 6820 - Curtain Track
Verified by manufacturer 2 months ago
Quiet Mark Certification
Certificate type
Hand operated curtain track for light to medium weight curtains.
Application
Suitable for light to medium weight curtains.
Description
A track for light to medium weight curtains, designed to be fixed directly to the ceiling.
Features:
- Track can be bent to 270 mm radius (minimum).
- Gliders are normally fitted 16 per metre.
- Special ceiling brackets allow for a special 'push-click-fit'.
General information
Color | White |
Finish | Powder-coated |
Material | Aluminium |
Shape | Trapezoid |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Five year |
Uniclass | |
CAWS | N10/60 Curtain supports N10/230 Curtain supports |
SKU Code | Silent Gliss SG 6820 |
Product range |
Specification data - Window curtain supports
Classification data | |
Overall length | 6 m. Guidance for specification option: Standard length (White only). |
Material | Aluminium. |
Colour/ Finish | White, powder coated. |
Fixings | Ceiling fixing brackets. Guidance for specification option: (Ref SG 11236) track fixing brackets to be at approximately 500 mm centres. |
Standard accessories | Not required. 8 x 25 mm roundhead screws. End cover (Ref 6823). End stop (Ref SG 6065). 2C Gliders (Ref SG 11300 - Strip form x 20 Ref SG 11301). |
Other accessories | Not required. Curtain hooks (Ref SG 3571/ SG 3582/ SG 3599). Draw rod 50 cm (SG 10430). Draw rod 75 cm (SG 10431). Draw rod 100 cm (SG 10432). Draw rod 125 cm (SG 10433). Draw rod 150 cm (SG 10434). End stop (Ref SG 6007). Roller Gliders (Ref SG 6098/ SG 6283). Spring stop (Ref SG 6053). Spring stop (Ref SG 6086). Adjustable brake (Ref SG 2255). Wave roller glider (Ref SG 6099). Wave heading tape (Ref SG 6349). Wave top hemming tape (Ref SG 6363). Wave extension arm (Ref SG 6364). Wave Hanger (Ref SG 6365). Wave carrier for draw rod (Ref SG 6366). Lead weight for curtain (Ref SG 10075). Wave 2C glider cord 80mm (Ref SG 11302). Wave 2C glider cord 60mm (Ref SG 11303). Fabric weight (Ref SG 10076). |
Track profile | 34 x 21 mm. Guidance for specification option: (Overall width x depth). |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 25% |
Product certifications
Quiet Mark Certification
Silent Gliss Hand Op Curtain Track Quiet Mark Certificate 2022
