Curtain Track - Hand Operated - Silent Gliss SG 1021 - Curtain Tracks
Verified by manufacturer 27 days ago
Hand operated track for lightweight curtains.
Application
Suitable for light curtains and nets.
Description

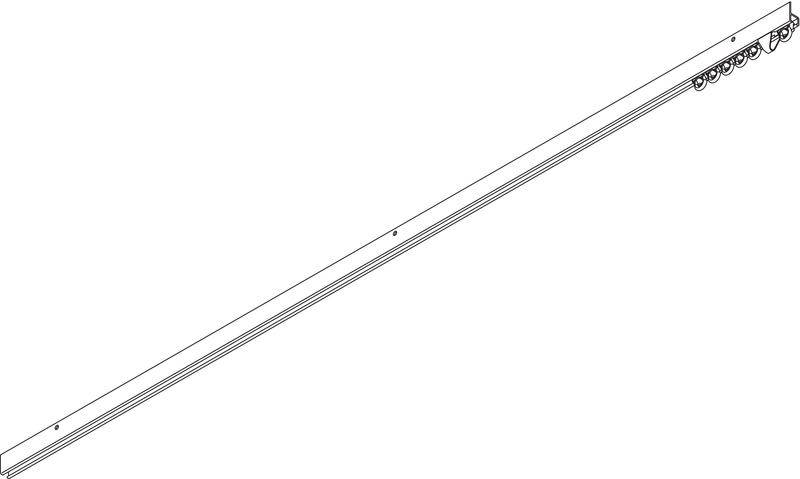

A wall mounted track, designed for fixing to timber fascias.
Features and benefits:

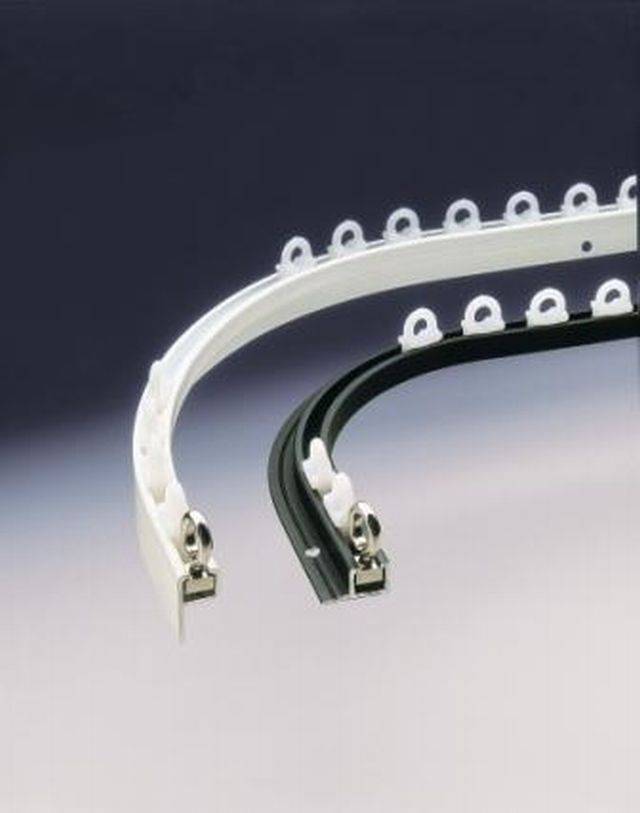

- Track can be bent to 60 mm radius (minimum), 100 mm radius (standard), and can also be bent to suit arched soffits.
- Pre-drilled at 300 mm centres.
- Gliders are normally fitted 16 per metre.
General information
Color | White |
Finish | Powder-coated |
Material | Aluminium |
Length | 5000 mm 6000 mm |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | N10/60 Curtain supports N10/230 Curtain supports |
Product range |
Specification data - Window curtain supports
Classification data | |
Support | Curtain tracks. |
Opening dimensions | 8.2 x 14 mm. Manufacturer guidanceWidth x depth. |
Overall length | 5 m. Guidance for specification option: (Silver only). 6 m. Guidance for specification option: (All colours). Manufacturer guidanceStandard length. Tracks can be joined using connectors. |
Material | Aluminium. |
Finish | Powder coated. |
Colour | White. |
Execution | Installing curtain supports. |
Colour/ Finish | White powder coated. |
Fixing | 12 mm roundhead screws. Guidance for specification option: Ref 6835A. 24 mm roundhead screws. Guidance for specification option: Ref 6835A. Pozidrive screws. Guidance for specification option: Ref 6835C. Manufacturer guidanceFix to timber fascia at every fixing hole in track (approx. 300 mm centres). |
Standard accessories | End stop Ref 3016. Gliders in strip form (20 No. 3533) Ref 3534. |
Other accessories | Not required. Aluminium draw rod Ref 4092S. Curtain hooks Ref 3571/ 3582/ 3599. Gliders Ref 3533/ 3511. Loop tape Ref 3068. Plastic draw rod Ref 4092. Retrofit gliders Ref 3548. Rotating gliders Ref 3570. Screw twist end stop Ref 3071. Side mounted gliders/hooks Ref 3580. Spring stop Ref 3032. Standard tape Ref 3562. Twist eye end stop Ref 3070. |
Sustainability data
Material | Aluminium |
Literature
Hand Operated Curtain Tracks Technical Catalogue by Silent Gliss
