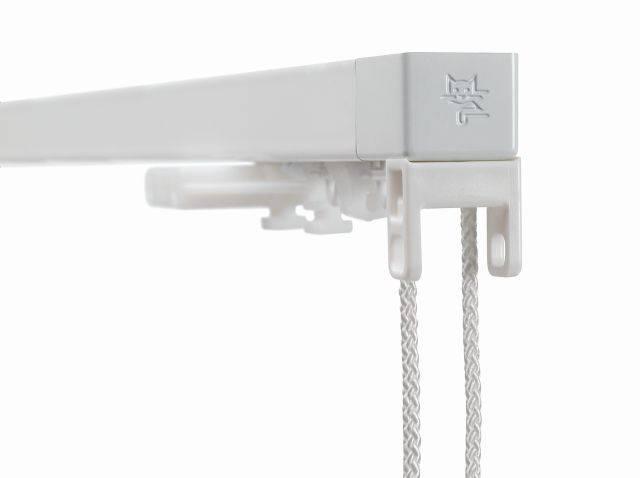

Square profile curtain track for light to medium weight curtains.
Application
Curtain track suitable for light to medium-weight curtains.
Description

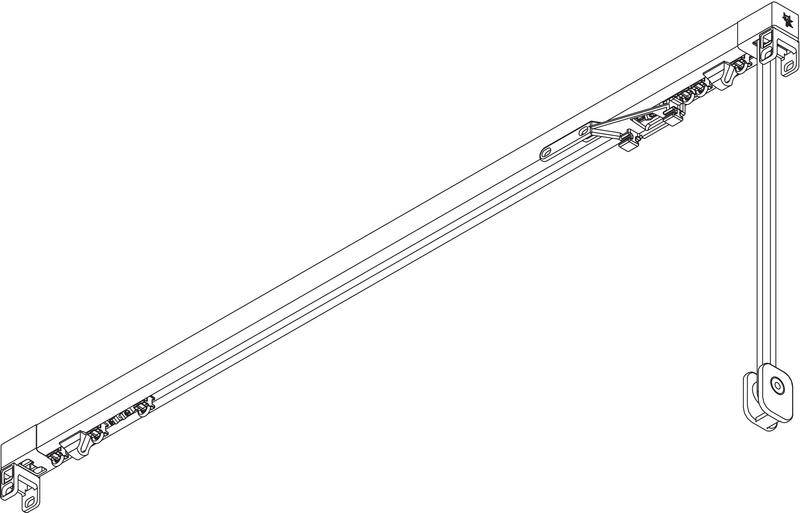

Square profile curtain track for wall or ceiling mounted track that can also be used as a room divider as the track looks the same from both sides.
Features and benefits:
- Curtain track can be bent to 260 mm radius (minimum).
- Standard cord drop: 1500 mm, right hand pull.
- Curtain track gliders are normally fitted 14 per metre.
- Curtain track recess profile available Ref SG 11230.
- Curtain track available with Wave curtain heading.
General information
Color | Beige Black Bronze Brown Cream |
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 15 year |
Uniclass | |
CAWS | N10/60 Curtain supports N10/230 Curtain supports |
SKU Code | SG 3870 |
Product range |
Specification data - Window curtain supports
Classification data | |
Support | Curtain tracks. |
Overall length | 6 m (maximum). Manufacturer guidanceMaximum length - made to measure. Insert requirements. |
Material | Aluminium. |
Colour | White. Black. Matt White. Silver. Anodic Grey. Antique Bronze. Charcoal. |
Execution | Installing curtain supports. |
Colour/ Finish | Anodic grey powder coated. Antique bronze powder coated. Black powder coated. Charcoal powder coated. Matt white powder coated. Silver anodized. White powder coated. |
Fixing | Wall fixing extension brackets (Ref 11200 and 3286). Guidance for specification option: 52 mm projection to outer face of track. Wall fixing extension brackets (Ref 11201 and 3286). Guidance for specification option: 72 mm projection to outer face of track. Wall fixing extension brackets (Ref 11202 and 3286). Guidance for specification option: 92 mm projection to outer face of track. Wall fixing extension brackets (Ref 11203 and 3286). Guidance for specification option: 92 mm projection to outer face of track. Wall fixing extension brackets (Ref 11204 and 3286). Guidance for specification option: 112 mm projection to outer face of track. Wall fixing extension brackets (Ref 11205 and 3286). Guidance for specification option: 192 mm projection to outer face of track. Wall fixing extension brackets (Ref 11210 and 3286). Guidance for specification option: 52 mm projection to outer face of track. Wall fixing extension brackets (Ref 11211 and 3286). Guidance for specification option: 72 mm projection to outer face of track. Wall fixing extension brackets (Ref 11212 and 3286). Guidance for specification option: 92 mm projection to outer face of track. Wall fixing extension brackets (Ref 11213 and 3286). Guidance for specification option: 112 mm projection to outer face of track. Wall fixing extension brackets (Ref 11214 and 3286). Guidance for specification option: 142 mm projection to outer face of track. Wall fixing extension brackets (Ref 11215 and 3286). Guidance for specification option: 192 mm projection to outer face of track. Wall fixing universal extension brackets (Ref 11154 and 3286). Guidance for specification option: 102-130 mm projection to outer face of track. Wall fixing universal extension brackets (Ref 11155 and 3286). Guidance for specification option: 132-160 mm projection to outer face of track. Wall fixing universal extension brackets (Ref 11156 and 3286). Guidance for specification option: 182-210 mm projection to outer face of track Wall fixing extension brackets (Ref 11200 and 3832). Guidance for specification option: 70 mm projection to outer face of track. Wall fixing extension brackets (Ref 11201 and 3832). Guidance for specification option: 90 mm projection to outer face of track. Wall fixing extension brackets (Ref 11202 and 3832). Guidance for specification option: 110 mm projection to outer face of track. Wall fixing extension brackets (Ref 11203 and 3832). Guidance for specification option: 130 mm projection to outer face of track. Wall fixing extension brackets (Ref 11204 and 3832). Guidance for specification option: 160 mm projection to outer face of track. Wall fixing extension brackets (Ref 11205 and 3832). Guidance for specification option: 210 mm projection to outer face of track. Wall fixing extension brackets (Ref 11210 and 3832). Guidance for specification option: 70 mm projection to outer face of track. Wall fixing extension brackets (Ref 11211 and 3832). Guidance for specification option: 90 mm projection to outer face of track. Wall fixing extension brackets (Ref 11212 and 3832). Guidance for specification option: 110 mm projection to outer face of track. Wall fixing extension brackets (Ref 11213 and 3832). Guidance for specification option: 130 mm projection to outer face of track. Wall fixing extension brackets (Ref 11214 and 3832). Guidance for specification option: 160 mm projection to outer face of track. Wall fixing extension brackets (Ref 11215 and 3832). Guidance for specification option: 210 mm projection to outer face of track. Wall fixing universal extension brackets (Ref 11154 and 3832). Guidance for specification option: 102-148 mm projection to outer face of track. Wall fixing universal extension brackets (Ref 11155 and 3832). Guidance for specification option: 150-178 mm projection to outer face of track. Wall fixing universal extension brackets (Ref 11156 and 3832). Guidance for specification option: 200- 228 mm projection to outer face of track. |
Bracket colour | Silver. White. Matt White. Black. Charcoal. Anodic Grey. Antique Bronze. |
Standard accessories | 3.5 mm diameter cord (Ref 3090). 19 mm (8 no) countersunk screws (Ref 1148C). Gliders in strip form (20 No. 11300 - Ref 11301). Overlap (Ref 6288). Spring stop (Ref 6086). Safety cord retainer (Ref 10400). Guide set (11285). |
Other accessories | Not required. Connecting bridge (Ref 3820). Curtain hooks (Ref 3571/ 3582/ 3599). Intermediate pulley (Ref 3833). Pulley set, complete with pilot runners (Ref 3846). Metal overlap (Ref 6063). Roller gliders (Ref 6098). Retrofit gliders (Ref 3548). Spring stop (Ref 6053). Screw twist end stop (Ref 6064). 2C Wave glider cord 60 mm (Ref 11303). 2C Wave glider cord 80 mm (Ref 11302). Adjustable brake (Ref 2255). Wave curtain tape (Ref 6349). Wave top hemming tape (Ref 6363). Wave extension arm (Ref 6364). Wave hanger (Ref 6365). Wave carrier draw rod (Ref 6366). Wave lead weight (Ref 10075). Wave fabric weight (Ref 10076). Wave roller glider (Ref 6099). |
Track profile | 22 x 20 mm. Manufacturer guidance(Width x depth). |
Fixing: | Top/ ceiling fix. Face/ wall fix. Manufacturer guidanceTrack fixing brackets to be at approximately 500 mm centres. Fix nylon ceiling clamps Ref 3826 to extension brackets with M4 x 8 mm screws. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
