Description

C and D profile handles for washroom cubicle doors.

General information
Uniclass 2015
Pull handles (Pr_30_36_59_64)Primary
Specification data - Pull handles
Product Reference

0182203

D profile door handle, brushed satin stainless steel.

0182208

D profile door handle, polished stainless steel.

0302511

D profile door handle, brushed stainless satin finish stainless steel.

0500101

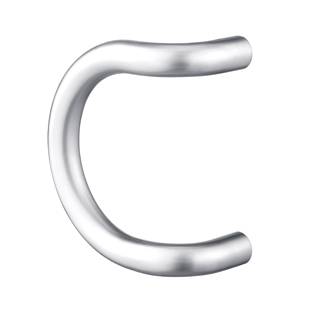

C profile door handle, polished anodized aluminium.

0500102

C profile door handle, light grey powder coated aluminium.

0500103

C profile door handle, dark grey powder coated aluminium.

Product Options

– 0182203:

  • D profile cubicle door handle designed to meet all Building Regulations (E&W) Approved Document M requirements.
  • Material: Brushed satin finish stainless steel.
  • Diameter: 19 mm.
  • Height: 500 mm (including 50 mm diameter cover plates).
  • Offset from door face: 60 mm.
  • Fixing: Countersunk pozi head machine screws.
  • Fixing centres: 400 mm.

– 0182208:

  • D profile cubicle door handle designed to meet all Building Regulations (E&W) Approved Document M requirements.
  • Material: Polished stainless steel.
  • Diameter: 19 mm.
  • Height: 500 mm (including 50 mm diameter cover plates).
  • Offset from door face: 60 mm.
  • Fixing: Countersunk pozi head machine screws.
  • Fixing centres: 400 mm.

– 0302511:

  • D profile cubicle door handle designed to meet all Building Regulations (E&W) Approved Document M requirements.
  • Material: Brushed satin finish stainless steel.
  • Size (w x h): 19 x 619 mm.
  • Offset from door face: 65 mm.
  • Fixing: Through door, back to back concealed fixings for pairs of handles.

– 0500101:

  • C profile door handle, polished anodized aluminium.
  • Diameter: 25 mm.
  • Size (w x h): 150 x 175 mm.
  • Offset from face of door: 80 mm.
  • Fixing: Through door, back to back concealed fixings for pairs of handles.

– 0500102:

  • C profile door handle, light grey powder coated aluminium.
  • Diameter: 25 mm.
  • Size (w x h): 150 x 175 mm.
  • Offset from face of door: 80 mm.
  • Fixing: Through door, back to back concealed fixings for pairs of handles.

– 0500103:

  • C profile door handle, dark grey powder coated aluminium.
  • Diameter: 25 mm.
  • Size (w x h): 150 x 175 mm.
  • Offset from face of door: 80 mm.
  • Fixing: Through door, back to back concealed fixings for pairs of handles.
