Cube™
Verified by manufacturer 2 months ago
Cube™ 12 mm
Cube™ 12 mm
Declare
Certificate type
Green Tag
Certificate type
HPDC Certification
Certificate type
VOC Content test Certificate
Certificate type
Versatile acoustic panel
Application
Wall and Ceiling mounting - for education, retail and commercial interiors, media for creative solutions, acoustic pin-board surface for education and commercial sectors.
Description
A lightweight but semi-rigid panel made from compressed polyester felt that has endless design flexibility. In standard panel sizes with options of 12 mm or 24 mm thicknesses, Cube™ works hard to reduce reverberation and control background chatter.
Features and benefits:
- Delivers excellent acoustic performance
- Solid colour and smooth finish, with no edging or capping required
- Highly durable, providing long-term stability and performance
- A versatile medium that is highly customisable
- Adds depth and texture, unlike paint
- Sophisticated colour palette
- Simple installation
- Carbon neutral
- Made locally
General information
Color | Beige Black Blue Cream Gold Manufacturer guidanceRange of colours available. |
Finish | Smooth |
Material | Polyester fibre (PET) |
Shape | Rectangle |
Length | 2400 mm |
Width | 1200 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | K13/170 Acoustic panel lining N10/195 Noticeboards |
Specification data - Sound attenuator infill units
Form | Panel. |
Rigidity | Semi rigid. |
Application | Wall mounting.Guidance for specification option: Decorative and functional acoustic wall covering for education, retail and commercial interiors, media for creative solutions, acoustic pin-board surface for education and commercial sectors, modular room divider for display, privacy and sound absorption, free-standing or direct fix acoustic panel |
Material | Polyester fibre (PET). |
Material density | 200 kg/m³. |
Acoustic performance | |
Purpose | Absorber. |
Sound absorption | Class D to BS EN ISO 11654.Guidance for specification option: Without 24 mm air gap. NRC = 0.45 (no air gap) Class C to BS EN ISO 11654.Guidance for specification option: With 24 mm air gap. NRC = 0.70 (with 25 mm air gap). |
Fire performance | |
Reaction to fire | To BS EN 13501-1, Class B-s2,d2. |
VOC emissions | 0.092 mg/m³.Guidance for specification option: CDPH Standard Method v1.2-2017: after 14 days, office room scenario. |
Dimensions | |
Size (length x width) | 1200 x 2400 mm. |
Thickness (overall) | 12 mm. |
Profile | Geometric profile. |
Edges | Square. |
Surface pattern | Solid. |
Colour | Acros.Bosco.Empire.Fallingwater.Flatiron.Ironbank.Opera.Petronas.Pinnacle.Savoye.Senado.Zenith. |
Accessories | Fittings for wall mounting. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Polyester fibre (PET) |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.89 kg CO₂ eq/kg Self declared |
Recyclability | 100 Guidance for specification option: Global GreenTag GreenRate Level A, Declare certified LBC Red List Free, Low VOC and formaldehyde emissions, Contains minimum 60% recycled polyester fibre, 100% recyclable, ISO 14001 certified Environmental Management System (EMS). |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % Guidance for specification option: Minimum 60% post-consumer recycled PET material. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 3 |
 IFC | IFC2X3 | 2 |
Third party certifications
Declare
Declare - APA, ASL, Accent, Cube™, Frontier™, Grid Ceiling Tiles, Horizon™, Press Panels, Quietspace® Panel
Green Tag
Environmental Product Declaration - Cascade™, Cube™, Frontier™, Groove, Horizon™, Lanes™, Lattice™, and Vicinity™
Green Tag
Global Green Tag - Cascade™, Composition®, Cove™, Cube™, Frontier™, Grid Ceiling Tiles, Groove, Horizon™, Lanes™, Lattice™, Symphony®, Vicinity™, and Vertiface®
HPDC Certification
Health Product Declaration - Cube™, Cascade®, Frontier®, Horizon™, Grid Ceiling Tiles, Cove™/Loch™, Lattice™, and Vicinity™
VOC Content test Certificate
Volatile Organic Compound Test Certificate
Literature
Cube Lookbook
Cube Datasheet
Cube Install Instructions

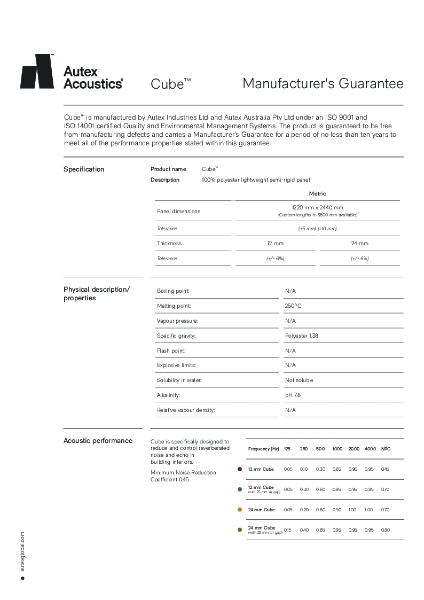

Cube Manufacturers Guarantee
Colour Guide
