CS Supertrak® Plus Cubicle Curtain Track
Description

An aluminium cubicle curtain track system, available in a range of finishes.

General information

Finish

Powder coated, White RAL 9003

Standard finish.

Powder coated, Grey RAL 7040

Standard finish.

Powder coated, BS ___

Subject to quantity.

Powder coated, RAL ___

Subject to quantity.

Powder coated, colour ___

Subject to quantity.

Features

The rigid and durable structure provides flexible configurations to satisfy individual requirements

Enables curtains to be changed easily - glides and hooks attached to the curtain are loaded through a runner access point in the track from one position

Safety release mechanism available as an option

Conforms to HTM66

Uniclass 2015

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/230 Curtain supports

Specification data - Window curtain supports

Product Reference

CS Supertrak® Plus

Finish

Powder coated, White RAL 9003

Standard finish.

Powder coated, Grey RAL 7040

Standard finish.

Powder coated, BS ___

Subject to quantity.

Powder coated, RAL ___

Subject to quantity.

Powder coated, colour ___

Subject to quantity.

Fixing

Direct soffit fixing

STA-016 Rod Suspender

STA-019 Wall Bracket

STA-020 Parallel Wall Bracket

STA-021 Adjustable Wall Bracket

Standard product features

Features:

  • The rigid and durable structure provides flexible configurations to satisfy individual requirements.
  • Enables curtains to be changed easily - glides and hooks attached to the curtain are loaded through a runner access point in the track from one position.
  • Safety release mechanism available as an option.
  • Conforms to HTM66.

Applications:

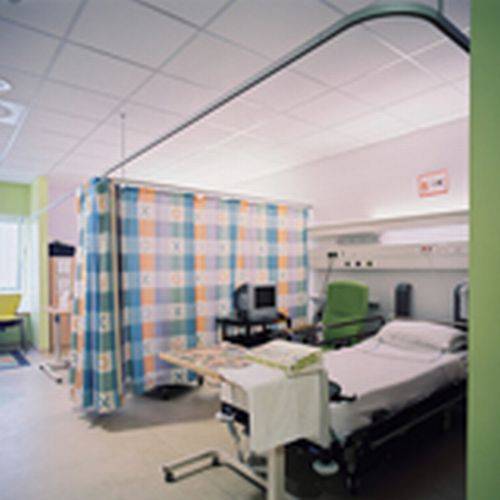

Hospitals, health centres, nursing homes and hotels.

Product Options

Layouts:

Fittings are available to suit a wide range of bed layouts, from single to multiple.

Track options:

  • Straight sections are available in a choice of 3 or 4 metre lengths, with or without pre-drilled runner access points.
  • Bends 90 and 135 degree bends are standard and are available in left and right hand side options.

Fixing options:

  • Direct ceiling fixing by means of concealed screws located at 1000 mm centres. Note: direct ceiling fixing does not require Wall Brackets, Overlapping Joints or Junctions, but the track will require End Caps to close off any open ends.
  • Rod suspender, ref: STA-016: An aluminium rod attached to the track and fixed to the soffit above the suspended ceiling.
  • Wall bracket, ref: STA-019: Used in a suspended system to fix the track to the wall at 90°.
  • Adjustable wall bracket, ref: STA-021 is available where the angle between wall and track is not 90°.
  • Parallel wall bracket, ref: STA-020: Used where support is required when the track end returns parallel to a wall.

Track components and accessories:

  • End cap, ref: STA-007: Used to close off track end.
  • Runner access button, ref: STA-005: allows for easy access when inserting or removing curtains; can be supplied with the track lengths or purchased separately.
  • Junction, ref: STA-013: For linking adjacent cubicles where a return is necessary at the front of the track.
  • T-piece, ref: STA-014: Acts as a junction where tracks are joined at 90°.
  • Overlapping joint, ref: STA-015: Supports adjoining cubicles at front of track.
  • Inner connecting piece, ref: STA-012: Used to connect sections of track.
  • Glide with hook, ref: STA-006: Manufactured from self lubricating nylon.

Finishes:

  • Standard finish: Powder coated to White RAL 9003 or Grey RAL 7040.
  • Optional finishes subject to quantity: Powder coated in any BS, RAL or custom colour.
