CS - Asymmetric Bike Shelters

Verified by manufacturer 6 months ago

CS10

urbanspec Variant:
Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • Constructionline

    Constructionline

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • smas WORKSAFE

    smas WORKSAFE

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

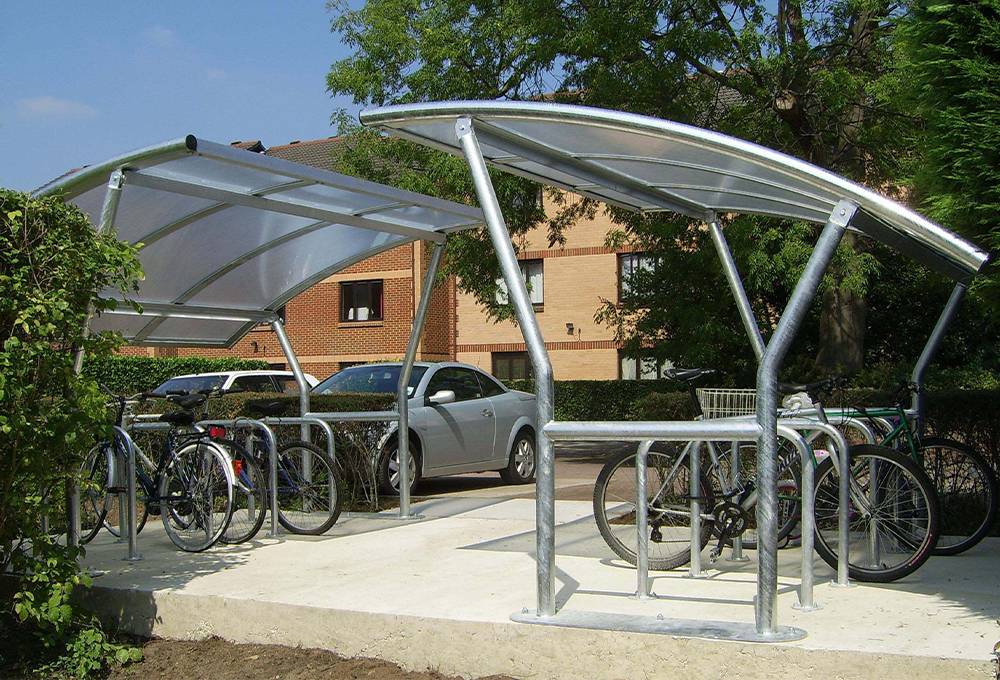

A clear span, open canopy cycle shelter.

Jump to:
01227 200404 Website

Application

Suitable for providing a sheltered cycle parking area.

Description

urbanspec CS can be used as either a standalone shelter or as a series of shelters forming a cycle compound with central ‘flying roof’ panels added for additional weather protection between shelters.


Features and benefits:

  • UV protected multiwall polycarbonate roof panels with aluminium glazing system combine clean aesthetics.
  • Long service life.
  • The all-steel framework has a hot dip galvanised finish as standard with customisation options including colour powder coated frames and racks, custom laser cut logo to end frames and LED lighting.
  • urbanspec CS provides a 2700mm cover width for a single row of bikes with standard ‘sheffield’ type stands

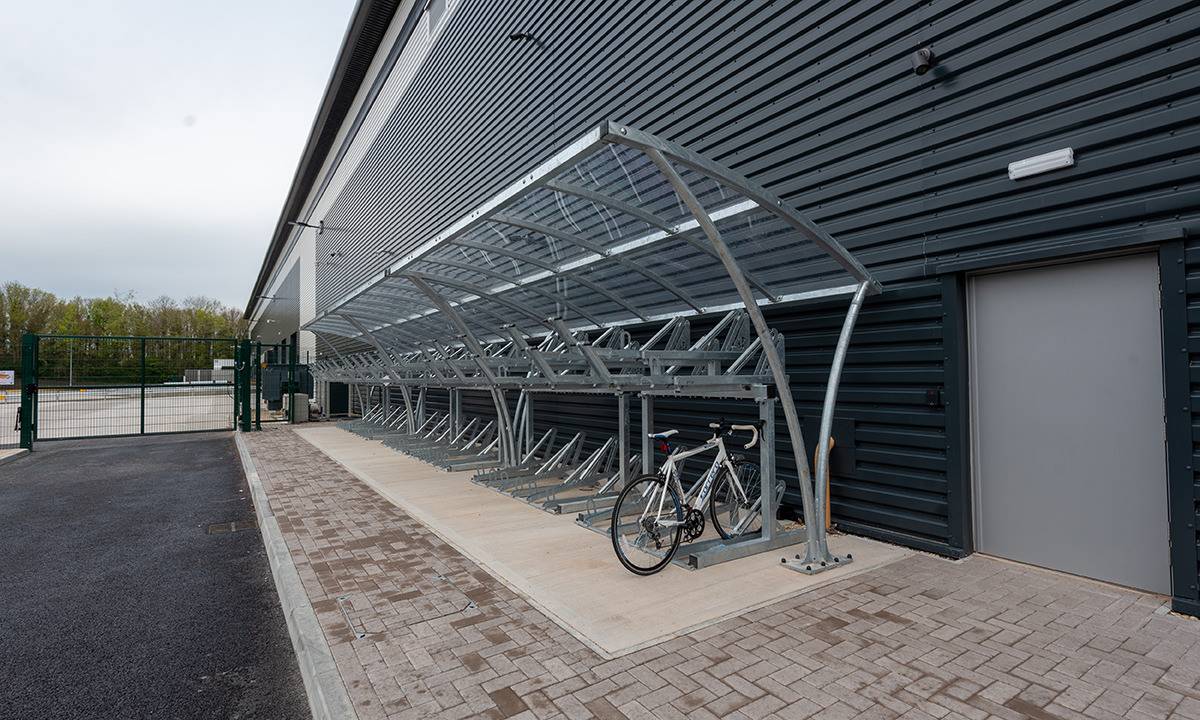

  • urbanspec CST model accommodates two-tier cycle racks
  • Custom dimensions can be accommodated as a special build.
  • The radius steel support structure has a central base plate design that can be specified for either surface fix or subsurface ground fixings.

General information

Color

Other

Finish

Galvanized

Powder-coated

Material

Steel

Polycarbonate

Shape

Rectangle

Width

4180 mm

5180 mm

Height

2363 mm

2791 mm

2815 mm

Uniclass

Pr_20_65_78_58 Open-sided sheltersPrimary

CAWS

B91/340 Cycle shelter

B91/385 Shelter

B91/330 Canopy

Specification data - Open-sided shelters

Shelter description

Single row asymmetric cycle shelters.

Dimensions

-

Plan size

500 x 4180 mm.

Guidance for specification option:

(Base depth x base width).


Top depth: 2730 mm.

Top width: 4010 mm.

Height

2360 mm (front); 1743 mm (rear).

Frame

-

Material

Structural steel.

Finish

Galvanized.

Powder-coated.

Bespoke.

Guidance for specification option:

Customization options include colour powder coated frames and racks, bespoke laser cut logo to end frames.

Colour

-

Manufacturer guidance

CENTAUR CS has a hot dip galvanized frame finish as standard and this is a coating that is highly durable in all environments. An optional powder coated finish can be selected from a choice of RAL colors together with coordinated cycle stands. Images are for illustrative purposes only. Consult manufacturer.

Roof covering

UV protected multiwall polycarbonate roof panels with aluminium glazing system.

Accessories

Not required.

LED lighting.

Laser cut logo.

Fixing

Baseplate, surface fixed.

Baseplate, subsurface ground fixings.

Stand type

Sheffield, rail fix (toast rack).

Guidance for specification option:

Stands are surface mounted to ground fix steel rails.

Sheffield, baseplate.

Guidance for specification option:

Integral base plates for individual ground fixing.

Sheffield, root fix.

Guidance for specification option:

Stands are cast into concrete below ground.

Storage

Ten cycles.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Steel

Polycarbonate

Manufacturing plant location

Recyclability

All non-production steel is 100% recycled and separated at source from fabrication and sheet metal processes.
All timber cladding products are sustainably sourced and certified with non-production material separated at source for 100% recycling.

Guidance for specification option:

All non-production steel is 100% recycled and separated at source from fabrication and sheet metal processes.

All timber cladding products are sustainably sourced and certified with non-production material separated at source for 100% recycling.

Expected Life

Ten year

Third party certifications

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001:2015 Environmental Management System

Constructionline

Constructionline

Constructline Gold Member

CHAS

CHAS

CHAS Advanced

Alcumus SafeContractor

Alcumus SafeContractor

Alcumus SafeContractor

smas WORKSAFE

smas WORKSAFE

smas WORKSAFE

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System

Literature

CS Single Row Asymmetric Bike Shelters Data Sheet

CS Single Row Asymmetric Bike Shelters Data Sheet

CST Single Row Two Tier Asymmetric Bike Shelters Data Sheet

CST Single Row Two Tier Asymmetric Bike Shelters Data Sheet
