CS Allway® Gasketed Floor Joint Covers - Surface Mounted
Description

Surface mounted interior floor expansion joint covers, incorporating a dual durometer thermoplastic rubber gasket. Available in a range of joint width and gasket colour options. Can be used with moisture, acoustic or fire barriers.

Features:

  • Floor to floor joint covers comprise horizontal plates each side of gasket.
  • Floor to wall joint covers have one plate at a right angle to the other.
  • No blockout required.
  • Replaceable gasket - available in lengths up to 30 m.
  • Screw fixed - fixings by others.
  • Smooth, easy clean surface.

General information
Features

Floor to floor joint covers comprise horizontal plates each side of gasket

Floor to wall joint covers have one plate at a right angle to the other

No blockout required

Replaceable gasket - available in lengths up to 30 m

Screw fixed - fixings by others

Smooth, easy clean surface

Material

Aluminium sections, clear anodized except for GFPS and GFPSW models where the side frame is supplied in mill finish

Uniclass 2015
Pr_35_90_53_53 Metal section movement jointsPrimary
Specification data - Metal section movement joints
Product Reference

CS Allway® Gasketed Floor Joint Covers - Surface Mounted

Joint width

up to 20 mm

up to 25 mm

up to 50 mm

Type

GFPS-80

GFPS-100

GFPS-200

GFPSW-80

GFPSW-100

GFPSW-200

GFS-80

GFS-100

GFS-200

GFSW-80

GFSW-100

GFSW-200

Gasket colour

Black

Greige

Grey

White

Standard product features

Material:

Aluminium sections, clear anodized except for GFPS and GFPSW models where the side frame is supplied in mill finish.

Load capacity:

250 kg point load.

Product Options

Joint cover types:

- GFS series:

  • Easy to install surface mounted floor joint.
  • Joint width: 20 mm (GFS-80), 25 mm (GFS-100) or 50 mm (GFS-200).
  • Exposed widths: 105 mm (GFS-80), 111 mm (GFS-100), 129 mm (GFS-200).
  • Horizontal thermal movement: GFS-80 ±3 mm, GFS-100 ±5 mm, GFS-200 ±10 mm.
  • If other types of movement are required, contact Construction Specialties (UK) Ltd for details.
  • Complementary wall/ ceiling joint covers: FGFS-80, -100 or -200.

- GFSW series:

  • Floor to wall version of GFS.
  • Joint width: 20 mm (GFSW-80), 25 mm (GFSW-100) or 50 mm (GFSW-200).
  • Exposed widths: 62 mm (GFSW-80), 67 mm (GFSW-100), 90 mm (GFSW-200).
  • Horizontal thermal movement: GFSW-80 ±3 mm, GFSW-100 ±5 mm, GFSW-200 ±10 mm.
  • If other types of movement are required, contact Construction Specialties (UK) Ltd for details.
  • Complementary wall/ ceiling joint covers: FGFS-80, -100 or -200.

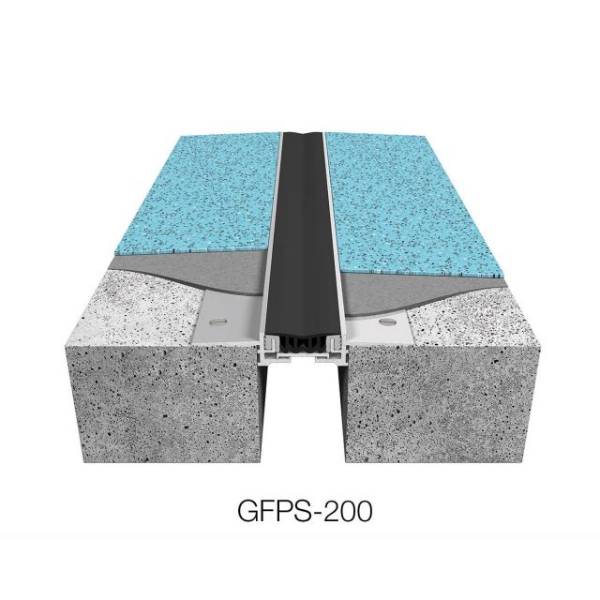

- GFPS series:

  • An alternative to GFS joint covers where the exposed aluminium frames are recessed to take a 5 mm thick carpet or vinyl floor finish.
  • Joint width: 20 mm (GFPS-80), 25 mm (GFPS-100) or 50 mm (GFPS-200).
  • Exposed widths: 23 mm (GFPS-80), 30 mm (GFPS-100), 48 mm (GFPS-200).
  • Horizontal thermal movement: ±3 mm (GFPS-80), ±5 mm (GFPS-100), ±10 mm (GFPS-200).
  • If other types of movement are required, contact Construction Specialties (UK) Ltd for details.
  • Complementary wall/ ceiling joint covers: FWF-100 and -200 (not available for 80 model).

- GFPSW series:

  • Floor to wall version of GFPS.
  • Joint width: 20 mm (GFPSW-80), 25 mm (GFPSW-100) or 50 mm (GFPSW-200).
  • Exposed widths: 22 mm (GFPSW-80), 28 mm (GFPSW-100), 48 mm (GFPSW-200).
  • Horizontal thermal movement: GFPSW-80 ±3 mm, GFPSW-100 ±5 mm, GFPSW-200 ±10 mm.
  • If other types of movement are required, contact Construction Specialties (UK) Ltd for details.
  • Complementary wall/ ceiling joint covers: FWFC-100 and -200 (not available for 80 model).
