CS Acrovyn® BL10V / BL10VE Bed Head Protectors
Description

A range of medium duty bed head protectors, featuring Acrovyn® or Acrovyn® 4000 cover over continuous aluminium retainers.

Features:

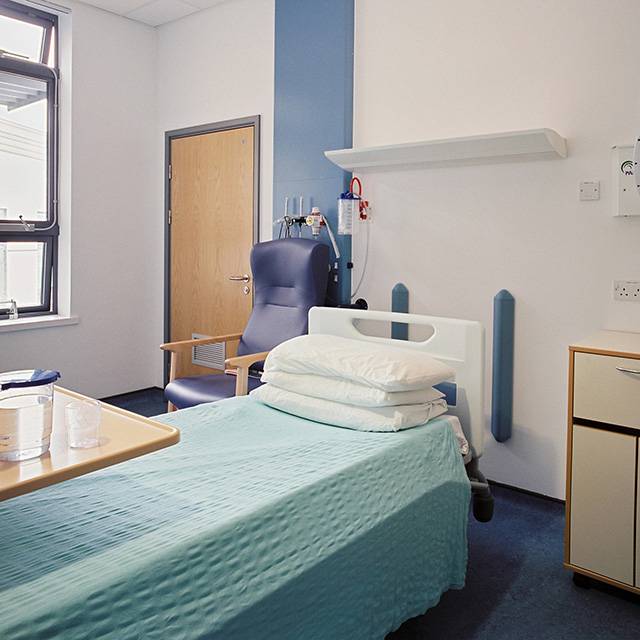

  • Designed to protect walls from damage at bed head locations.
  • For use in pairs in vertical orientation, typically at 600 mm centres.
  • BL10V versions are installed on mounting cushions.
  • BL10VE versions are fitted on custom length, powder coated aluminium brackets to hold beds away from the wall and wall mounted equipment.
  • Profiles supplied pre-cut, complete with end caps.
  • Available in 27 Acrovyn® profile colours and 8 Acrovyn® 4000 profile colours.
  • For extra durability, it is recommended fixing bed locators to studwork or pattresses.

General information

Features

Designed to protect walls from damage at bed head locations

For use in pairs in vertical orientation, typically at 600 mm centres

BL10V versions are installed on mounting cushions

BL10VE versions are fitted on custom length, powder coated aluminium brackets to hold beds away from the wall and wall mounted equipment

Profiles supplied pre-cut, complete with end caps

Show more

Uniclass 2015

Pr_35_90_43_86 Wall protection panelsPrimary

CAWS

N10/184 Wall rails

P20/170 Proprietary

Specification data - Wall protection panels

Product Reference

Acrovyn® BL10V Bed Head Protector

Installed on mounting cushions.

Acrovyn® BL10VE Bed Head Protector

Fitted on extended brackets.

Acrovyn® 4000 BL10V-N Bed Head Protectors

Installed on mounting cushions.

Acrovyn® 4000 BL10VE-N Bed Head Protectors

Fitted on extended brackets.

Bracket length

BL10HE and BL10HE-N

300 mm as standard, or can be cut to suit (90 mm minimum).

Colour

As schedule ___

Standard product features

Rail dimensions:

102 mm wide x 47 mm deep.

Standard height:

750 mm (including end caps).

Fixing:

400 mm maximum vertical centres.

Product Options

Acrovyn® BL10V / Acrovyn® 4000 BL10V-N Bed Head Protectors:

  • Mounted on 12 mm thick cushions.
  • Standard bed head protector height including end caps 750 mm.

Acrovyn® BL10VE Acrovyn® 4000 BL10VE-N Bed Head Protectors:

  • Mounted on powder coated aluminium extended brackets, 300mm standard length, or cut to size (90 mm minimum length).
  • Standard bed head protector height including end caps 750 mm.

Colour:

- Acrovyn®:

11 Alpine Blue/ 12 Cobalt/ 16 Harvest Gold/ 17 Sherbet/ 23 Spring Green/ 24 Dove/ 26 Taupe/ 34 Zest/ 100 Eggshell/ 101 French Cream/ 105 Mocha/ 112 Pacific Blue/ 129 Yale Blue/ 136 Pearl Grey/ 162 Charcoal/ 520 Imperial Purple/ 801 Grey Cloud/ 845 Spectrum Red/ 879 Dusty Jade/ 933 Mission White/ 4005 Plum/ 5018 Lagoon/ 6033 Mint Turquoise/ 7024 Graphite/ 7039 Iron/ 8019 Earth/ 9003 Snow White.

- Acrovyn® 4000:

100 Eggshell/ 101 French Cream/ 105 Mocha/ 129 Yale Blue/ 136 Pearl Grey/ 162 Charcoal/ 520 Imperial Purple/ 933 Mission White.
