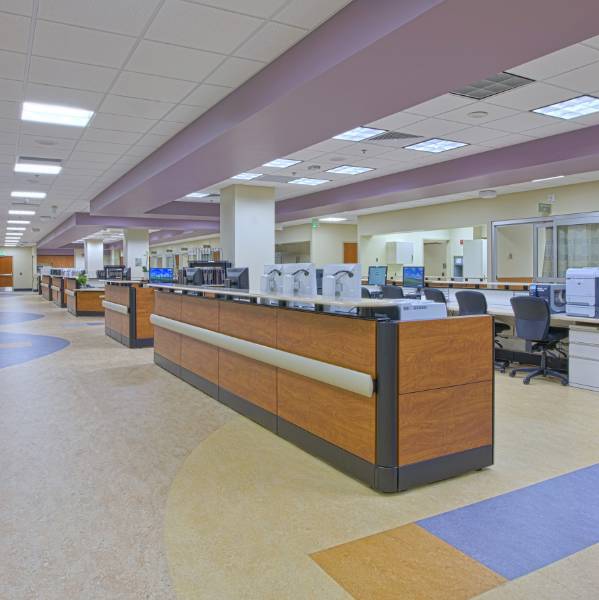

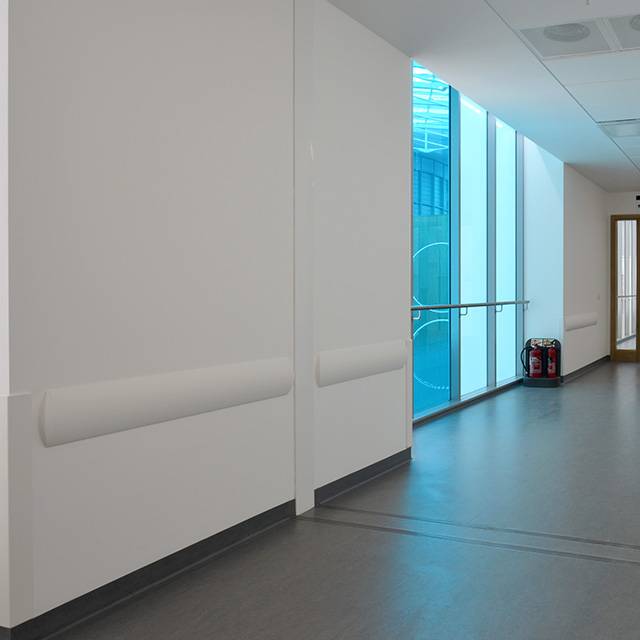

CS Acrovyn® BCR80 Heavy Duty Crashrail
Description

A range of 201 mm high crash rails, featuring a curved Acrovyn® or Acrovyn® 4000 cover over a continuous aluminium retainer.

Features:

  • Designed for heavy duty applications, for extensive impact protection.
  • Free-floating design flexes on impact.
  • Continuous shock-absorbing cushion for increased impact protection.
  • Available in 27 Acrovyn® profile colours, or 8 Acrovyn® 4000 profile colours.
  • Three mounting options for varying stand-offs, including Rapid Fix bracket option.

General information

Finish

Cover - Pebblette texture

Features

Cover flexes on impact, continuous aluminium retainer

Material

Acrovyn® over continuous aluminium retainers

Size

201 x 34 x 4000 mm (204 x 46 x 4000 - including mounting cushions)

Uniclass 2015

Pr_35_90_43_86 Wall protection panelsPrimary

CAWS

N10/184 Wall rails

P20/170 Proprietary

Specification data - Wall protection panels

Product Reference

Acrovyn® BCR80 Crash Rail

Acrovyn® ECR80 Crash Rail

Acrovyn® SCR80 Crash Rail

Acrovyn® 4000 BCR80-N Crash Rail

Acrovyn® 4000 ECR80-N Crash Rail

Acrovyn® 4000 SCR80-N Crash Rail

Colour

As schedule ___

Accessories

Not required

Acrovyn® end cap

Acrovyn® external corner

Acrovyn® return to wall end cap

For ECR80 / ECR80-N profiles only.

Standard product features

Depth of rail:

34 mm.

Stock length:

4000 mm - Acrovyn®, 3000 mm - Acrovyn® 4000.

Fixings:

600 mm maximum centres.

Product Options

Acrovyn® BCR80 and Acrovyn® 4000 BCR80-N Crash Rails:

  • Overall projection: 46 mm.
  • Mounted on rubber cushions.

Acrovyn® ECR80 and Acrovyn® 4000 ECR80-N Crash Rails:

  • Overall projection: 81 mm.
  • Mounted on Rapid Fix brackets.

Acrovyn® SCR80 and Acrovyn® 4000 SCR80-N Crash Rails:

  • Overall projection: 34 mm.
  • Surface mounted.

Colour:

- Acrovyn®:

11 Alpine Blue/ 12 Cobalt/ 16 Harvest Gold/ 17 Sherbet/ 23 Spring Green/ 24 Dove/ 26 Taupe/ 34 Zest/ 100 Eggshell/ 101 French Cream/ 105 Mocha/ 112 Pacific Blue/ 129 Yale Blue/ 136 Pearl Grey/ 162 Charcoal/ 520 Imperial Purple/ 801 Grey Cloud/ 845 Spectrum Red/ 879 Dusty Jade/ 933 Mission White/ 4005 Plum/ 5018 Lagoon/ 6033 Mint Turquoise/ 7024 Graphite/ 7039 Iron/ 8019 Earth/ 9003 Snow White.

- Acrovyn® 4000:

100 Eggshell/ 101 French Cream/ 105 Mocha/ 129 Yale Blue/ 136 Pearl Grey/ 162 Charcoal/ 520 Imperial Purple/ 933 Mission White.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 3 1.3
IFC
IFC2X3 3 1.3
Revit
Revit 2016 4 2.0
Download now from NBS National BIM Library
