Description

Aluminium single/ double hinged door sets, of slim but strong frame design, for residential use.

Features:

  • Dual colour available.
  • Multi chamber weather stripped profiles with polyamide thermal breaks.
  • Nitrile rubber glazing gaskets.
  • Size (w x h, maximum): 6408 x 2500 mm - sliding four pane.
  • Traditional design with slim sight lines; low threshold option.
  • Maximum leaf weight: 75 kg.

Performance (BS 6375-1 and PAS023):

  • 200 Pa Water Tightness (Class 5A); 300 Pa Air Permeability (Class 2); 1200 Pa Wind Resistance (Class 3).

General information
Size

Insert requirements.

Finish

Anodized

To BS 3987.

Powder coated gloss, colour

To EN 12206-1: 2004, insert colour.

Powder coated matt, colour

To EN 12206-1: 2004, insert colour.

Powder coated satin, colour

To EN 12206-1: 2004, insert colour.

Features

Dual colour available

Multi chamber weather stripped profiles with polyamide thermal breaks

Nitrile rubber glazing gaskets

Size (w x h, maximum): 6408 x 2500 mm - sliding four pane

Traditional design with slim sight lines; low threshold option

Maximum leaf weight: 75 kg

Uniclass 2015 Metal doorsets (Pr_30_59_24_52)
Specification data
Product Reference

Crown Residential Doors

Type

Hinged single, open in

Hinged single, open out

Hinged double, open in

Hinged double, open in

Leaves

1

2

As drawing

As schedule

Size

Insert requirements.

Finish

Anodized

To BS 3987.

Powder coated gloss, colour

To EN 12206-1: 2004, insert colour.

Powder coated matt, colour

To EN 12206-1: 2004, insert colour.

Powder coated satin, colour

To EN 12206-1: 2004, insert colour.

Glazing

24

28

32

Handle

Insert handle and colour requirements from Options.

Accessories

None

Internal thumbturn to lock

Letter plate

Low threshold

Standard product features

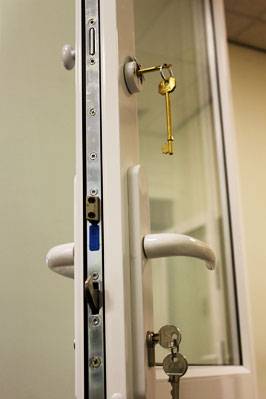

Hardware:

Multi-point lock with cylinder. Optional auxiliary lock.

Product Options

Glazing:

24, 28 or 32 mm as standard. Insert details of glass and spacer dimensions, emissivity, safety and solar control.

Handle:

  • Lever/ lever handle.
  • Lever/ swan neck handle with split spindle.
