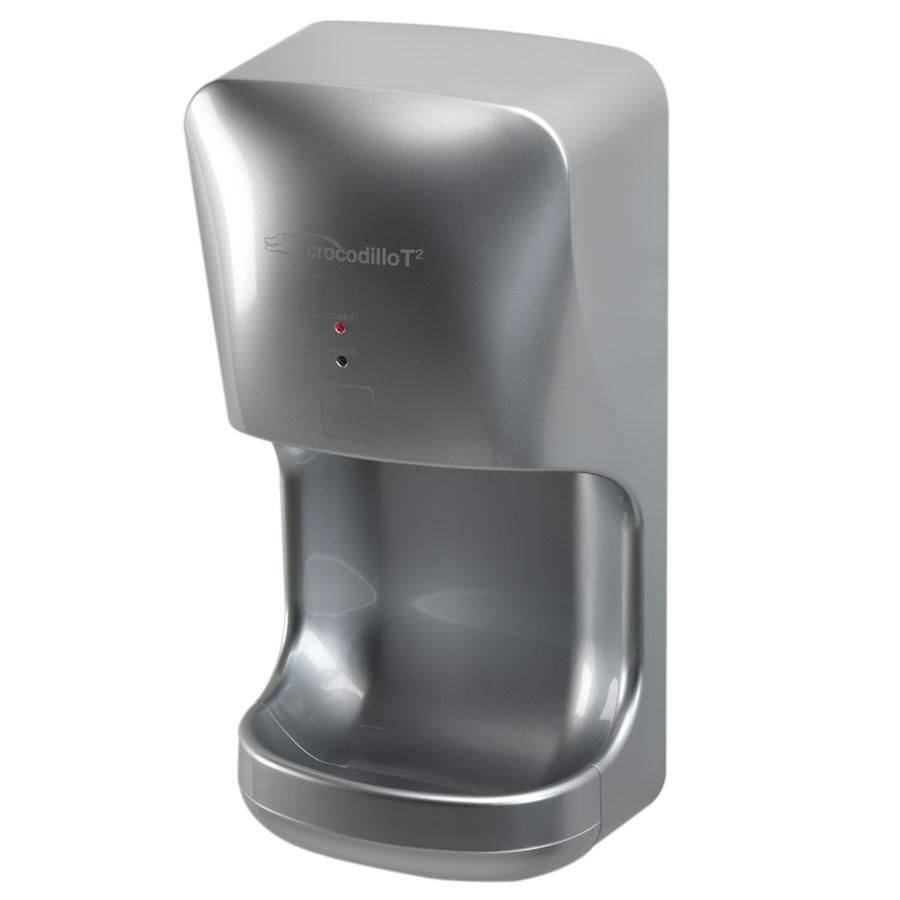

Crocodillo Hand Dryer

Verified by manufacturer 6 months ago

Crocodillo Standard

Heat Outdoors & Handy Dryers Variant:

Compact water collecting hand dryer.

Jump to:
BOS
+ (0) 1279 466 500 Website

Application

  • Washrooms, especially schools: suitable for use by small children.
  • Can be used within disabled bathroom facilities.
  • Used within cafes, retail, hotels and hospitals.

Description

Compact water collecting hand dryer.


Features and benefits:

  • Low noise (76 dB): suitable for schools and small children.
  • Drying time <12 seconds.
  • Switchable heater and power settings.
  • Washable air filter.
  • Small wall footprint.
  • T2: Inbuilt water drainage system and removable collection tray.

General information

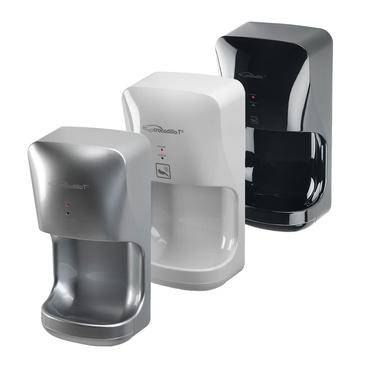

Color

Silver

Black

White

Finish

Powder-coated

Polished

Shape

Rectangle

Length

165 mm

Guidance for specification option:

Crocodillo Standard.

167 mm

Guidance for specification option:

Crocodillo T2.

Width

250 mm

Height

245 mm

Guidance for specification option:

Crocodillo Standard.

470 mm

Guidance for specification option:

Crocodillo T2.

Warranty description

Two year

Uniclass

Pr_40_70_62_37 Hand dryersPrimary

CAWS

N13/64 Hand dryers

N13/472 Hand dryers

Specification data - Hand dryers

Form

High-velocity air through filter.

Guidance for specification option:

  • Warm air speed output: 105 m/s.
  • Drying time: Approx. 10–15 seconds.

Operation

Automatic.

Guidance for specification option:

Infrared, self-adjusting.

Timer

Fixed.

Guidance for specification option:

60 seconds auto shut off.

Electrical supply

-

Power rating

1.4 kW.

Guidance for specification option:

Motor type: 550 W. Brush type, dual ball bearings.

Motor overload protection: Motor assembly designed with over current fuse, replaceable.

Heater element: 850 W.

Heater thermal protection: Auto-resetting thermostat turns unit off at 85°C {185°F}; thermal fuse cut unit off at 150°C.

Rated operational voltage (Ue)

220–240 V.

Frequency

50/ 60 Hz.

Body

-

Material

Manufacturer's standard.

Finish

Manufacturer's standard.

Colour

Metallic silver.

Black.

White.

Ingress protection (minimum)

IP24.

Guidance for specification option:

Isolation: Class 1.

Dimensions

245 x 250 x 165 mm.

Guidance for specification option:

Height x width x depth.

Noise level at 1 m (maximum)

76 dB.

Features

Hands only.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Crocodillo Data Sheet

Crocodillo Data Sheet

Crocodillo Blade User Manual

Crocodillo Blade User Manual
