CreaZen Double - Gates

Application

  • Residential.
  • Public spaces and buildings.

Description

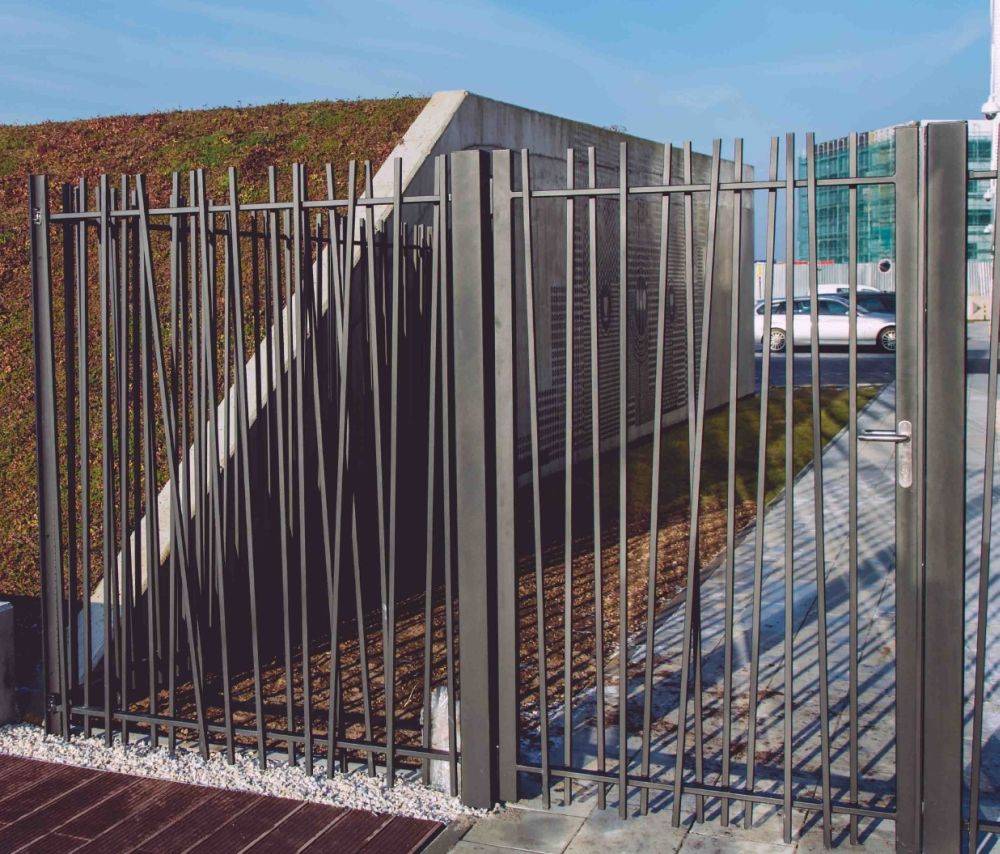

The CreaZen® infill is available as single and double swing gates. It fits harmoniously with the same fencing residential.


Features and benefits:


  • Design is in perfect harmony with the CreaZen® panels.
  • Rigid and qualitative construction.
  • With aesthetic and high-quality stainless steel accessories.
  • Universal 180° opening.
  • Posts are supplied.
  • Steel tubes are welded to both sides of the gate in a 'criss-cross' formation, helping to create a rigid, high-quality construction. Spacing between tubes is 110 mm for increased security.


Standards:

  • EN 13241-1: Industrial, commercial and garage doors and gates - Product standard - Part 1: Products without fire resistance or smoke control characteristics
  • EN 10219-1: Cold formed welded structural hollow sections of non-alloy and fine grain steels - Part 1: Technical delivery conditions
  • EN 10219-2: Cold formed welded structural hollow sections of non-alloy and fine grain steels - Part 2: Tolerances, dimensions, and sectional properties.
  • EN 10025-2: Hot rolled products of structural steels - Part 2: Technical delivery conditions for non-alloy structural steels.
  • ISO 1461: Hot-dip galvanized coatings on fabricated iron and steel articles - Specifications and test methods.
  • EN 10088-3: Stainless steels - Part 3: Technical delivery conditions for semi-finished products, bars, rods, wire, sections, and bright products of corrosion resisting steels for general purposes.
  • ISO 9227: Corrosion tests in artificial atmospheres - salt spray tests.
  • ISO 16474-3: Paints and varnishes - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps.

General information

Color

Green

RAL 6005 (Moss green).

Grey

RAL 7016 (Anthracite grey).

White

RAL 9010 (Pure white).

Black

AL 9005 (Jet black).

Finish

Polyester powder coated

The total polyester coating thickness is a minimum 60 μm. The polyester coating thickness is the average of 10 measurements.

Galvanized

Hot-dip galvanized (average of min. 395 g/m² in accordance with ISO 1461, table 3).

Material

Steel

Type S235 JRH class 1, in accordance with EN 10219-1.

Shape

Rectangular

Size

Width: 4000 mm, Height: 1000, 1200, 1500, 1700, 2000 mm (other dimensions available on request).


WarrantyDescription

Ten years

Standard 10 years guarantee.


Uniclass 2015

Pr_30_59_34_14 Carbon steel gatesPrimary

CAWS

Pr_30_59_34_14 Loose laid gas retardant damp proofing

Primary

Q40/40 Steel

Q40/560 Steel

Specification data - Carbon steel gates Enhanced data

Dimensions

-

Span

4000 mm.

Up to 4000 mm, non standard dimension on request.

Height

1000 mm.

1200 mm.

1500 mm.

1700 mm.

2000 mm.

Posts

Carbon steel.

CreaZen panels are foreseen to be installed on Bekafix post. Cross section of the post: 70 x 44 mm fixed on wither concrete or base plates.

Gate leaves

Carbon steel palisade.

Hardware

-

Hinges

Required.

Hinges: adjustable hinges that allow the gate wings to be opened 180° and which make it possible for the gate to open in both directions.

Finish as delivered

-

Applied finish

Powder coated.

Product Reference

CreaZen Double - Gates

Colour

Green.

RAL 6005 (Moss green).

Grey.

RAL 7016 (Anthracite grey).

White.

RAL 9010 (Pure white).

Black.

RAL 9005 (Jet black).

Other.

All other RAL colours on request.

Fixings

Intermediate fixation clamp (plastic), with stainless steel nuts and bolts, Bekafix base plates, corner fixators for angles (10° up to 180°) and closing caps for vertical tubes.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

1.3
Revit

Revit 2016

1

1.3
Download now from NBS National BIM Library
