Creation 40 Solid Clic - Flooring

Verified by manufacturer 2 months ago

0347 - Ballerina

Gerflor Flooring UK Limited Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

Synthetic, decorative, anti-static, abrasion group T floor coverings available in tile or plank form with 0.45 mm wear layer and interlocking Solid Clic system.

Jump to:
BOS
01625 428 922 Website

Application

Suitable for residential use.

Description

Creation 40 Solid Clic is a decorative range of luxury vinyl tiles (LVT) and planks with a 0.45 mm wear layer and interlocking Solid Clic system. It comprises Duo Core 2.0 technology - a combination of a rigid core back layer for easy renovation and a flexible core top layer to provide softness and comfort. Creation 40 Solid Clic is finished with an enhanced surface treatment, Protecshield™, for improved scratch and stain resistance, easy cleaning and an ultra matt finish.


It is available in three sizes and 30 core designs that includes wood and mineral design references, offering a good range of design choice.


Features and benefits:

  • Easy and quick to install using Solid Clic technology.
  • Wear Group T/ Type Binder classification I.
  • Protecshield™ surface treatment for easy cleaning and maintenance.
  • Slip resistant - R10.
  • Realistic embossing and bevelled edges for enhanced authenticity.
  • Wide range of designs.
  • All references are available as a Dry Back (glue down) and a Rigid Acoustic version (specified separately).
  • 100% recyclable and contains up to 55% recycled content.
  • High level of indoor air quality - TVOC after 28 days: <10 µg/m³.
  • Can be installed with Gerflor Acoustic underlayers for enhanced sound insulation (specified separately).
  • Matching skirtings and coverstrips available (specified separately).


Installation and maintenance:

Should be installed in accordance with the BS 8203:2017 code of practice for installation of resilient floor coverings. Installation and maintenance instructions are available.

General information

Color

Beige

Black

Brown

Cream

Grey

Finish

Matt

Material

Vinyl

Shape

Rectangle

Length

1238.8 mm

728.7 mm

1460.8 mm

Width

212 mm

388.8 mm

239.6 mm

Height

4.5 mm

Guidance for specification option:

Total thickness to EN ISO 24346.

Warranty description

12 year

Uniclass

Pr_35_57_71_68 Polyvinyl chloride (PVC) tilesPrimary

CAWS

M50/120 Interlocking resilient floor tiling

M50/10 Resilient floor tiling

Product range

Tiles / Luxury Vinyl Tile (Flooring)

Specification data - Polyvinyl chloride (PVC) tiles

Standard

To BS EN ISO 10582

Use class

To BS EN 10874, class 23-32-41.

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

R10

Guidance for specification option:

To DIN 51 130

Recycled content

55 %.

Guidance for specification option:

Contains up to 55% recycled content.

Size

212 x 1238.8 mm.

Guidance for specification option:

Number of planks/ tiles and sqm per box: 8/ 2.10 m².

239.6 x 1460.8 mm.

Guidance for specification option:

Number of planks/ tiles and sqm per box: 7/ 2.45 m².

388.8 x 728.7 mm.

Guidance for specification option:

Number of planks/ tiles and sqm per box: 7/ 1.98 m².

Manufacturer guidance

To EN ISO 24342.

Thickness

4.5 mm.

Guidance for specification option:

To EN ISO 24346.

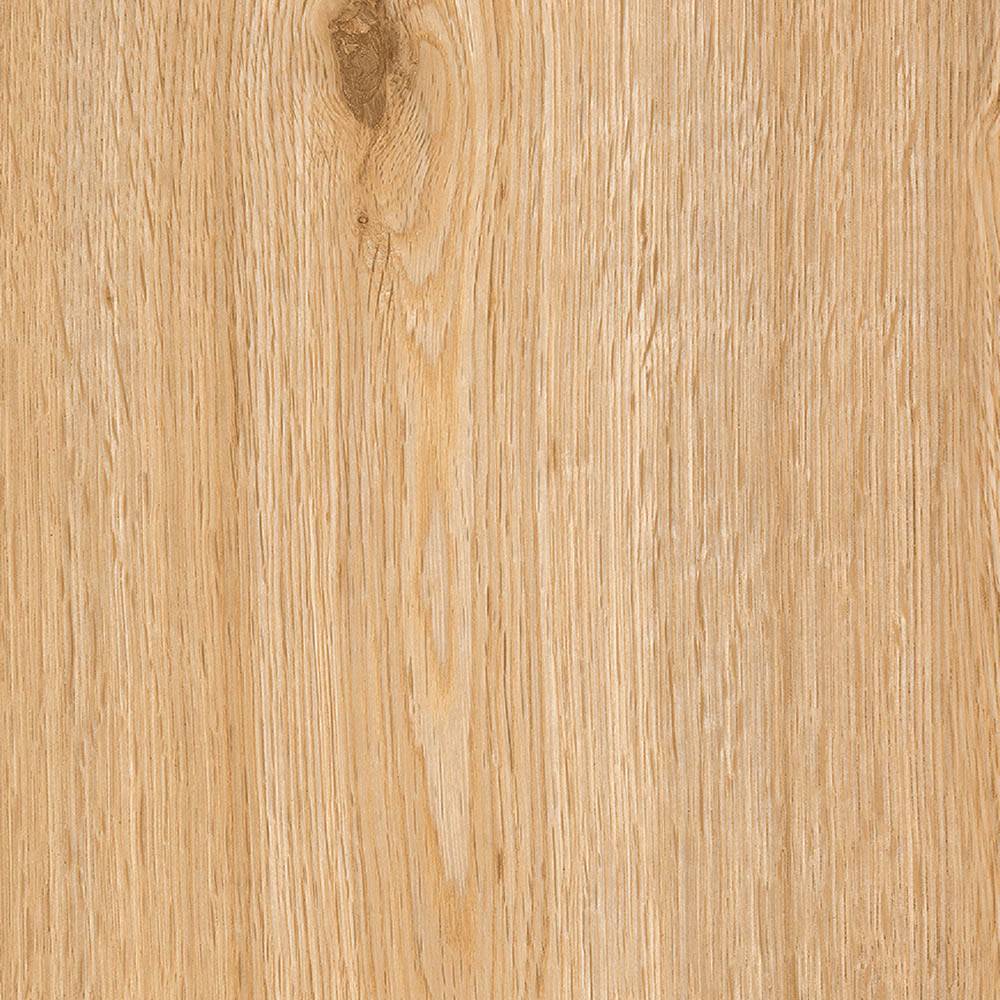

Colour and pattern

0347 Ballerina.

Weight

7118 g/m².

Wear layer

0.45 mm.

Guidance for specification option:

Thickness of wear layer.

Wear group

T.

Binder

Type I.

Guidance for specification option:

To BS EN ISO 10582

Dimensional stability (to BS EN ISO 23999)

≤ 0.15%.

Guidance for specification option:

Dimensional stability (average measured value), ~0.05%.

Residual indentation (to EN-ISO 24343-1)

≤ 0.10 mm.

Castor chair continuous use (to ISO 4918)

OK.

ThermalConductivity

0.25 W/m·K.

Guidance for specification option:

To EN ISO 10456.

Surface treatment

Protecshield™.

Chemical resistance (to EN-ISO 26987)

OK.

Static electricity

< 2 kV.

Guidance for specification option:

Static Electrical Propensity To EN 1815.

Fire classification (EN 13501-1)

Bfl-s1.

VOC emissions

< 10 µg/m³.

Guidance for specification option:

ISO 16000-6 TVOC after 28 days


Accessories

Matching skirtings.

Paintable white skirtings.

Matching coverstrips.

Entrance matting.

Underlay.

Show more

Manufacturer guidance

Consult manufacturer and insert requirements.

Impact sound reduction (to EN-ISO 717-2)

4 dB.

Light reflectance value (LRV)/ Colour

28.4.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Europe

Material

Vinyl

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

55 %

Guidance for specification option:

Contains up to 55% recycled content.

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

EPD

EPD

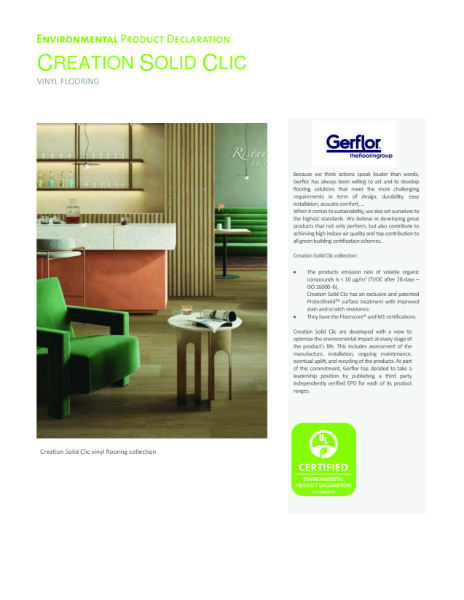

EPD - Creation Solid Clic

Literature

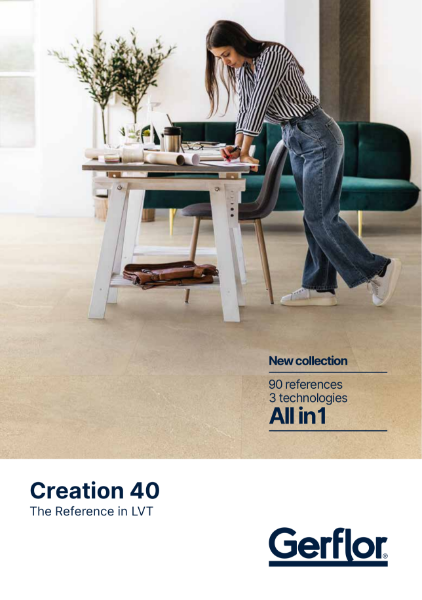

Creation 40 - 2022 Collection - Card

Creation 40 - 2022 Collection - Card
