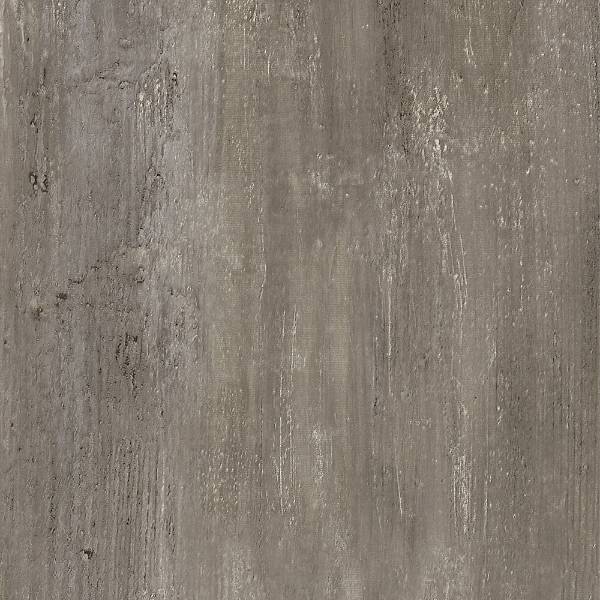

Creation 40 - LVT - Flooring

Verified by manufacturer 8 months ago

0447 - Amador

Gerflor Flooring UK Limited Variant:

Synthetic, decorative, flexible, anti-static, abrasion group T floor coverings available in tile or plank form with a 0.40 mm transparent wear layer.

Jump to:
BOS
01625 428 922 Website

Application

Suitable for residential applications.

Description

Creation 40 is a decorative range of glue down luxury vinyl tiles (LVT) and planks. It comprises a 0.40 mm transparent wear layer, a high definition design film and a resilient comfort core to provide noise absorption and comfort underfoot. Finished with realistic embossing and micro-bevelled edges, the range comes with an enhanced surface treatment, Protecshield™ for improved scratch and stain resistance, easy cleaning and an ultra matt finish. Available in 23 wood and 7 mineral design references across four size formats, offering optimum design choice.



Features and benefits:

  • Protecshield™ surface treatment for easy cleaning and maintenance.
  • Slip resistant - R10.
  • Wear Group T/ Type Binder classification I.
  • Easy to install.
  • Realistic embossing and micro-bevelled edges for enhanced authenticity.
  • Wide range of designs – 30 references across a range of size formats.
  • All references are also available as a Solid Clic or Rigid Acoustic version (specified separately).
  • 100% recyclable and contains up to 35% recycled content.
  • High level of indoor air quality: total volatile organic compounds (TVOC) after 28 days: <10 µg/m³.
  • Can be installed with auto adhesive acoustic underlayer Smartfix 16 dB : for enhanced sound insulation (specified separately).
  • Matching skirtings and coverstrips available (specified separately).



Installation and maintenance:

Should be installed in accordance with the BS 8203: 2017 Code of practice for installation of resilient floor coverings.

Installation and maintenance instructions are available.



General information

Color

Brown

Beige

Black

Cream

Grey

Finish

Matt

Material

Vinyl

Shape

Rectangle

Square

Length

1219.2 mm

1500 mm

609.6 mm

914.4 mm

Width

184.15 mm

230 mm

609.6 mm

457.2 mm

Height

2 mm

Guidance for specification option:

Total thickness to EN ISO 24346.

Warranty description

12 year

Uniclass

Pr_35_57_71_68 Polyvinyl chloride (PVC) tilesPrimary

CAWS

M50/10 Resilient floor tiling

M50/110 Resilient floor tiling

Product range

Tiles / Luxury Vinyl Tile (Flooring)

Specification data - Polyvinyl chloride (PVC) tiles

Standard

To BS EN ISO 10582.

Use class

To BS EN ISO 10874, class 23-32-41.

Slip potential

-

Slip resistance value (SRV) (minimum)/ Pendulum test value (PTV) (minimum)

R10.

Guidance for specification option:

To DIN 51130, slip resistance wet.

Recycled content

35%.

Guidance for specification option:

Contains up to 35% recycled content.

Size

184.15 x 1219.2 mm.

Guidance for specification option:

Number of planks/ tiles and sqm per box: 21/ 4.71m².

230 x 1500 mm.

Guidance for specification option:

Number of planks/ tiles and sqm per box: 13/ 4.49m².

457.2 x 914.4 mm.

Guidance for specification option:

Number of planks/ tiles and sqm per box: 11/ 4.60m².

609.6 x 609.6 mm.

Guidance for specification option:

Number of planks/ tiles and sqm per box: 13/ 4.83m².

Thickness

2 mm.

Guidance for specification option:

Total thickness to EN ISO 24346.

Colour and pattern

0447 Amador.

Wear layer

0.40 mm.

Guidance for specification option:

Thickness of wear layer to EN ISO 24340.

Weight

3430 g/m².

Guidance for specification option:

To EN ISO 23997.

Static electricity

<2 kV.

Guidance for specification option:

Static electrical propensity to BS EN 1815.

ThermalConductivity

0.25 W/m·K.

Guidance for specification option:

To EN ISO 10456.

Surface treatment

Protecshield™.

VOC emissions

<10 µg/m³.

Guidance for specification option:

To ISO 16000-6, TVOC after 28 days.

Wear group

T.

Binder

Type I.

Guidance for specification option:

Type binder content to ISO 10582.

Accessories

Matching skirtings

Paintable white skirtings

Matching coverstrips

Entrance matting

Underlay

Show more

Manufacturer guidance

Consult manufacturer and insert requirements.

Dimensional stability (to BS EN ISO 23999)

≤ 0.25%.

Guidance for specification option:

Average measured value ≤0.10%.

Residual indentation (to EN-ISO 24343-1)

≤ 0.10 mm.

Light reflectance value (LRV)/ Colour

25.1.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Europe

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

35 %

Guidance for specification option:

Contains up to 35% recycled content.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

Creation 40 - 2022 Collection - Card

Creation 40 - 2022 Collection - Card
