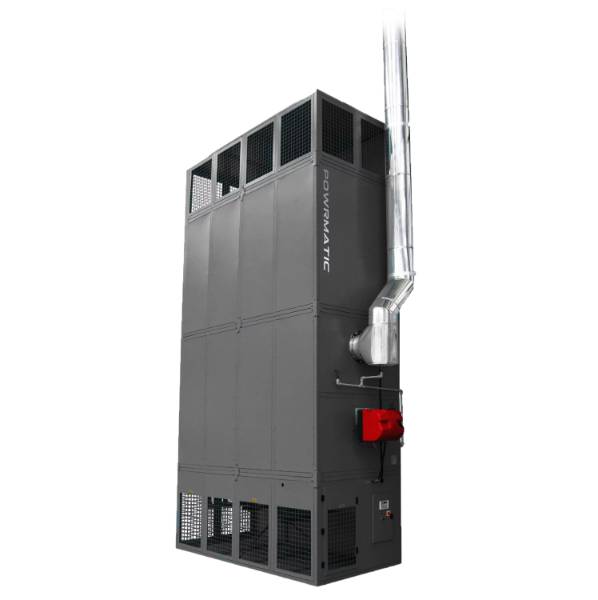

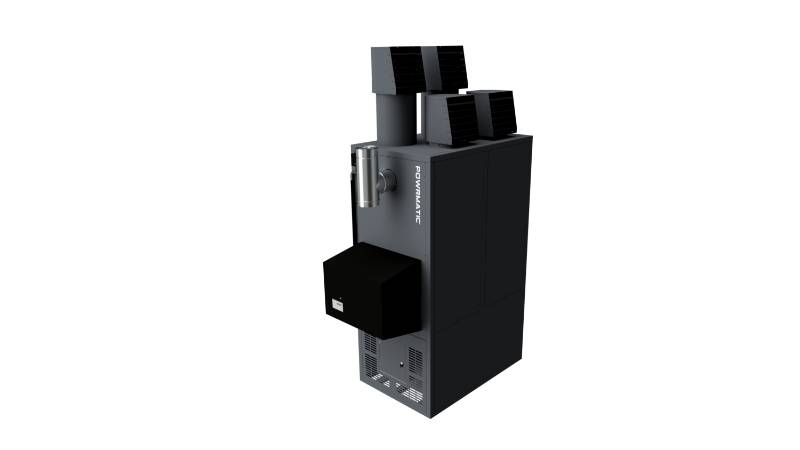

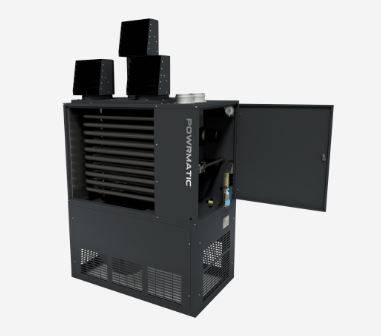

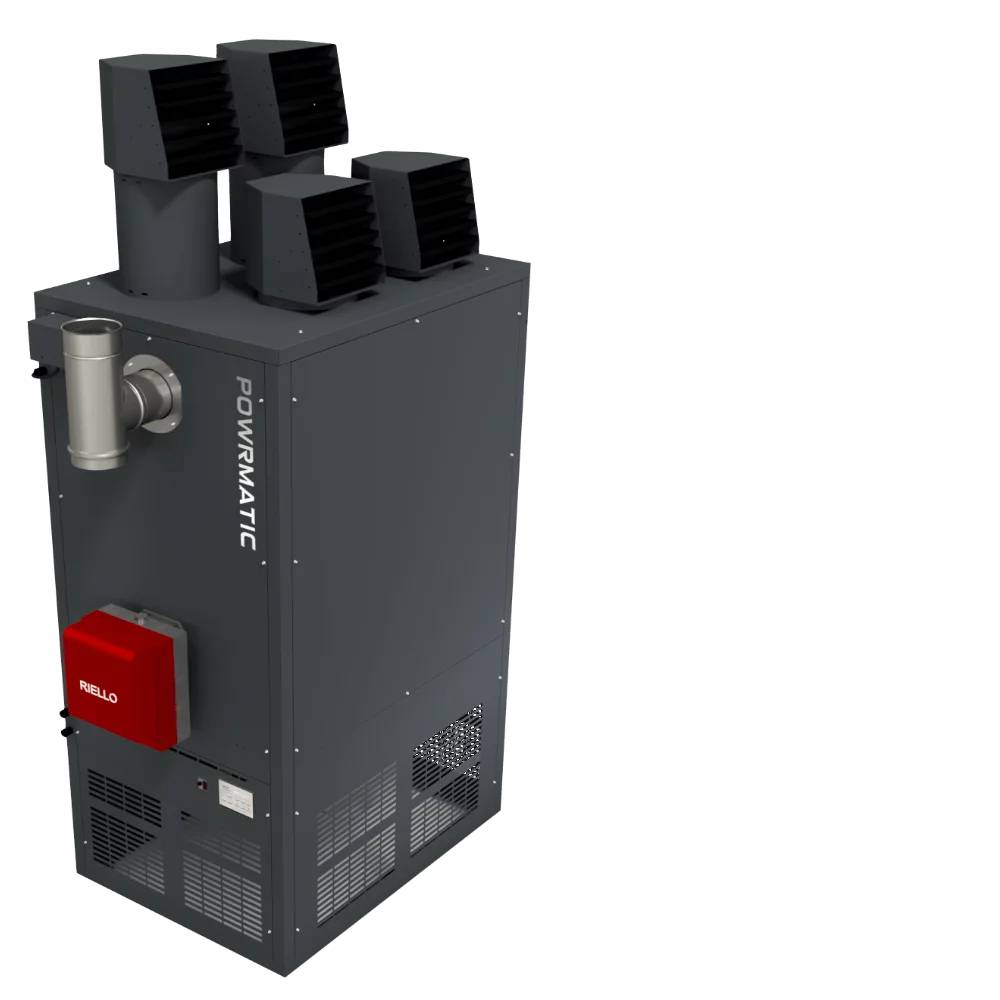

CPx Gas Fired Cabinet Heaters - Floor standing warm air space heaters
Verified by manufacturer 5 months ago
CPxG30
CPxG30
A range of cabinet type heaters for industrial and commercial properties.
Application
Gas fired cabinet heater for industrial and commercial properties including warehouses, factories, showrooms and retail outlets.
Description
The CPx range of cabinet type heaters combines installation versatility with a range from 360 kW to 590 kW outputs. The range can be installed in the heated space, be sited in plant rooms and specified for either vertical or horizontal installation. The CPx EA range can also be specified for external applications.
Features and benefits:
- Reduced NOx and running costs.
- British built.
- ErP compliant.
- Durable and compact design.
- Stealth RAL 7015 as standard.
- Range of sizes and kW.
General information
Color | Grey Other |
Finish | Painted |
Material | Steel Stainless steel |
Shape | Rectangle |
Length | 732 mm 927 mm 1200 mm 1399 mm 1599 mm |
Width | 669 mm 744 mm 904 mm 1104 mm 1260 mm Manufacturer guidanceUF Upright Freeblowing. |
Height | 2005 mm 2053 mm 2476 mm 2567 mm 2821 mm Manufacturer guidanceUF Upright Freeblowing. |
Warranty description | Two year Guidance for specification option: Time related heat exchanger warranty. |
Uniclass | |
CAWS | T90/110 Heating system T90/110 Heating system |
Specification data - Cabinet indirect heaters
Output | 30 kW. |
Air volume | 0.97 m³/s. |
Arrangement | Horizontal.Vertical. |
Position | External.Internal. |
Outlets | Horizontal freeblowing.Upright freeblowing.Horizontal ducted.Upright ducted. |
Fuel | LPG.Natural gas.Oil fired. |
Burner | "Gulliver” high-low fire burners.Guidance for specification option: Standard. Gas fired modulating burners.Guidance for specification option: Optional. |
Controls | MC200V3/ MC200. |
Flues and chimneys | Supplied with a 90° flue tee.Manufacturer guidanceConsult manufacturer's literature for flue requirements. |
Accessories | None.Side/ rear inlet spigots.Filters.Dampers. |
Model | CPx UF - Upright Freeblowing. CPx UD - Upright Ducted. CPx HF - Horizontal Freeblowing. CPx HD - Horizontal Ducted. CPx EA – External. |
Colour/ Finish | Painted, RAL 7015. Guidance for specification option: Standard. Painted RAL. Guidance for specification option: Painted RAL colour of choice; insert requirements. |
Options | Not required. Inverter drive. 409 stainless steel heat exchanger. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Literature
CPx Brochure

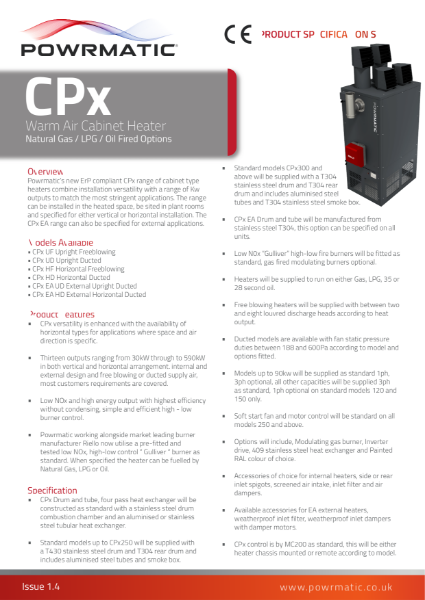

CPx Product Specification Sheet
