CPT: Concealed Post Base
Verified by manufacturer 6 months ago
CPT44Z
CPT44Z
The CPT post base provides a clean look while providing a 25 mm stand off height above the ground, reducing the potential for decay at the post end.
Application
For fixing timber posts to concrete.
Description

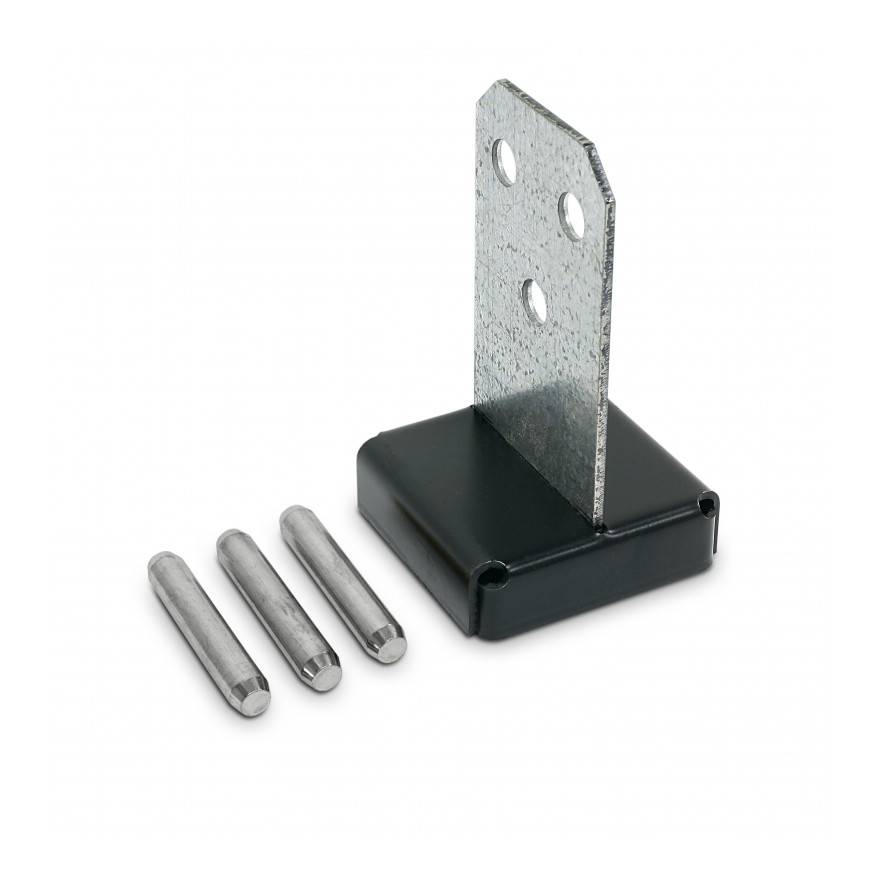

The CPT Concealed Post Base can be fixed to a concrete base with M12 resin anchors (sold separately).
The flitch plate, washers and standoff base are pre-galvanized steel. The standoff base has an additional textured, flat black powder-coat finish for aesthetic purposes. The 12 mm diameter dowels are mechanically galvanized.
Features and benefits:
- CE marked.
- Suitable for outdoor use.
- Service class 3.
General information
Color | Black |
Finish | Powder-coated |
Material | Steel |
Shape | Square |
Length | 89 mm 133 mm 184 mm |
Width | 89 mm 133 mm 184 mm |
Uniclass | |
CAWS | G20/715 Bonded anchors |
Specification data - Stand-off post bases

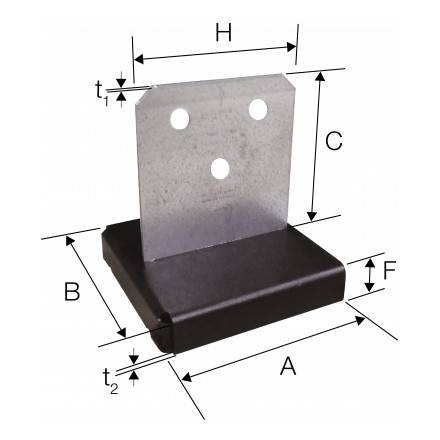

Dimensions | 89 x 89 mm.Guidance for specification option: L x W. Manufacturer guidanceFor timber post size 89 x 89 mm to 100 x 100 mm. |
Material | Carbon steel. |
Finish as delivered | |
Applied finish | Galvanized and powder-coated. |
Colour | Black. |
Fasteners | Into post: 3no. Ø13x70 mm dowels; Into concrete: 2no. Ø12 mm resin anchors. |
Literature
CPT: Concealed Post Base Technical Data Sheet
