CP 674

Application

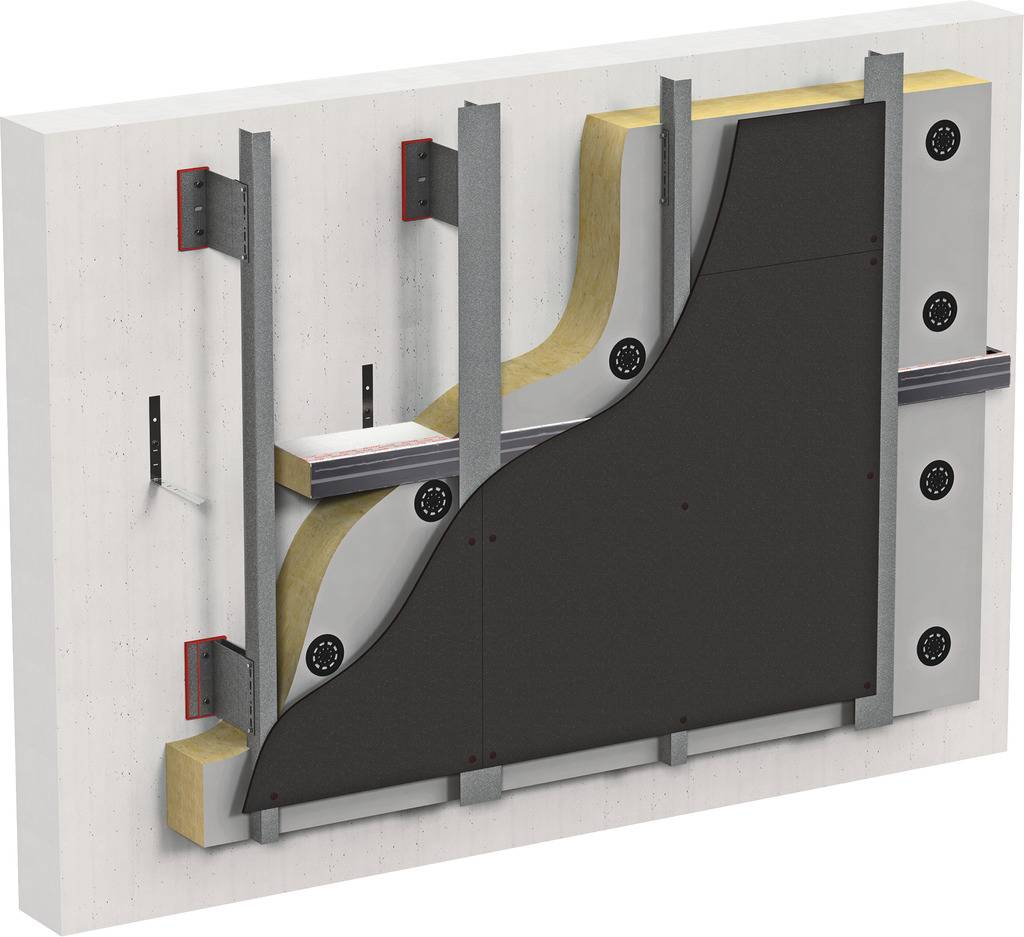

Suitable for firestopping ventilated rain screen cladding façades with gaps of 25 mm or less.

Description

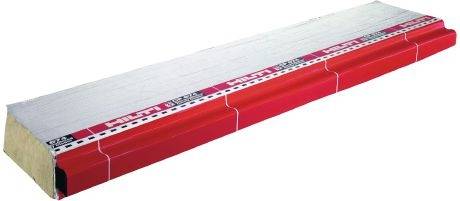

Pre-formed intumescent fire barrier sealing building envelope cavities to better prevent the spread of fire via the façade.


Features and benefits:

  • Ready-to-use product, easy to fit.
  • Wide range of sizes to suit most cavity gaps.
  • Stainless steel brackets with an expected lifespan of 30 years.
  • Age resistance tested to simulate 30 years of wetting/ drying cycles.
  • Providing up to 60 minutes fire integrity and 30 minutes insulation.

General information

Color

White

Material

Mineral wool

Aluminium

Shape

Rectangular

Size

100 x 1000 mm

150 x 1000 mm

200 x 1000 mm

250 x 1000 mm

300 x 1000 mm

Show more

Uniclass 2015

Pr_25_80_80_42 Intumescent coated foil mesh flexible cavity barriersPrimary

CAWS

P10/432 Cavity barriers

P10/435 Ventilated cavity barriers

P10/77 Ventilated cavity barriers

P12/360 Mineral wool rigid batts

P12/40 Mineral wool rigid batts

Specification data - Intumescent coated foil mesh flexible cavity barriers Enhanced data

Fire performance

30 minutes.

Product Reference

CP 674 V

Ventilated.

CP 674 NV

Non-ventilated.
