Cova Miti-gate 30 Double Security Barrier - Security Gate/ Barrier

Name: Cova Miti-gate 30 Double Security Barrier - Security Gate/ Barrier
Brand: CLD Physical Security Systems
SKU: ctdKDyQcJKVwDo34EJtNiZ

Verified by manufacturer 21 days ago

CLD Physical Security Systems

PAS 68 manual crash tested barrier gate.

Jump to:

BOS

+44 (0)1270 764751 Website

Application

For locations that have infrequent vehicular throughput, yet still require protection from a vehicle borne threat, e.g. emergency vehicle access.

Description

PAS 68 manual crash tested barrier gate.

Features and benefits:

Provides an economical solution.
This product requires minimal civil work due to hinge and receptor posts only requiring 215 mm foundation depth.
Clear width availability of up to 10 metres utilizing a double leaf format.
Cost effective, simple, PAS 68 compliant solution.
Can be used in any site location where a vehicle borne threat exists, infrequent vehicular access is required, and pedestrian permeability is to be maintained.
Manual barrier that can be hinged, bi-parting or removable, which offers a variety of options.
Utilizes Cova's patented arrestor system (European Patent No 2369126).

General information

Color	Other
Finish	Shot blasted Primed Galvanized Zinc plated Powder-coated
Material	Steel
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	1100 mm

Uniclass	Pr_30_59_34_14 Carbon steel gatesPrimary
CAWS	Q41/190 Vehicle access point barriers Q41/190 Vehicle access point barriers Q40/570 Proprietary gates and posts Q40/40 Steel gates Q40/560 Steel gates and posts Q40/45 Proprietary gates

SKU Code	CSG10930

Specification data - Carbon steel gates

Classification data

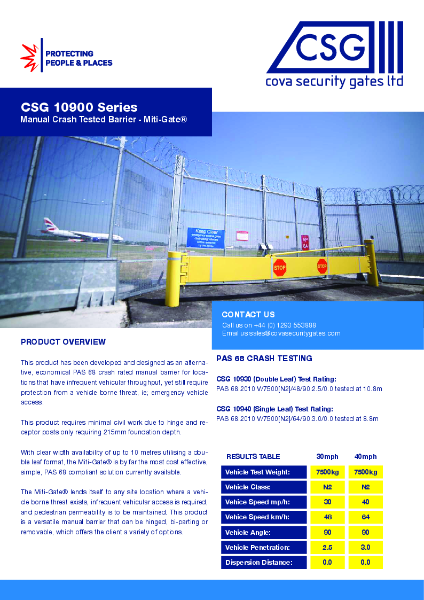

Product reference	CSG 10930 Double Miti-Gate®.
Performance characteristics	-

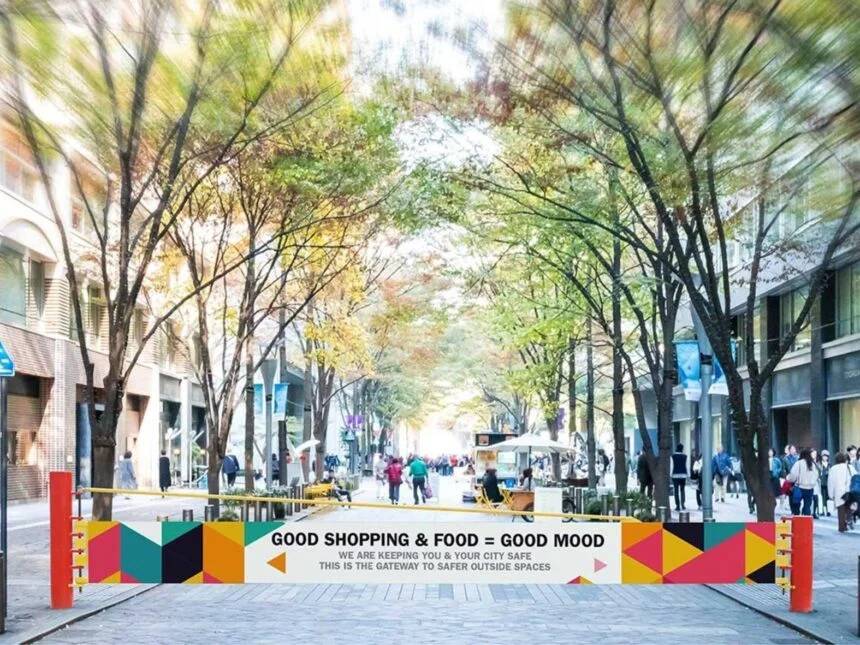

Visual	Not required. Graphics. Guidance for specification option: The Miti-Gate® offers a large flat surface, suitable for use as an advertising space. With use of graphics, this gate can also be finished to blend with the installed environment.
Dimensions	-
Span	- Manufacturer guidance Gate can be supplied to suit a maximum opening of 10 000 mm. Consult manufacturer and insert requirements.
Height	1100 mm. Guidance for specification option: From finished floor level (FFL).
Posts	Mild steel.
Gate leaves	Mild steel.
Hardware	-
Hinges	Required. Guidance for specification option: Hinge and locking pins. Not required. Guidance for specification option: Completely removable or bi-parting options available. Consult manufacturer for details.
Securing	Padlocks. Guidance for specification option: The Miti-Gate® can easily be secured in the closed position with a specific padlock which is applied to the hinge pin and locking pin.
Operating	Manual.
Finish as delivered	-
Worked finish	Shot blasted to SA 2.5.
Applied finish	Powder-coated. Guidance for specification option: 60 μm. Insert RAL colour requirement. Galvanized primed. Guidance for specification option: 60 μm. Zinc primed. Guidance for specification option: 60 μm.
Installation	Designed to be mounted between Cova’s standard range of crash tested bollards.
Certification	PAS 68 crash testing. Guidance for specification option: PAS 68:2010 V/7500[N2]/48/90:2.5/0.0 tested at 10.8 m. See manufacturer's datasheet for specific test results.
