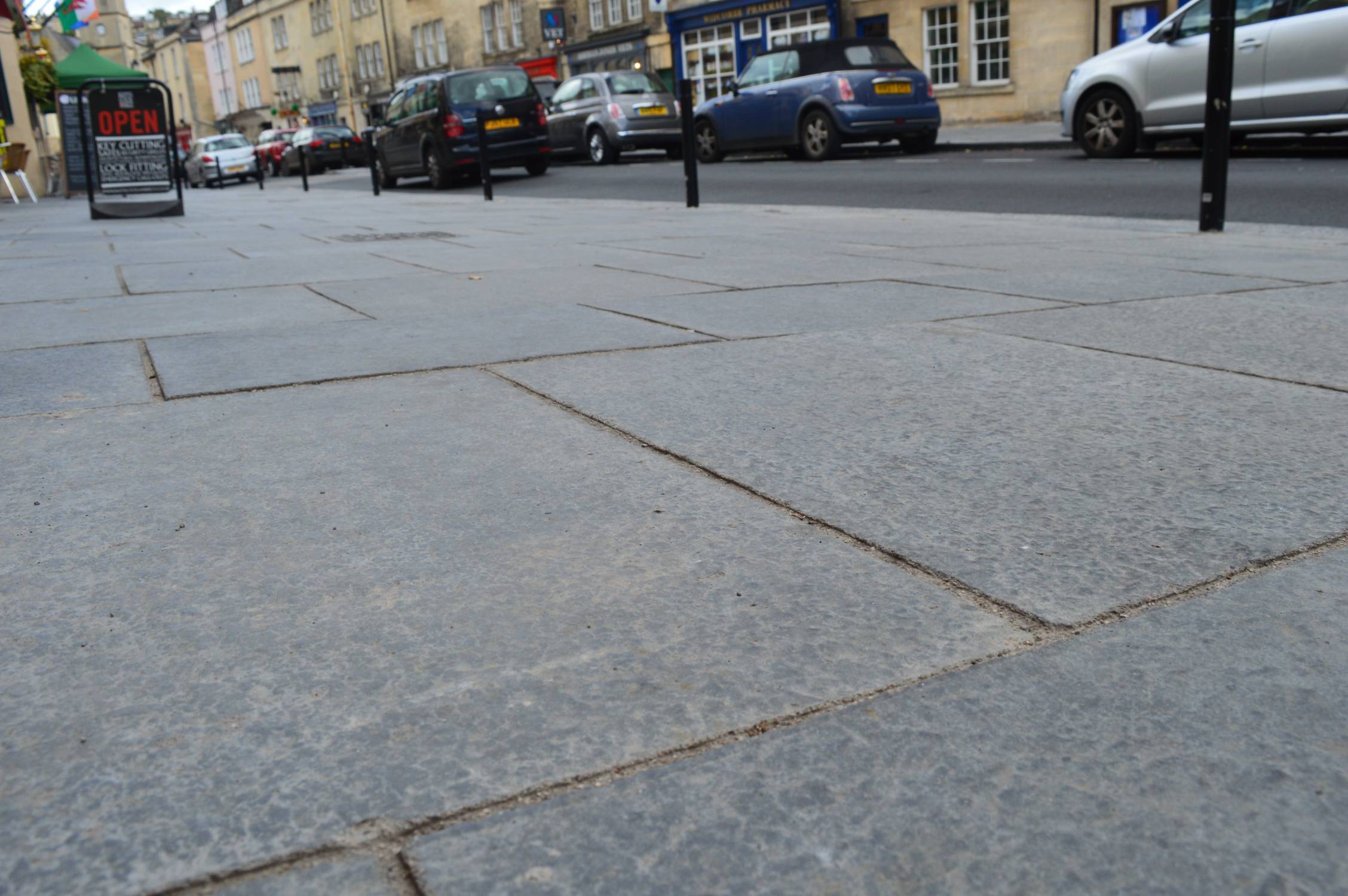

Courtstone - Concrete Flag Paving

Verified by manufacturer 4 months ago

900 x 600 mm

Charcon Hard Landscaping - Part of Aggregate Industries UK Ltd Variant:
Third party certifications:
  • BES 6001

    BES 6001

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • Certificate of Compliance

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • EnMS ISO 50001

    EnMS ISO 50001

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Concrete paving flag.

Jump to:
+44 (0)1335 372222 Website

Application

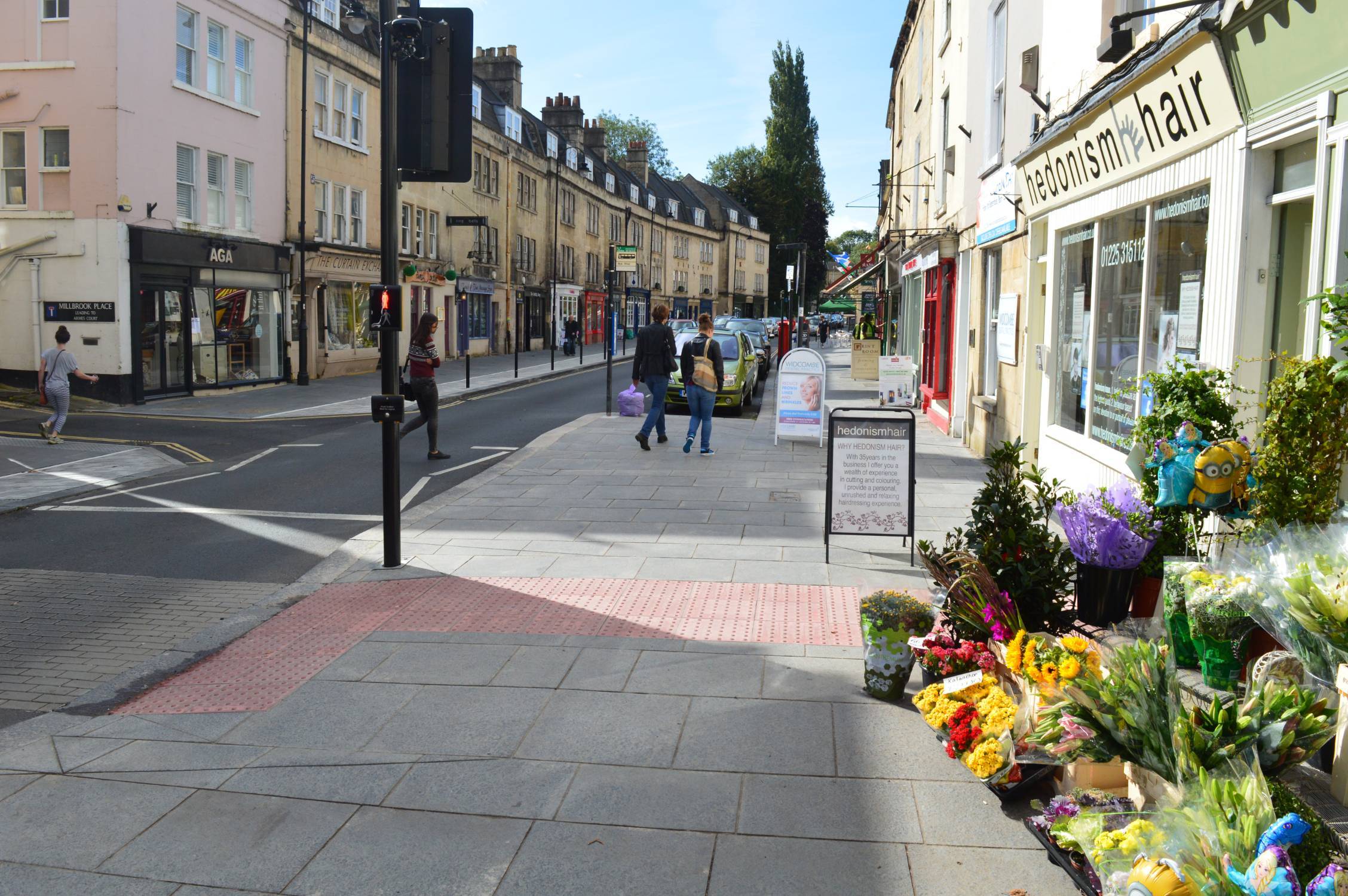

Suitable for high volume pedestrian areas, town centres, shopping precincts and footways as well as occasional car or mechanical sweeper overrun, footways with cars and HGV vehicle or service areas.


Description

Concrete flag to replicate natural stone paving. Courtstone flag paving is manufactured using a wet pressed process in moulds mastered from original Scottish Caithness stone and is manufactured in accordance with and complies with all relevant sections of BS EN 1339: Precast Concrete Flags – requirements and test methods.


Features and benefits:

  • Sizing reflects quarried flagstone sizes.
  • Extremely durable.
  • Deep charcoal colour replicates that of natural Caithness stone paving.
  • Non-slip riven finish.


BREEAM Rating: GENERIC GREEN GUIDE RATING*

  • Concrete paving Flags (60 mm with a prepared recycled sub-base) A+ rated.
  • Concrete paving flags (60 mm with a prepared sub-base) A rated. Concrete block pavers, CBP (80 mm) over prepared recycled sub-base A rated.
  • Concrete block pavers, CBP (80 mm) over prepared sub-base B rated.

General information

Color

Grey

Finish

Anti-slip

Material

Concrete

Shape

Square

Rectangle

Length

900 mm

750 mm

600 mm

450 mm

Width

600 mm

450 mm

Height

63 mm

Guidance for specification option:

Thickness

Warranty description

Ten year

Uniclass

Pr_25_93_60_58 Natural stone paving slabsPrimary

CAWS

Q25/50 Natural stone slabs

Q25/310 Natural stone slabs

Specification data - Natural stone paving slabs

Stone denomination

-

Petrological family

Mudstone.

Colour

Charcoal.

Name (traditional)

Caithness flagstone.

Origin

Scotland.

Physical properties

-

Profile

-

Slab type

Regular plan form.

Arrises

Square.

Dimensions and associated tolerances

-

Nominal sizes

900 x 600 x 63 mm.

Tolerances on plan dimension and thickness (nominal)

Class 2.

Tolerances on diagonals

Class 2.

Tolerances on thickness

Class 2.

Finish

Non-slip riven.

Performance requirements

-

Slip resistance

No requirement.

Skid resistance

No requirement.

Weight

83.3 kg.

Weather resistance

Class 3.

Manufacturer guidance

Freeze-thaw.

Reaction to fire

Class 1.

Colour (Light reflectance value (LRV)

42.49.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Guidance for specification option:

Produced in the UK, with locally sourced materials under strict environmental and social legislation, for local supply.

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

127.92 kg CO₂ eq/unit

Self declared

Recyclability

100%.

Guidance for specification option:

100% of the product can be recycled thus reducing the amount of material that is sent to landfill.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

4 %

Third party certifications

Third party certifications

BES 6001

BES 6001

BES 6001 - Responsible Sourcing of Construction Products.

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

Certificate of Compliance

Certificate of Compliance

ISO 44001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

ISO 45001 Health and Safety Management

EnMS ISO 50001

EnMS ISO 50001

ISO 50001:2018 Energy Management Systems

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001 Quality Management

Certificate of Compliance

Certificate of Compliance

PAS 2080:2023 - Carbon Management in Building and Infrastructure
