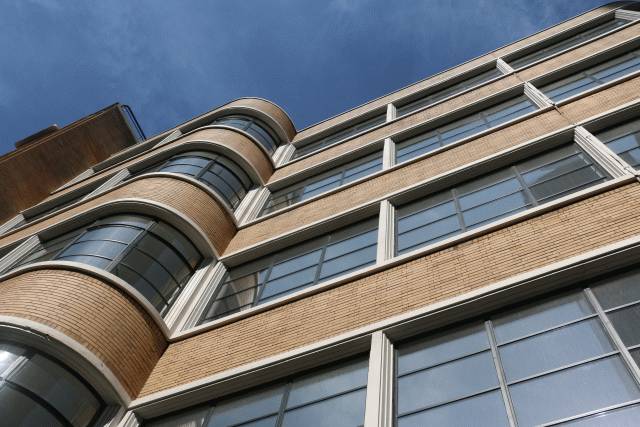

Corporate® W20 Windows
Verified by manufacturer over a year ago
Bottom hung
Bottom hung
A window and door range that offers great versatility in size and shape. The extensive range of profiles allows the creation of many styles including elaborate coupled assemblies.
Application
Particularly suitable for use in conservation areas.
Description
A range of purpose made windows, manufactured from W20 steel sections which offers versatility in both size and shape.
Features and benefits:
- The ability to reflect older styles - and the slim frame members - make this range particularly acceptable for use in conservation areas.
- Matching doors are available in the Corporate® W20 range to provide a total system solution - hot-dip galvanized and polyester powder coated doors match the slim sightlines of the windows.
- If not direct fixed, fixing brackets are designed to be bolted to frame and screw fixed to structure.
- Fixing brackets, screws and bolts, etc. are supplied by Crittall as part of the window frame.
- The type of bracket will be determined by the manufacturer after receipt of order, in consultation with the main contractor and architect.
- Glazing up to 16.4 mm thick can be accommodated.
- Delivered unglazed for site glazing. Crittall can also supply glazing units.
- The thickness of glazing units will determine the types of gaskets and beads supplied.
General information
Color | Manufacturer guidanceAvailable in a wide range of RAL and BS colours. |
Finish | Galvanized Powder-coated Guidance for specification option: Duralife polyester powder coated, available in gloss, matt or satin finish. |
Material | Steel Guidance for specification option: Hot rolled mild steel. |
Shape | Square Rectangle Circle Other Guidance for specification option: Curved on plan, curved on elevation, raked head. |
Width | 1300 mm 1525 mm 1700 mm 1800 mm 1830 mm Manufacturer guidanceAll maximum sizes are given for guidance purposes only. They assume the use of standard hardware specified for each type. Maximum sizes may not be achievable when heavy glass is used. Consult Crittall for advice. |
Height | 1200 mm 1500 mm 1700 mm 1830 mm 2440 mm Manufacturer guidanceAll maximum sizes are given for guidance purposes only. They assume the use of standard hardware specified for each type. Maximum sizes may not be achievable when heavy glass is used. Consult Crittall for advice. |
Uniclass | |
CAWS | L10/310 Steel windows L10/20 Steel windows |
Specification data - Steel window units
Dimensions and configurations | Bottom hung. |
Frame | |
Material | Hot rolled mild steel. |
Finish as delivered | |
Coating | Galvanized and Interpon D36 polyester powder coated. |
Colour | Guidance for specification option: RAL and British Standard colours as standard, insert requirements |
Glazing or infill | |
Requirements | Delivered unglazed for site glazing.Crittall can also supply glazing units. |
Hardware | Guidance for specification option: A range of casement handles and stays to suit window opening configurations. |
Fixing features | Guidance for specification option: The thickness of glazing units will determine the types of gaskets and beads supplied,. |
Size | Guidance for specification option: Insert requirement:
Manufacturer guidanceAll maximum sizes are given for guidance purposes only. They assume the use of standard hardware specified for each type. Maximum sizes may not be achievable when heavy glass is used. Consult Crittall for advice. |
Glazing | Single glazed. Guidance for specification option: Up to 16.4 mm thick. Double glazed. Guidance for specification option: Up to 16.4 mm thick. |
Texture | Matt (standard). Gloss. Satin. Manufacturer guidanceGalvanized and Interpon D36 polyester powder coated in a range of colours in matt finish. Satin or gloss finishes can be supplied. |
Accessories | Coupling bars. Guidance for specification option: Designed to suit frame size and wind load. Integral glazing bars. Pressed metal sill. Thumb-latch. Trickle ventilator. |
Ironmongery | Guidance for specification option: A range of casement handles and stays to suit window opening configurations. Consult manufacturer and insert requirements. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland Guidance for specification option: Steel. |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | kg CO₂ eq/unit Self declared Guidance for specification option: No data available. |
Recyclability | 100% Guidance for specification option: Recyclable steel. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % Guidance for specification option: 90% plus. |
