Corporate® MW40 - Windows and Doors

Verified by manufacturer over a year ago

Fixed light

Crittall Windows Ltd Variant:

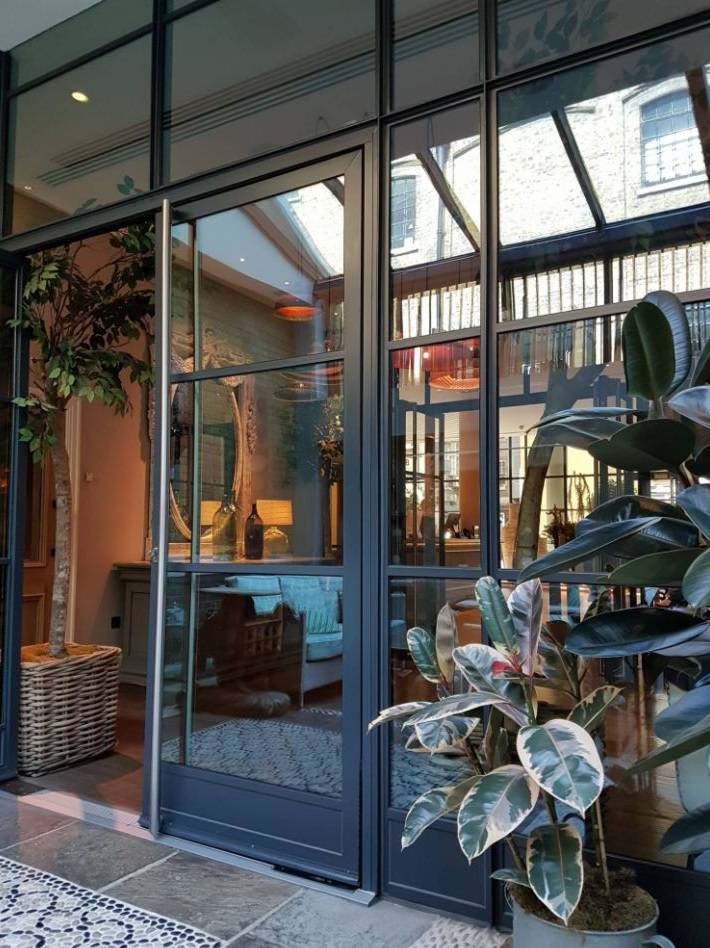

Strong, slim glazing allows for the creation of large expanses of glazing to maximise the benefit of natural daylight.

Jump to:
+44 (0)1376 530800 Website

Description

Developed as an expansion of the original Crittall Corporate® W20 range, Corporate® MW40 is designed to replicate the W20 while allowing thicker and larger pane sizes to be specified. Corporate MW40 allows the same comprehensive range of opening configurations as Corporate® W20 and now incorporates double weatherstripping.


Strong, slim framing allows for the creation of large expanses of glass that maximize the benefit of natural daylight.


Features and benefits:



  • Doors are also available in the Corporate MW40 range, providing designers with a total system solution.
  • Corporate MW40 door frames match the slim sightlines of the windows.


Dimensions:

All maximum sizes are given for guidance purposes only. They assume the use of standard hardware specified for each type. Maximum sizes may not be achievable when heavy glass is used. Consult manufacturer for advice.


Fixed light:


  • Maximum width – 3050 mm.
  • Maximum height – 3050 mm.
  • Maximum perimeter – 9760 mm.


Top Hung:


  • Maximum width – 1830 mm.
  • Maximum height – 1830 mm.
  • Maximum perimeter – 6400 mm.


Projected Top Hung:


  • Maximum width – 1700 mm.
  • Maximum height – 1500 mm.
  • Maximum perimeter – 5400 mm.


Folder opening in or out:


  • Maximum width – 1525 mm.
  • Maximum height – 2440 mm.
  • Maximum perimeter – 7620 mm.


Side Hung opening in or out:


  • Maximum width – 915 mm.
  • Maximum height – 2440 mm.
  • Maximum perimeter – 6400 mm.


Projected Side Hung:


  • Maximum width – 800 mm.
  • Maximum height – 1700 mm.
  • Maximum perimeter – 5000 mm.


Bottom Hung:


  • Maximum width – 1800 mm.
  • Maximum height – 1200 mm.
  • Maximum perimeter – 6000 mm.


Vertical Pivot:


  • Maximum width – 1300 mm.
  • Maximum height – 2440 mm.
  • Maximum perimeter – 6400 mm.


Horizontal Pivot:


  • Maximum width – 1830 mm.
  • Maximum height – 1830 mm.
  • Maximum perimeter – 6400 mm.


Single Door opening in or out:


  • Maximum width – 915 mm.
  • Maximum height – 2440 mm.
  • Maximum perimeter – 6400 mm.


Double Doors opening in or out:


  • Maximum width – 1830 mm.
  • Maximum height – 2440 mm.
  • Maximum perimeter – 8230 mm.

General information

Color

-

Manufacturer guidance

Available in a wide range of RAL and BS colours.

Finish

Gloss

Matt

Guidance for specification option:

Matt (Standard).

Satin

Manufacturer guidance

Galvanized and Interpon D36 polyester powder coated.

Material

Steel

Guidance for specification option:

Mild Steel.

Shape

-

Manufacturer guidance

Bespoke, made to order to size required.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_02 Aluminium doorsetsPrimary
Pr_30_59_98_83 Steel window units

CAWS

L10/310 Steel windows

L10/20 Steel windows

L20/480 Doorsets

L20/280 Doors

L20/55 Doorsets

Specification data - Aluminium doorsets

Configuration

Fixed light.

Doorset size

As drawing.

Guidance for specification option:

  • Maximum width – 3050 mm.
  • Maximum height – 3050 mm
  • Maximum perimeter – 9760 mm.


Frame

-

Finish

-

Coating

Galvanized and Interpon D36 polyester powder coated.

Guidance for specification option:

Insert requirements, an extensive range of RAL and BS colours available.

Texture

Gloss.

Matt (standard).

Satin.

Colour

Guidance for specification option:

Available in a wide range of RAL and BS colours. Insert requirement.

Door leaf

-

Glazing

-

Type

Double glazed.

Guidance for specification option:

Glazing from 15.8-30.8mm thick can be accommodated. Frames are delivered unglazed for site glazing. Manufacturer can supply complete with glazing units. The thickness of glazing units will determine the types of gasket and beads supplied. Consult manufacturer for further details.

Finish

-

Coating

Galvanized and Interpon D36 polyester powder coated.

Guidance for specification option:

Insert requirements, an extensive range of RAL and BS colours available.

Texture

Gloss.

Matt (standard).

Satin.

External colour

Guidance for specification option:

Available in a wide range of RAL and BS colours. Insert requirement.

Internal colour

Guidance for specification option:

Available in a wide range of RAL and BS colours. Insert requirement.

Door accessories

Not required.

Coupling bars designed to suit frame size and wind load.

Integral glazing bars.

Pressed metal sill.

Thumb-latch.

Trickle ventilator.

Hardware

Guidance for specification option:

A range of casement handles and stays to suit window opening configurations, plus a range of locks and lever handles to suit a variety of door functions.

Accessories

Not required.

Coupling bars designed to suit frame size and wind load.

Integral glazing bars.

Pressed metal sill.

Thumb-latch.

Trickle ventilator.

Fixing

If not direct fixed, fixing brackets are designed to be bolted to frame and screw fixed to structure.

Guidance for specification option:

Fixing brackets, screws and bolts are supplied by manufacturer as part of the window/door frame. The type of bracket will be determined by manufacturer after receipt of order, in consultation with the main contractor and architect.

Operation

Opening in or out.

Sustainability data

Contains Red List materials

No

Country of material origin

Switzerland

Country of product manufacture

United Kingdom

Recyclability

100%
