Corex A1 Shaftwall
Verified by manufacturer 1 month ago
A1 non-combustible fire-resistant gypsum board with multiple fire rated system solutions.
Application
- Suitable for all building types including schools, hospitals, hotels and commercial and business centres.
- Encasement of load-bearing steel columns and beams. The A1 Corex thickness will depend on the steel type and number of surfaces to be encased, consult manufacturer.
- Shaft wall and smoke shaft fire-rated solutions – EI 60/90/120.
Please contact Kemwell PFP for further information on this product.
Description
Kemwell Corex A1 is a non-combustible fire-resistant gypsum board, that has multiple fire tested solutions ranging from structural steel protection to ceiling applications.
Features and benefits:
- Steel encased with Kemwell Corex A1 can maintain its load-bearing capacity for between 60 and 120 minutes.
- The core is reinforced with special additives to enhance fire resistance.
- Both sides are covered with a completely non-flammable fibreglass mat.
- The board is classified as A1 non-combustible in accordance with EN 13501-1.
- A1 COREX board is certified to ETA, GREENGUARD and EPD.
- Can be installed up to 6 months early in the building program prior to the building being weather tight.
- No mineral wool insulation required.
- Joints taped and filled as normal on outer layer.
Boards can be fixed using staples (length suitable to board thickness) and Paslode Impulse IM200 / 50 S16 gun. For a more traditional fix steel angles and screws can also be used. Please contact Kemwell Fire for further information relating to the fixing type and method of these boards.
General information
Color | White |
Material | Gypsum Fiber-glass |
Shape | Rectangle |
Length | 2000 mm |
Width | 1200 mm |
Height | 15 mm 20 mm 25 mm |
Uniclass | |
CAWS | K10/125 Metal stud partition system K11/796 Metal stud partition system K10/30 Metal stud K10/41 Wall lining system (metal furrings) K10/35 Wall lining system (metal framing) K10/50 Suspended ceiling system on metal framing K10/265 Encasement system (frameless) |
Specification data - Gypsum board partition systems
System performance | To EN 13501-2:2016. |
Framing | DU 75 track and DC 75 studs.Manufacturer guidance
|

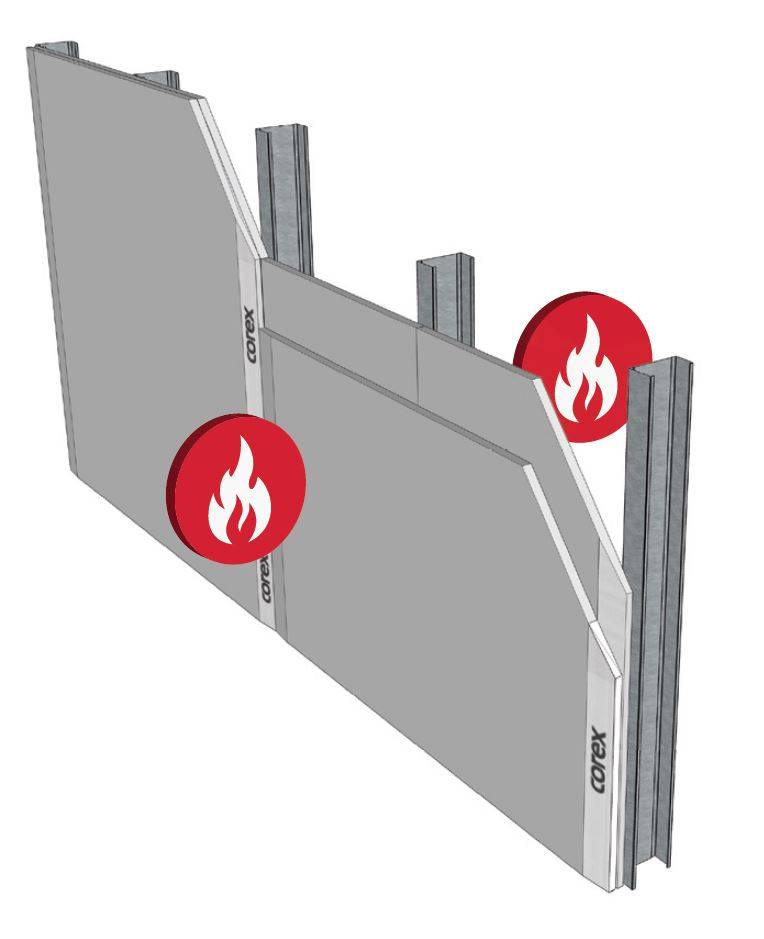

Linings | 15 mm.Guidance for specification option: A double layer of 15 mm A1 COREX provides 60 minutes (EI60) fire resistance from both sides (according to Efectis classification report). 20 mm.Guidance for specification option: A double layer of 20 mm A1 COREX provides 90 minutes (EI90) fire resistance from both sides (according to Efectis classification report). 25 mm.Guidance for specification option: A double layer of 25 mm A1 COREX provides 120 minutes (EI90) fire resistance from both sides (according to Efectis classification report). Manufacturer guidanceSystem uses two layers of A1 COREX board. |
Fasteners | Coarse Drywall Screws. |
Joint treatment | Joints must be taped and filled as normal on outer layer. |
Finish | Plaster finish.Guidance for specification option: COREX A1 surfaces can finish with plaster. PVA primer coat should be applied before plastering the surfaces. Paint finish.Guidance for specification option: COREX A1 surface can finish direct applied paint (straight to the board). Manufacturer guidanceA1 COREX surface is not smooth surface as paper faced plasterboard surface. Plaster can be applied to the boards to provide a smooth surface. PVA primer coat should be applied before finishing the surfaces. |
Reaction to fire | To EN 13501-1, Class A1. Guidance for specification option: Non-combustible. |
Sustainability data
Material | Gypsum Fiber-glass |
Literature
Kemwell Corex A1 Technical Data Sheet
Kemwell Corex A1 Material Safety Data Sheet
Kemwell Corex Shaftwall Information Sheet
KEM-PFP-CA1-SHAFT-02 - Corex A1 - Shaftwall Details - Base Track Detail (R5)
KEM-PFP-CA1-SHAFT-04 - Corex A1 - Shaftwall Details - External Corner Detail R3
KEM-PFP-CA1-SHAFT-06 - Corex A1 - Shaftwall Details - Door Jamb Detail (R3)
KEM-PFP-CA1-SHAFT-03 - Corex A1 - Shaftwall Details - Head Track Detail (R6)
KEM-PFP-CA1-SHAFT-01 - Corex A1 - Shaftwall Details - Isometric Detail (R5)
KEM-PFP-CA1-SHAFT-05 - Corex A1 - Shaftwall Details - Tee Junction (OP) - R3
KEM-PFP-CA1-SHAFT-07 - Corex A1 - Shaftwall Details - Service Penetration (R3)
KEM-PFP-CA1-SHAFT-08B - Corex A1 - Shaftwall Details - EI60 Height Extension R4
KEM-PFP-CA1-SHAFT-08C - Corex A1 - Shaftwall Details - EI90 Height Extension R4
KEM-PFP-CA1-SHAFT-08D - Corex A1 - Shaftwall Details - EI120 Height Extension R4
Kemwell Corex A1 EPD
