CORE Drive – 40-40 - Paving sheet
Verified by manufacturer 4 days ago
Gravel driveway stabilizer.
Application
A gravel stabilisation system that has been designed to provide the ultimate gravel surfacing experience. Using this system when creating a new gravel driveway will allow all of the aesthetic beauty that gravel provides - but minimises the issues that come with it. No more puddles, no more ruts, no more weeds and the gravel stays locked into the cells to create a hard standing fi nish. Also a great option for shed bases, hot tub bases and gravel patios due to its weight bearing capabilities.
Suitable for:
Driveways, Gravel Tracks, Patios, Shed Bases, Hot Tub Bases.
Description
CORE DRIVE gravel stabilisation grid provides hassle-free gravel paving for all types of vehicle or pedestrian traffic with no compromise in strength and durability.

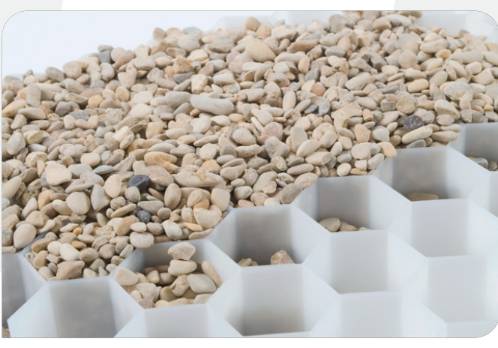

Use as part of a natural porous paving system, just add gravel to the panels of hexagon cells – this offers an eco-friendly surface that costs less than asphalt, concrete, or block pavers.
Features and benefits:
- Keep your gravel in place and reduce gravel consumption by up to 50%.
- Create a hard standing surface with the beauty of gravel.
- Minimal maintenance compared to loose gravel.
- No more ruts, dips or puddles.
- Membrane provides effective drainage and stops weeds.
- Geotextile Overlap: Two sides of the grid.
- Cell wall thickness: 2 mm.
- Cold Temperatures: Retains flexibility.
General information
Color | White Black Grey |
Finish | Manufacturer guidanceGrid. |
Material | High density polyethylene (HDPE) |
Shape | Rectangle |
Length | 1600 mm |
Width | 1200 mm |
Height | 40 mm |
Warranty description | 15 year |
Uniclass | |
CAWS | Q25/350 Plastics pavers |
Specification data - Plastics cellular pavers
Classification data | |
Physical properties | |
Material | High Density Polyethylene (HDPE). Guidance for specification option: 0.95 g/cm³. |
Colour | Black. Guidance for specification option: Made of recycled High Density Polyethylene and is a great choice for the darkest aggregates. Grey. Guidance for specification option: Made of recycled High Density Polyethylene and is suitable for darker aggregates. White. Guidance for specification option: Made of virgin High Density Polyethylene and is the best choice for lighter aggregates. |
Top surface finish | Aggregate. |
Profile | |
Paver type | Regular plan form, hexagon. |
Interlocking features | Socket and pin (all four sides). |
Dimensions | |
Plan size | 1600 x 1200 mm. |
Thickness (minimum) | 40 mm. |
Profile paver type | Angular aggregates up to 20 mm with white 50 g/m² non-woven weed membrane heat welded to the underside of the grid. |
Chemical resistance | Very High. |
Flexibility | High. |
TensileStrength | 65 N/5cm (EN 29073/3). |
Resistance to tearing | 70 N (DIN 53363). |
Bearing capacity | 90 tonnes/m² (unfilled). 450 tonnes/m² (filled). |
Sustainability data
Material | High density polyethylene (HDPE) |
Literature
CORE DRIVE 4040 Brochure
