Continuous Ventilated Ridge - Ridge Tiles

Verified by manufacturer 11 months ago

Swisspearl

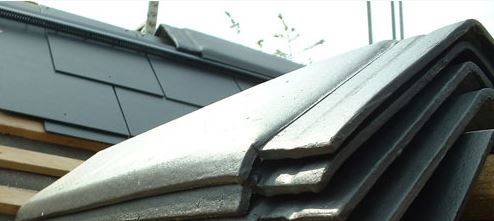

One piece, lightweight, secure roof ridge units.

Jump to:
BIM object icon
+44 (0)203 3722300 Website

Application

Suitable for roof pitches.

Description

Dry fixed continuously ventilated, one piece, lightweight, secure ridge units with a ridge angle that corresponds with roof pitch to create an unobtrusive roofline.


Features and benefits:

  • Enables roof specification to comply with BS 5250:2011: Code of practice for control of condensation in building.
  • Lightweight.
  • Mechanically fixed.
  • Cut and drilled with hand tools.
  • Material and colouration matches fibre cement slates.

General information

Color

Choice of six colours.

Other

Material

Fibre cement

Shape

Triangle

Uniclass

Pr_30_59_29_71 Roof ridge ventilator tilesPrimary

CAWS

H61/840 Ventilator slates

H61/86 Ventilator slates

Product range

Ventilated Ridge

Specification data - Roof ridge ventilator tiles

Purpose

Ventilation of moisture bearing air through the apex of the roof.

Ventilation opening

5880 mm² per unit.

Colour

Autumn Brown.

Blue-black.

Graphite.

Russet.

Standard.

Welsh Blue.

Product Reference

Continuous Ventilated Ridge

Ridge angle

75°.

For 52.5° roof pitch.

90°.

For 45° roof pitch.

105°.

For 37.5° roof pitch.

120°.

For 30.5° roof pitch.

135°.

For 22.5° roof pitch.

Weight

3.24 kg.

Sustainability data

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

1850 kg CO₂ eq/m³

Recyclability

0

Recycled content

0 %
