Continuous Rafter Tray - Eaves Level Ventilation

Verified by manufacturer 30 days ago

RAFT300

Easy-Trim Roofing and Construction Products Ltd Variant:

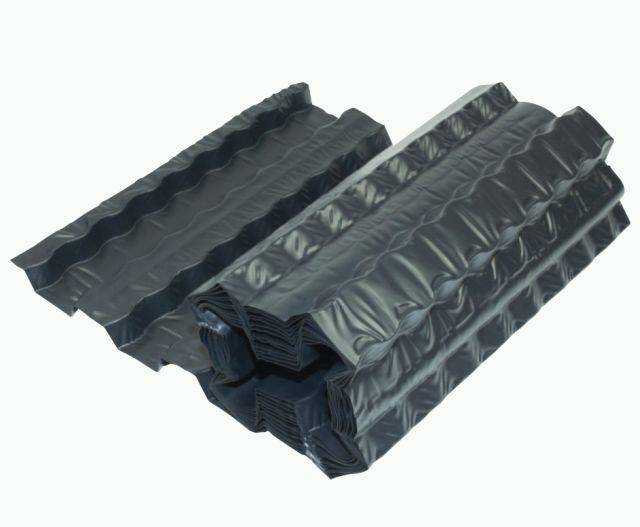

Rafter roll-out tray used to maintain ventilation paths at the eaves and provide a barrier between the underlay and the roof felt.

Jump to:
01282 930680 Website

Application

Suitable for:

  • New builds and refurbishment projects.
  • Pitches of 15º or greater.
  • Suitable for four common rafter centres between 300 - 800 mm.

Description

Designed for use in roofs with insulation at rafter level. The roll prevents the loft insulation from being pushed up against the underside of the roofing felt, which can lead to condensation in the roof space. The curved shape of the ribs also allows a constant airflow through the roof space, guaranteeing adequate ventilation.


Features and Benefits:

  • Flexible and light weight.
  • Highly durable.
  • Quick and easy to install.
  • Available to fit 4 common rafter centres (300/400/600/800mm) .


Quality Standards:

  • Conforms to BS 5534.2014 Annex A : Slating & Tiling for Pitched Roofs & Vertical Tiling.
  • Conforms to BS 5250: For Roof Space Ventilation (Management and Moisture in Buildings.
  • Satisfies all NHBC requirements.

General information

Color

Black

Shape

Rectangle

Length

6000 mm

Width

300 mm

400 mm

600 mm

800 mm

Uniclass

Pr_30_59_29_64 Plastics rafter ventilator traysPrimary

CAWS

H60/355 Ventilated eaves with separated grilles/ trays

H60/47 Eaves

H61/355 Ventilated eaves with separated grilles/ rays

H61/47 Eaves

H62/355 Ventilated eaves with separated grilles/ trays

H62/47 Eaves

H65/355 Ventilated eaves – separated grilles/ trays

H65/47 Eaves

Product range

Eaves Level Ventilation

Specification data - Plastics rafter ventilator trays

Dimensions

300 x 6000 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
