Continuous Louvre Blade Linius - Aluminium Louvre System

Verified by manufacturer 6 days ago

Renson Fabrications Ltd

Continuous aluminium louvre system.

Jump to:
+44 (0)1622 754123 Website

Application

  • Ventilation.
  • Screening/ screening against the weather.
  • Acoustics.
  • Aesthetic cladding.
  • Interior cladding.

Description

The continuous louvre system consists of a support structure to which blades are fitted. The support structure carries the complete louvre assembly and is formed by vertically or horizontal placed mullions fixed by brackets at set distances.


Features and benefits:

  • Support structure formed by vertically or horizontal placed mullions fixed by brackets at set distances.
  • Depending on the structure, Renson® offers different mullion types.
  • Blade supports are permanently fixed to the mullions allowing the blades to be clip-locked onto their supports.
  • Simple and well tested method of construction.

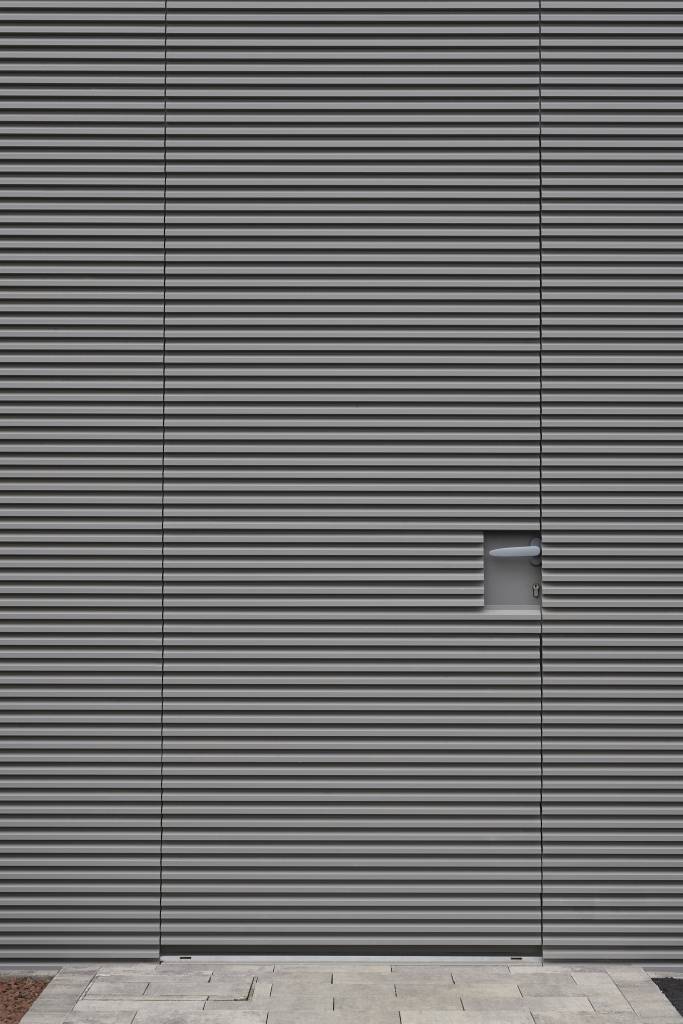

  • Mitred corners, doors, vermin, bird or insect screens can all be incorporated.
  • Depending on the application, different constructions are possible.
  • Sections of extruded ALMgSi0.5 aluminium.
  • Water-resistant ventilation blades.

General information

Color

Other

Guidance for specification option:

RAL colours.

Finish

Powder-coated

Anodized

Mill

Material

Aluminium

Shape

Square

Rectangle

Circle

Other

Guidance for specification option:

Any shape available.

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

25 year

Uniclass

Ss_25_50_45_45 Louvre screen systemsPrimary

CAWS

L10/54 Louvres

H11/140 Louvres

L10/650 Metal louvres

Product range

Continuous Louvres System / Standard Blades

Specification data - Louvre screen systems

Screen framing

Not required.

Aluminium louvre frame.

Guidance for specification option:

  • Optional frame profiles.
  • Extruded aluminium mullions on which the blade supports and blades are fixed.
  • Extruded aluminium alloy (EN AW 6063 T66).
  • Anodized or polyester powder-coated finish.
  • Consult manufacturer's literature for details.

Louvres

-

Type

Extruded aluminium standard blade - L.033.01.

Extruded aluminium standard blade - L.050.00.

Extruded aluminium standard blade - L.066.01.

Extruded aluminium standard blade - L066.06.

Extruded aluminium standard blade with large span - L.120.01.

Extruded aluminium standard blade (combinable blade with acoustic system) - L.150.DAC.01.

Extruded aluminium blades with large free area - L.050HF.

Extruded aluminium blades with large free area (combinable blade with acoustic system) - L.050WS.

Extruded aluminium blades with large free area - L.060HF.

Extruded aluminium blades with large free area - L.120.01.

Extruded aluminium labyrinthe blade - L.033.08.

Extruded aluminium V-blade - L.033V.

Extruded aluminium V-blade - L.066V.

Extruded aluminium acoustic blade - L.060AC.

Extruded aluminium acoustic blade - L.150ACS.01.

Extruded aluminium acoustic blade - L.150ACL.01.

Extruded aluminium aesthetic blade (rectangular blade) - L.066P.

Extruded aluminium aesthetic blade - SE.096.

Extruded aluminium aesthetic blade - SE.130.

Extruded aluminium aesthetic blade - SE.176.

Extruded aluminium closed blades - L.033CL.

Extruded aluminium closed blades - L.050CL.

Extruded aluminium blade with extended nose (project profile) - L.050.25.

Extruded aluminium blade soft line (project profile) - L.066S.

Extruded aluminium blade - closed blade (project profile) - L.066CL.

Extruded aluminium blade with integrated insect mesh (project profile) - L.066 IM1.

Extruded aluminium blade with integrated insect mesh - L.033IM1.

Extruded aluminium blade with integrated insect mesh - L.050IM1.

Extruded aluminium blade with integrated insect mesh - L.050IM2.

Extruded aluminium weatherable blade (high performance) - L.050W / L.050WV.

Manufacturer guidance

Consult manufacturer's literature for louvre blade details.

Operation

Fixed.

Blanking panels

Guidance for specification option:

Consult manufacturer for details and insert requirements or omit.

Acoustic panels

-

Facing

-

Manufacturer guidance

  • The acoustic continuous louvre system consists of a support structure, acoustic blades and blade supports.
  • The acoustic blade is filled with sound absorbing and non-combustible mineral wool.
  • Consult manufacturer for details and insert requirements.

Banked

-

First bank

Aluminium louvre panel units.

Second bank

Guidance for specification option:

Insert requirements or omit.

Installation fasteners

Fixing brackets.

Guidance for specification option:

  • U-shape mounting bracket LZ.4210 for supporting structure Linius.
  • U-shape mounting bracket SD.086.11 for supporting structure Sunclips.
  • LZ.4215.
  • Angle bracket LZ.4203 and LZ.4209.
  • Consult manufacturer and insert requirements.

System accessories

Not required.

Stainless steel insect mesh, 2.3 x 2.3 mm.

Stainless steel bird mesh, 6 x 6 mm.

Stainless steel vermin mesh, 20 x 20 mm.

Sill profile LZ.4140 and bracket LZ.4201.

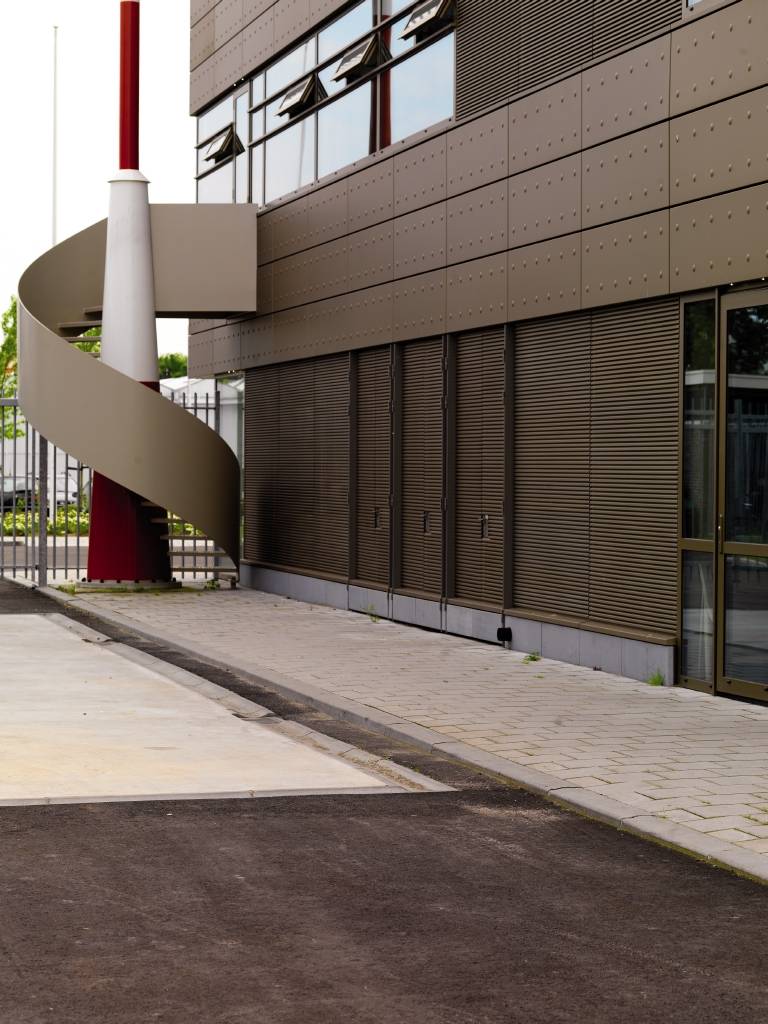

Single door, outward opening.

Single door, inward opening.

Double door, outward opening.

Double door, inward opening.

Door handle, standard solution.

Door handle, single handle.

Door restrictor.

Curved blades.

Manufacturer guidance

Consult manufacturer's literature for details.

Surface finish

Anodized.

Guidance for specification option:

  • Anodized in natural colour F1 (20 micron).
  • Pre-treated and anodized.

Powder-coated.

Guidance for specification option:

  • Powder-coated in RAL colours (60 to 80 micron).
  • Aluminium profiles are pre-treated to ensure a firm powder coating, and then powder-coated.
  • Insert requirements.

Blades

Not required.

Curved blades.

Guidance for specification option:

  • Blades L.033.01, L.50.00 and L.050HF have a lacquered finishing and can be curved, with a minimum outer radius of 800 mm.
  • Blade L.066.01 can be curved, with a minimum radius of 2000 mm.
  • All these blades can be curved, with an outer radius (convex curve) as well as an inner radius (concave curve).
  • Consult manufacturer and insert requirements.

System depth

Guidance for specification option:

Consult manufacturer's literature and insert requirements.

Corners

Not required.

Expansion.

Expansion joint included in mitre.

Welded corner.

Manufacturer guidance

Mitred corners.

Consult manufacturer's literature for details.

System

Not required.

Linius® - unitized system.

Guidance for specification option:

  • Allows an entire louvre system to be divided into modules, which arrive on site in pre-assembled condition.
  • Maximum dimensions: 4 m² per element – 9 to 16 kg/m².
  • All Linius® range blades are suitable.
  • Consult manufacturer and insert requirements.

Linius® - stand alone support structure.

Guidance for specification option:

  • Used for freestanding louvre systems of limited sizes and/ or wind loads where an additional primary steel structure is rendered unnecessary by a self-supporting aluminium structure.
  • Consult manufacturer and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

Belgium

Country of product manufacture

United Kingdom

Material

Aluminium

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

80 %
