Verified by manufacturer 3 months ago

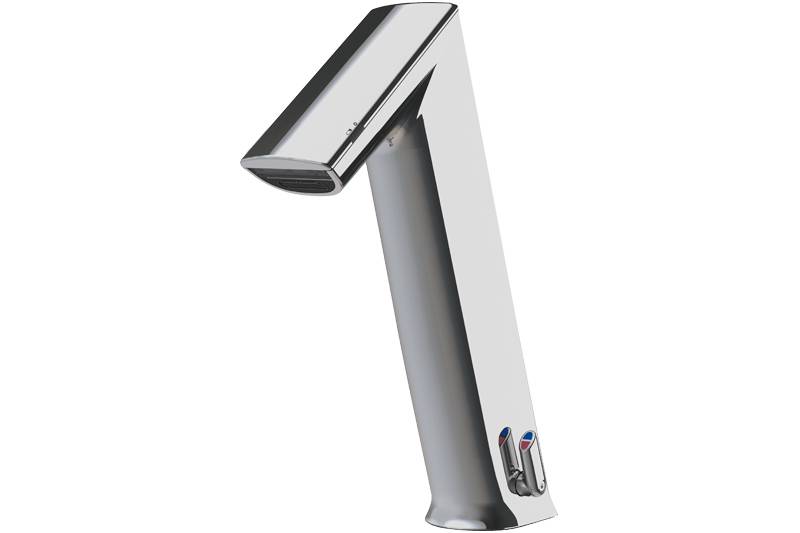

163.000.11 - GH10, battery, temperature mixing
Range of tall (252 mm high) touchless, electronically controlled lavatory faucets.
Touchless, electronically controlled lavatory faucets.
Range of 252 mm high touchless, electronically controlled lavatory faucets.
Features and benefits:
Note: No drain assembly option is included; if this is a requirement, see the GM or GH ranges (specified separately).
Color | Silver |
Finish | Chrome |
Material | Brass |
Shape | Other |

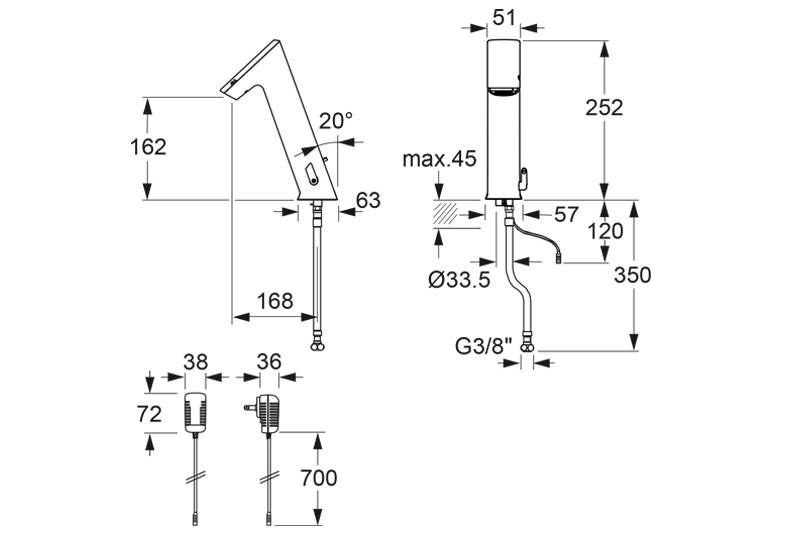

Length | 168 mm Guidance for specification option: Water supply to spout. Consult manufacturer for further details. |
Width | 51 mm |
Height | 252 mm Guidance for specification option: Visible faucet height. Basin to spout height: 162 mm. |
Warranty description | Two year Guidance for specification option: Consult manufacturer for details. |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Standards | To DIN EN 200. |
Approvals | CE marked. |
Form | Automatic-action taps (touchless), 252 mm high.Guidance for specification option: Visible height only; consult manufacturer's literature for full details. Basin to spout height: 162 mm. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 5.7 L/minute at 3 bar.Guidance for specification option: Operating pressure: 0.3–10 bar. Manufacturer guidanceCan be adjusted to 1.9 L/minute with selected accessories - consult manufacturer for details. |
Water supply temperature (maximum) | 80°C. |
Integral accessories | IR sensor; flexible high-pressure hoses.Guidance for specification option:
|
Accessories | Guidance for specification option: A range of accessories is available; consult manufacturer for options and insert requirements or omit. Manufacturer guidanceA comprehensive list of replacement parts are also available; consult manufacturer for details. |
Power supply | 4 x 1.5 V alkaline AA batteries. Guidance for specification option: Lifetime up to four years. |
Connections | Angle valve: G 1/2". |
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Material | Brass |
Recyclability | 100% |
