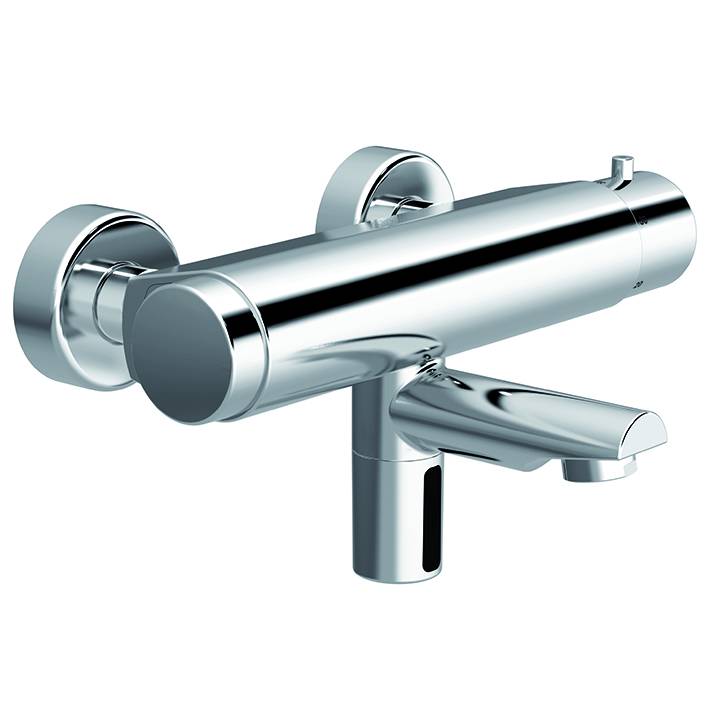

CONTI+ Lino Exposed Wall-Mounted Faucet With Thermostat, G3/8

Verified by manufacturer 3 months ago

110.305.11 - Lino exposed wall-mounted faucet W35

Ecoprod Technique Variant:

Range of exposed, touchless wall-mounted electronically controlled lavatory faucets.

Jump to:
01483 773373 Website

Application

For use in public bathrooms.

Description

Range of exposed, touchless wall-mounted electronically controlled lavatory faucets with thermostat and IR sensor.


Features and benefits:

  • Sturdy version, faucet body made of brass, chromed as standard.
  • Reliable solenoid valve ROBUST (minimal level of water pressure surge).
  • Built in 0.5 mm mesh filter.
  • Stiff spout.
  • Dual infrared sensors (with automatic setting feature or close detection), microprocessor.
  • Temporary-off (cleaning) and continuous water flow time (filling of basin) activated by Click-plus.
  • Continuous water flow adjustable with Click (for 110.305.11, 110.306.11 only).
  • Continuous-on and hygienic flush time activated by Touch (for 110.307.11, 110.308.11 only).
  • Temperature adjustable with thermostat-cartridge.
  • With anti-scalding and auto-thermic protection.
  • 12, 24 or 48-hour hygienic flush.
  • Compatible with CNX and Service APP: control of stored operational data, settings and control functions.

General information

Color

Silver

Finish

Chrome

Gloss

Material

Brass

Shape

Other

Length

200 mm

Guidance for specification option:

Water supply to spout. Consult manufacturer for further details.

260 mm

Guidance for specification option:

Water supply to spout. Consult manufacturer for further details.

Width

260 mm

Height

60 mm

Guidance for specification option:

Base to spout height.

105 mm

Guidance for specification option:

Base to spout height.

Warranty description

Two year

Uniclass

Pr_40_20_87_98 Washbasin tapsPrimary

CAWS

N13/335 Washbasins

N13/30 Washbasins

Specification data - Washbasin taps

Standards

To DIN EN 200.

Form

Automatic-action taps (touchless), wall mounted.

Materials

-

Body

Brass.

Finish and colour

Chrome-plated.

Flow rate (maximum)

5 L/min at 3 bar.

Guidance for specification option:

Operating pressure: 0.3–10 bar.

Water supply temperature (maximum)

80°C.

Integral accessories

IR sensor.

Power supply

6 V Lithium CRP2.

Guidance for specification option:

Lifetime up to four years.

Connections

Valve connection: G3/8".

Accessories

Not required.

S-connector with stop valve, for surface-mounted faucets, chrome.

Guidance for specification option:

550.016.11.

Temperature handle 38°C with override button.

Guidance for specification option:

550.069.11.

Battery exchange kit, waterproof coating.

Guidance for specification option:

CONO560006.

BLE Converter for CONTI+ Service APP (BLE converter).

Guidance for specification option:

CONO260000.

Spout length

200 mm.

Height

105 mm.

Guidance for specification option:

Base to spout height.

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Brass
