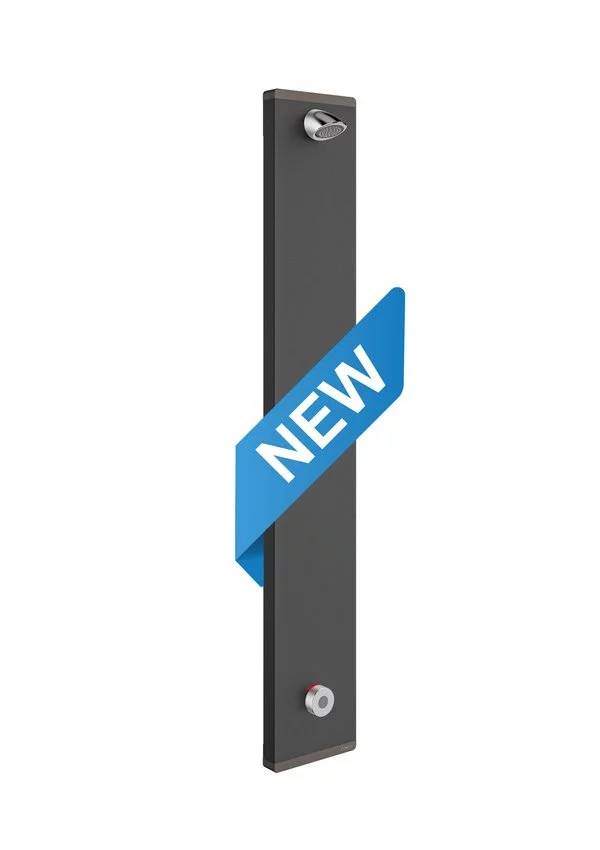

CONTI+ CONPRIMUS Shower Panel Stainless Steel With APP Thermostat-E, E-control, KWH-Flush, Cleaning Stop
Verified by manufacturer 1 month ago
CONE1181219568 - CONPRIMUS shower panel
CONE1181219568 - CONPRIMUS shower panel
Stainless steel shower panel with electronically controlled mixing device.
Application
For use in commercial, semi-public and public sanitary facilities.
Description
Stainless steel shower panel with electronically controlled mixing device, including scald protection.
Features and benefits:
- Pre-installed electronic mixing unit thermostat-E.
- Proportional valve mixing unit at shower head height.
- Electronic control unit E-control, turn/ push button for mixing and start/ stop function.
- Electronic scald protection.
- Temperature adjustment with LED display.
- Non-linear temperature adjustment.
- Adjustable shower start temperature.
- Time-adjustable memory temperature when showering stops.
- Pre-equipped for shower heads with plug-in connection.
- Electronic hygiene rinsing (mixed water temperature).
- Electronic hygiene flushing (cold water side) via Service APP.
- Integration into the CNX Water Management System.
- Electronic protection type rating of IP68.
General information
Color | Silver White Black Other Guidance for specification option: RAL colour. |
Finish | Stainless steel |
Material | Stainless steel |
Shape | Rectangle |
Length | 40 mm Guidance for specification option: Depth |
Width | 220 mm |
Height | 1400 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N13/42 Shower mixer valves N13/375 Shower units N13/40 Shower units |
SKU Code | CONE1111219580, CONE1111219568, CONE1211219580, CONE1211219568, CONE1171219568, CONE1171219580, CONE1271219568, CONE1271219580, CONE1181219580, CONE1181219568, CONE1281219580, CONE1281219568 |
Specification data - Shower fittings package
Classification data | |
Form | Wall-mounted shower panel with thermostatic mixing. |
Materials | |
Body | Stainless steel. |
Finish and colour | Graphite black. |
Flow rate (maximum) | 0.15 L/s (flow rate controller). Guidance for specification option: Operating pressure: 2–5 bar. |
Water supply temperature (maximum) | 70°C. Guidance for specification option: (Short-term for TD 80°C). |
Integral accessories | CONHEAD rain shower head SHORTY, for shower elements, chromed brass, DN15. Guidance for specification option: CONO030010 . |
Power supply | Mains operated. Guidance for specification option: 30 V/DC power supply unit in the control units 64 and 150 and additional 24 V/DC auxiliary power supply. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Stainless steel |
