Conservation Folding Timber Doors - Timber/ Wooden Conservation Folding Door

Verified by manufacturer 2 months ago

Mumford & Wood Ltd

Timber/ Wooden Conservation folding doorsets with traditional profiles to complement the Sash and Casement Window products.

Jump to:
BOS
+44 (0)1621 818155 Website

Application

Suitable for any residential, commercial properties and conservation areas.

Description

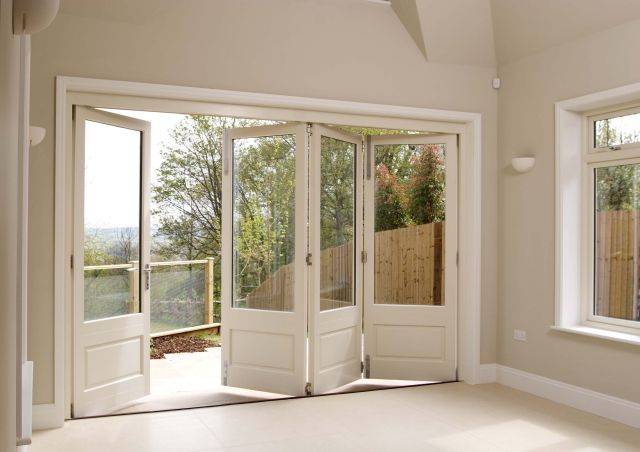

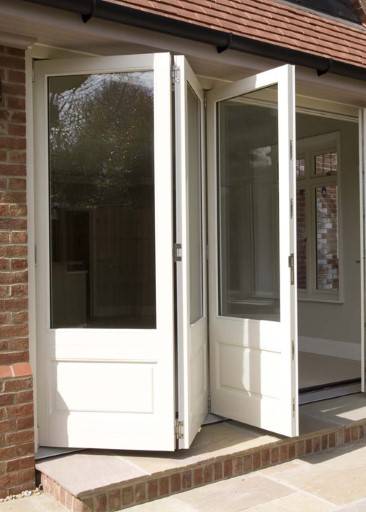

Open up to the outside with our timber Bifold Doors. Available up to 5.9 meters wide x 3 meters high our timber Bifold Doors can enhance the enjoyment of your garden bringing the outside in. Operated using a high quality top hung system our Bifold Doors open out to maximise the space inside the room.


Suited to match all other timber double glazed doors within the Conservation range, Mumford & Wood Bifold Doors are equipped with multipoint locking systems and can be tailored to suit your design requirements using the various glazing bar and moulding options along with many traditional panel styles.

General information

Color

White

Manufacturer guidance

Colours from the RAL classic range, colour matching and stains also available.

Finish

Painted

Stained

Material

Wood

Timber

Shape

Rectangle

Width

Bespoke

Guidance for specification option:

Maximum.

Height

Bespoke

Guidance for specification option:

Maximum.

Warranty description

-

Manufacturer guidance

Timber: 30; Glazing, ironmongery and seals: 10; Paint finish: 10; Stain finish: 5.

Uniclass

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/530 Sliding folding external doors

Product range

Conservation Range

Specification data - Sliding door and partition sets

Performance

PAS24:2016., U Value of 1.5 or better subject to chosen specification.

Arrangement

Open out.

Manufacturer guidance

Insert requirements or refer to a drawing or schedule.

Door leaves

-

Construction

Engineered Redwood frame and door leaves and aluminium cill.

Engineered Hardwood Red Grandis.

Accoya.

Manufacturer guidance

Engineered clear grade knot free timber, all FSC certified. Chain of Custody can be specified.

Finish and colour

Three coats of spray applied water based micro-porous paint.

Three coats of spray applied water based micro-porous stain.

RAL Classic Chart.

Colour matched.

Dual finish.

Operation

Manual.

Guidance for specification option:

Top hung outward opening operating gear with multi point locking system.

Hardware

Polished Brass straight lever handle.

Polished Brass swan neck lever handle.

Polished Chrome straight lever handle.

Polished Chrome swan neck lever handle.

Satin Chrome straight lever handle.

Satin Chrome swan neck lever handle.

Black Iron Lever handle.

Pewter Lever handle.

Other.

Guidance for specification option:

Alternatives available upon request, consult manufacturer.

Manufacturer guidance

Selected Croft ironmongery available on request.

Frame section

112 x 139 mm (head width x depth), 68 x 139 mm (jamb width x depth).

Door leaf section

94 x 57 mm with 189 mm bottom rail.

Manufacturer guidance

Stile width x depth.


Sill section (height x depth)

56 x 188 mm.

Frame profile moulding

Ovolo.

Lambs tongue.

Square.

Panels

28 mm insulated flat panel.

28 mm insulated flat panel with bolection moulding.

28 mm insulated grooved panel.

28 mm insulated grooved panel with bolection moulding.

45 mm insulated raised and fielded panel.

Internal Glazing Bars and/or Perimeter Bead

18 mm Ovolo.

18 mm Fine lambs tongue.

18 mm Square.

22 mm Lambs tongue.

22 mm Ovolo.

Show more

External Glazing Bars

18 mm chamfered putty bar.

22 mm chamfered putty bar.

28 mm chamfered putty bar.

6 mm ‘antiqued’ lead to internal and external faces of the outer pane.

9 mm ‘antiqued’ lead to internal and external faces of the outer pane.

Show more

Glass units and whole product U-values/ G-values

24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Low E 1.2.

24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Low E 1.0.

24.8 mm Acoustic Double glazed unit comprising 6.8 mm Sound Control Laminate / 14 mm Argon/ 4 mm Tough Low E 1.2.

24.8 mm Acoustic Double glazed unit comprising 8.8 mm Sound Control Laminate / 10 mm Krypton/ 6 mm Tough Low E 1.0.

27.6 mm Enhanced Acoustic Double glass unit comprising 10.8 mm Sound Control Laminate / 10 mm Krypton / 6.8 mm Sound Control Laminate Low E 1.0.

Show more

Manufacturer guidance

Internally dry glazed and vented with glazing tapes in accordance with Glass and Glazing Federation requirements.

Perimeter spacer bar

Black warm edge perimeter spacer and integral glazing bars within unit cavity.

Guidance for specification option:

24 & 24.8 glazing.

White warm edge perimeter spacer and integral glazing bars within unit cavity.

Guidance for specification option:

24 & 24.8 glazing.

Black aluminium perimeter spacer.

Guidance for specification option:

14 & 14.8 glazing.

White aluminium perimeter spacer.

Guidance for specification option:

14 & 14.8 glazing.

Operating hardware finish

Black.

Polished Brass.

Polished Chrome.

Satin Chrome.

Weather seal (factory applied)

Deventer TPE Thermoplastic Elastomer.

Sustainability data

Country of product manufacture

United Kingdom

Recyclability

-

Manufacturer guidance

Refer to manufacturer website for product end of life instructions.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC

IFC2X3

2

Revit

Revit 2015

2

Literature

Site instruction, aftercare manual & warranty

Site instruction, aftercare manual & warranty
