Conservation Entrance Timber Doors - Timber/ Wooden Conservation Doors

Name: Conservation Entrance Timber Doors - Timber/ Wooden Conservation Doors
Brand: Mumford & Wood Ltd
SKU: o5FCh9TaRRyAXq3875zBiD

NBS BIM object standard

Verified by manufacturer 4 months ago

Mumford & Wood Ltd

Third party certifications:

QA Certificate
Certificate type

Timber/ Wooden Conservation Entrance doorsets in traditional profiles to complement the Conservation Sash and Casement Window products.

Jump to:

+44 (0)1621 818155 Website

Application

Suitable for any residential, commercial properties and conservation areas.

Description

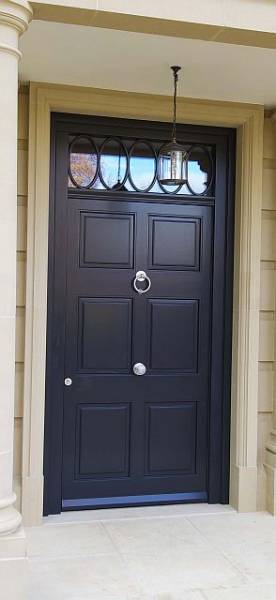

Our timber Entrance Doors are classically styled with wide timber sections creating the appearance and feel of traditional grand entrance doors, while being fully equipped with integrated high security locking systems.

Our Conservation Entrance Door is available in a wide range of styles and finishes with numerous glazing and panel options. So, whether you are looking for a traditional 6 panel Georgian front door, a grand Victorian front door, a stained planked cottage front door, or a contemporary wooden front door, we can tailor to suit your taste.

General information

Color Colours from the RAL classic range, colour matching and stains also available.	White
Finish	Painted Stained
Material	Wood Timber
Shape	Rectangle
Width	Bespoke
Height	Bespoke
WarrantyDescription Timber: 30; Glazing, ironmongery and seals: 10; Paint finish: 10; Stain finish: 5.	-

Uniclass	Pr_30_59_24_97 Wood doorsetsPrimary
CAWS	L20/420 Wood doorsets L20/55 Doorsets

Product range	Conservation Range

Specification data - Wood doorsets

Doorset size Insert requirements or refer to a drawing or schedule.	Up to 1300 x 3000 mm.
Performance	-
Thermal	1.5 or better subject to chosen specification.
Intruder resistance	-
Minimum requirement	PAS24:2016.
Accessibility	Part M compliancy available.
Frame	-
Species Engineered clear grade knot free timber, all FSC certified. Chain of Custody can be specified.	Engineered Redwood frame with Red Grandis sashes with Hardwood Sapele cill. Engineered Hardwood Red Grandis. Accoya.
Perimeter seals or inserts	Deventer TPE Thermoplastic Elastomer.
Finish	Three coats of spray applied water based micro-porous paint. Three coats of spray applied water based micro-porous stain.
External	White (RAL 9003). Colour from RAL classic range. Insert requirement. Colour match. Insert requirement. Dual finish. Insert requirement.
Internal	White (RAL 9003). Colour from RAL classic range. Insert requirement. Colour match. Insert requirement. Dual finish. Insert requirement.
Door leaf	-
Thickness	57 mm.
Panel details	28 mm insulated flat panel. 28 mm insulated flat panel with bolection moulding. 28 mm insulated grooved panel. 28 mm insulated grooved panel with bolection moulding. 45 mm insulated raised and fielded panel.
Species	Engineered Red Grandis Hardwood. Engineered Redwood Softwood. Accoya.
Finish	Three coats of spray applied water based micro-porous paint. Three coats of spray applied water based micro-porous stain.
Colour	-
External	White (RAL 9003). Colour from RAL classic range. Insert requirement. Colour match. Insert requirement. Dual finish. Insert requirement.
Internal	White (RAL 9003). Colour from RAL classic range. Insert requirement. Colour match. Insert requirement. Dual finish. Insert requirement.
Glazing	-
Type Internally dry glazed and vented with glazing tapes in accordance with Glass and Glazing Federation requirements.	24 mm Double glass unit comprising 4mm Tough / 16mm Argon / 4mm Tough Low E 1.2. 24 mm Double glass unit comprising 4 mm Tough / 16 mm Argon / 4 mm Tough Low E 1.0. 24.8 mm Acoustic Double glazed unit comprising 6.8 mm Sound Control Laminate / 14 mm Argon/ 4 mm Tough Low E 1.2. 24.8 mm Acoustic Double glazed unit comprising 8.8 mm Sound Control Laminate / 10 mm Krypton/ 6 mm Tough Low E 1.0. 27.6 mm Enhanced Acoustic Double glass unit comprising 10.8 mm Sound Control Laminate / 10 mm Krypton / 6.8 mm Sound Control Laminate Low E 1.0. 14 mm Double glass unit comprising 4 mm Tough / 6 mm Krypton / 4 mm Tough Low E 1.0. 16.8 mm Double glass unit comprising 6.8 mm Laminate / 6 mm Krypton / 4 mm Tough Low E 1.0. Single glass 4 mm Toughened. Single glass 6 mm Toughened. Single Glass 6.8 mm Sound Control Laminate. Single Glass 4.5 mm Goetheglas Restoration Glass
Beading	-
Type	Internal cassette beading.

Frame section (width x depth)	68 x 93 mm. 90 x 93 mm.
Door leaf section	117 x 57 mm. Stile (width x depth) with 219 mm bottom rail.
Sill	44 x 142 mm Hardwood Sapele timber sub sill with low level aluminium threshold (mobility compliant). Low level aluminium threshold (mobility compliant) no timber sub sill.
Hinges	Polished Brass fixed pin hinges. Polished chrome fixed pin hinges. Satin chrome fixed pin hinges. Antique brass fixed pin hinges. Dark Bronze fixed pin hinges.
Frame profile moulding	Ovolo. Lambs tongue. Square.
Internal Glazing Bars and/or Perimeter Bead	18 mm Fine lambs tongue. 18 mm Ovolo. 18 mm Square. 22 mm Lambs tongue. 22 mm Ovolo. 22 mm Square. 28 mm Ovolo. Show more
External Glazing Bars	18 mm chamfered putty bar. 22 mm chamfered putty bar. 28 mm chamfered putty bar. 6 mm ‘antiqued’ lead to internal and external faces of the outer pane. 9 mm ‘antiqued’ lead to internal and external faces of the outer pane. 12 mm ‘antiqued’ lead to internal and external faces of the outer pane. Show more
Integral glazing bars and/ or perimeter bead	Black warm edge perimeter spacer and integral glazing bars within unit cavity. 24 and 24.8 glazing. White warm edge perimeter spacer and integral glazing bars within unit cavity. 24 and 24.8 glazing. Black aluminium perimeter spacer. 14 and 14.8 glazing. White aluminium perimeter spacer. 14 and 14.8 glazing.
Fanlight design Special decorative bar and leaded designs available. Include design drawings in specification.	Not required. Diamond. Egg and dart. Fish tail. Gothic. Gothic semi-circular. Sunflower semi-circular. Sunray 3 semi-circular. Sunray 5. Other. Alternatives available upon request. Show more
Door knob	Not required. Polished Brass. Polished Chrome. Satin Chrome. Other. Alternatives available upon request.
Door knocker	Not required. Polished Brass. Polished Chrome. Satin Chrome. Other. Alternatives available upon request.
Letter plate	Not required. Polished Brass. Polished Chrome. Satin Chrome. Other. Alternatives available upon request.
Spy hole	Not required. Polished Brass. Polished Chrome. Satin Chrome. Other. Alternatives available upon request.
Air permeability Dependent on opening arrangement and threshold detail.	-
Watertightness Dependent on opening arrangement and threshold detail.	-
Wind resistance Dependent on opening arrangement and threshold detail.	-

Environmental information

Country of product manufacture	United Kingdom
Recyclability Refer to manufacturer website for product end of life instructions.	-

BIM objects

Platform	Compatible	Version
IFC	IFC2X3	2
Revit	Revit 2015	2

Literature

Site instruction, aftercare manual & warranty

Third party certifications

Timber FSC Certified
ISO 9001
ISO 14001
British Woodworking Federation Member
CE Marked
