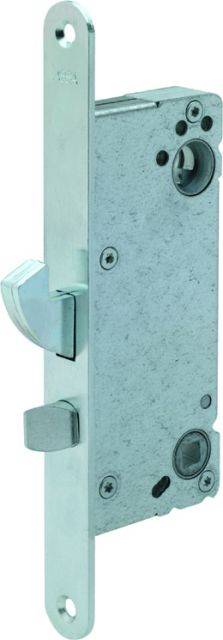

Connect Sash Lock 310
Application

Locks for shops and entrance doors to private houses, industrial premises, offices or for any situation where a key operated hookbolt lock is required plus a latch and lever handles.

Description

Application:

Locks for shops and entrance doors to private houses, industrial premises, offices or for any situation where a key operated hookbolt lock is required plus a latch and lever handles.

Features:

  • Available with backset 35, 50 or 70 mm.
  • Steel hookbolt thrown 23.5 mm by 90° turn of key or thumbturn.
  • Handing of the latchbolt is reversible.
  • Latchbolt of steel for fire-rated doors.
  • Supplied with striking plate.
  • A microswitch can be fitted to monitor hookbolt thrown and withdrawn status.
  • CE approved.

Function:

  • The hook bolt is operated with key or thumbturn.
  • The latchbolt is retracted with lever handle.

Suitable cylinders:

Scandinavian oval or round:

  • ASSA 5-Pin.
  • ASSA Flexcore Plus.
  • ASSA 4800.
  • ASSA Twin Combi.
  • ASSA dp4400.
  • ASSA CLIQ.

Additional information for this product is available from:

http://www.assa.co.uk/en/site/assacouk/Products1/?groupId=644145

General information

Features

Available with backset 35, 50 or 70 mm

Steel hookbolt thrown 23.5 mm by 90° turn of key or thumbturn

Handing of the latchbolt is reversible

Latchbolt of steel for fire-rated doors

Supplied with striking plate

Show more

Uniclass 2015

Pr_30_36_08_24 Door latches

CAWS

P21/24 Door locks

P21/515 Door locks

Specification data - Door latches

Product Reference

Connect Sash Lock 310, Double Cylinders

Connect Sash Lock 310, Single Cylinder

Connect Sash Lock 310, Single Cylinder And Thumbturn

Handing

Left hand inward opening

Left hand outward opening

Right hand inward opening

Right hand outward opening

Backset

35 mm

50 mm

70 mm

Colour/ Finish

Bright zinc

Satin chrome

Special finish.

Microswitch

Not required

Required
