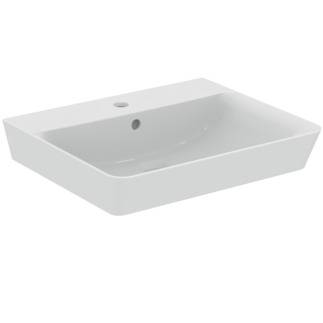

Connect Air Cube 55 cm Washbasin

Name: Connect Air Cube 55 cm Washbasin
Brand: Ideal Standard (UK) Ltd
SKU: 9C7JPtxD7i3YdfgjFKu6Lm

Verified by manufacturer over a year ago

Ideal Standard (UK) Ltd

A 55 cm washbasin, with one tap hole and overflow.

Jump to:

+44 (0)870 122 8822 Website

Application

Suitable for hotel, office and residential use.

Description

Connect Air Cube 55 cm washbasin, with one tap hole and

overflow. The washbasin is wall mounted using E0157 wall fixing set, with semi-pedestal it is fixed to the wall with brackets supplied or full pedestal mounted using two screws through the back of wall. When fitted to furniture the washbasin must be secured to wall with E0157 wall fixing set, can be used with dedicated Concept Air basin unit

Features and benefits:

Part of an extensive range.
Furniture or pedestal use.
Pedestal or semi-pedestal options.
Also available in 50 and 60 cm sizes (specified separately).

General information

Color	White
Material	Clay Guidance for specification option: Fine.
Shape	Rectangle
Width	500 mm

Uniclass	Pr_40_20_96_18 Countertop washbasinsPrimary
CAWS	N13/335 Washbasins N13/30 Washbasins

Specification data - Countertop washbasins

Standard	To BS EN 14688 and BS EN 31.
Form	Wall-mounted, pedestal or semi-pedestal.
Materials	-
Body	Fine fireclay.
Finish and colour	White.
Size	550 x 460 mm. Manufacturer guidance Width x depth.
Water supply, overflow and waste holes	-
Water supply	Single tap hole, centred.
Overflow	Rear overflow hole.
Integral accessories	Not required. E0157 wall fixing set.
