Connect 2 Slider Door
Verified by manufacturer over a year ago

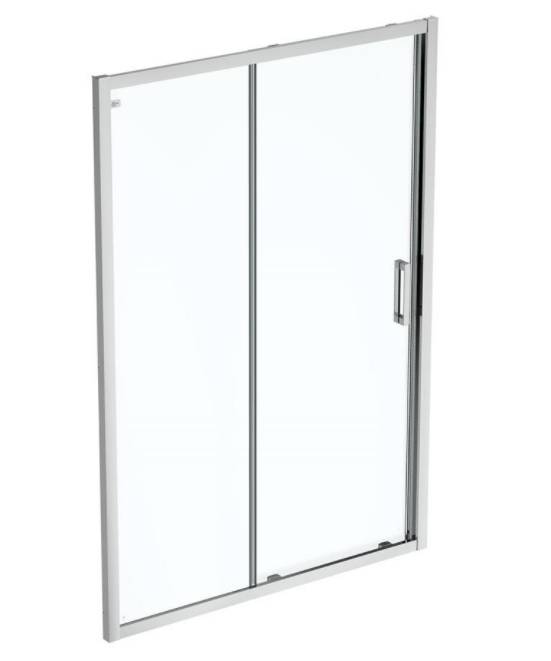

K9394 - 1000 mm Slider Door - Alcove
K9394 - 1000 mm Slider Door - Alcove
Slider door with IdealClean clear glass.
Application
Suitable for hotels and residential applications.
Description
Connect 2 shower enclosures, doors and side panels are a modern minimal design, 6 mm semi-framed range.
Features and benefits:
- 6 mm toughened clear safety glass.
- IdealClean treatment.
- 25 mm adjustment per profile.
- Sleek chrome plated handle.
- Click and clean wheels.
- Available in 1000, 1100, 1200 and 1400 mm to suit various tray sizes.
- Unhanded.
- Concealed fixings.
- Smooth running wheels.
- Power shower proof.
General information
Color | Silver Black |
Material | Glass Guidance for specification option: Toughened Safety Glass. |
Shape | Rectangle |
Width | 950 mm 1100 mm 1200 mm 1400 mm |
Height | 1955 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower enclosures
Standards | To BS EN 14428. |
Form | Sliding door. |
Materials | |
Frame | |
Finish and colour | Bright silver (EO).Silk black (V3). |
Glazing | |
Glazing type | 6 mm toughened safety glass. |
Finish and colour | Clear. |
Dimensions | |
Plan size | 950 x 950 mm. |
Height | 1955 mm. |
Integral accessories | Not required.L6309 - Shower tray riser kit.Guidance for specification option: Riser kit for trays up to 1200 mm, includes legs and panels. If using with the L6309 (01) riser kit, the L631201 extension kit will also need to be purchased. L5117 - Shower tray.Guidance for specification option: Simplicity low profile rectangular upstand shower tray. K9415 - Shower enclosure side panel.Guidance for specification option: Connect 2 800 mm Side Panel with idealclean clear glass. K9412 - Shower enclosure side panel.Guidance for specification option: Connect 2 700 mm Side Panel with idealclean clear glass, bright silver finish. K9413 - Shower enclosure side panel.Guidance for specification option: Connect 2 760 mm Side Panel with idealclean clear glass, bright silver finish. K9578 - Shower enclosure side panel.Guidance for specification option: Connect 2 1000 mm Side Panel with idealclean clear glass, bright silver finish. K9416 - Side panel.Guidance for specification option: Connect II 900 mm Side Panel. |
Weight | 34.00 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
