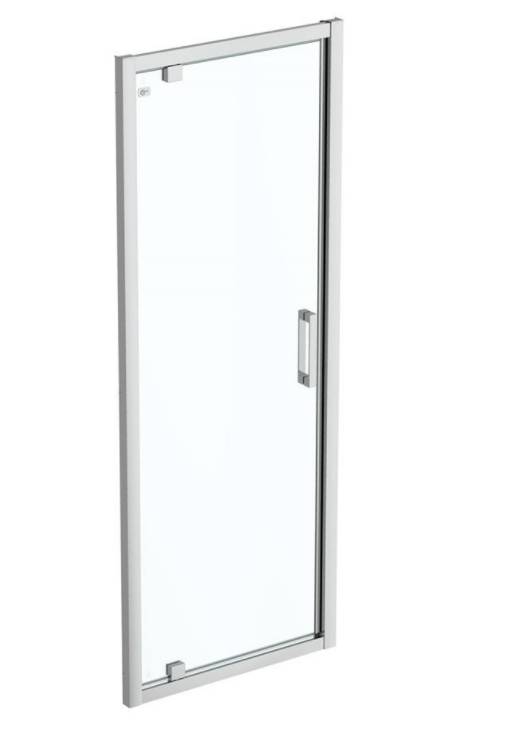

Connect 2 Pivot Door - Alcove
Verified by manufacturer over a year ago

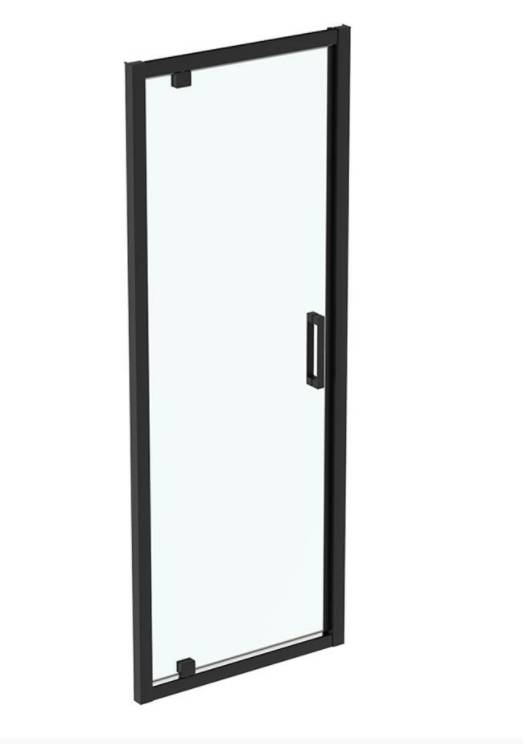

Connect 2 800 mm pivot door with IdealClean clear glass.
Application
Suitable for hotels and residential applications.
Description
Connect 2 shower enclosures, doors and side panels are a modern minimal design, 6 mm semi-framed range.
Features and Benefits:
- 6 mm toughened clear safety glass.
- IdealClean treatment.
- 25 mm adjustment per profile.
- Sleek chrome plated handle.
- Click and clean wheels.
- Unhanded.
- Concealed fixings.
- Smooth running wheels.
- Power shower proof.
General information
Color | Silver Black |
Finish | Chrome |
Material | Glass Guidance for specification option: Toughened Safety Glass. |
Shape | Rectangle |
Width | 800 mm |
Height | 1955 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/40 Shower units N13/375 Shower units |
Specification data - Shower enclosures
Standards | To BS EN 14428. |
Form | Pivoted door. |
Materials | |
Frame | |
Finish and colour | Bright silver (EO).Silk black (V3). |
Glazing | |
Glazing type | 6 mm toughened safety glass. |
Finish and colour | Clear. |
Dimensions | |
Plan size | 800 x 800 mm. |
Height | 1955 mm. |
Integral accessories | Not required.Side panel - K9415.Guidance for specification option: Connect 2 800 mm Side Panel. Shower Tray - L5114.Guidance for specification option: Simplicity 800 x 800 mm low profile upstand shower tray including waste with 4 upstands. Side panel - K9412.Guidance for specification option: Connect 2 700 mm Side Panel. Side panel - K9413.Guidance for specification option: Connect 2 760 mm Side Panel. Side panel - K9416.Guidance for specification option: Connect 2 900 mm Side Panel. Side panel - K9578.Guidance for specification option: Connect 2 1000 mm Side Panel. Shower Tray Riser Kit - L6309.Guidance for specification option: Riser kit for trays up to 1200 mm, includes legs and panels. |
Weight | 28.00 kg. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
