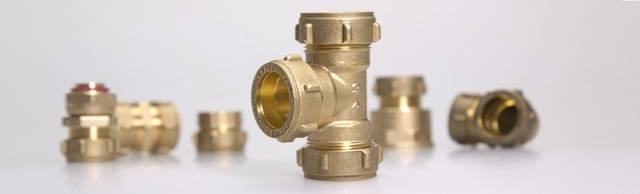

Conex Compression

Application

Drinking water applications, sealed heating systems, open vented heating systems, solar thermal systems, chilled water, rainwater harvesting systems, wet' fire extinguishing tube systems, compressed air, industrial and processing water, natural gas installations, liquefied petroleum gas installations, fuel oil supply systems.

Description

Conex Compression fittings are manufactured from high quality brass materials which ensures a permanently tight and secure connection, without the use of special tooling or additional sealant. These fittings are suitable for connecting a wide range of tubes, including copper tubes in accordance with EN 1057, carbon steel to EN 10305, stainless steel to EN 10312 and plastic pipes to BS EN 7291, EN 15875 and EN 15876.


Features and benefits:

  • Multiple tube compatibility.
  • Permanent, flame-free connection – no hot works permit required.
  • Easy to use.
  • Unique rib-nut design.
  • Corrosion resistant.

General information

Color

Gold

Bronze

Material

Brass

Natural brass, Red brass (DZR).

Shape

Dependent on type.

-

Size

6–108 mm

WarrantyDescription

25 years

From the date of first purchase.

Uniclass 2015

Pr_65_52_63_18 Copper pipeline fittingsPrimary

CAWS

S90/110 Mains cold water supply

S90/120 Storage cold water supply

S90/110 Mains cold water supply

S90/130 Instantaneous hot water supply

S90/120 Storage cold water supply

S90/140 Direct hot water storage supply

S90/130 Instantaneous hot water supply

S90/150 Indirect hot water storage supply

S90/140 Direct hot water storage supply

S90/150 Indirect hot water storage supply

S90/160 Rainwater/ greywater recycling system

Specification data - Copper pipeline fittings Enhanced data

Standards

-

Compression

To EN 12165, EN 1982, ISO 228, EN 10226, EN 1057, EN 248, EN 10312, EN 10305, BS 7291 part 2, EN 15876, EN 15875; ISO 9001.

Product Reference

Conex Compression

Bent Tap Connector 15mm x 1/2" to 22mm x 3/4"

Conex Compression

Cross - Equal 22mm

Conex Compression

Cross Over 15 to 22mm

Conex Compression

Elbow 12 to 76mm

Conex Compression

Elbow with Air vent 15mm to 22mm

Show more

Environmental information

Country of material origin

China

Third party certifications

  • WRAS
  • DVGW
  • KIWA
