Conex Compression
Application

Drinking water applications, sealed heating systems, open vented heating systems, solar thermal systems, chilled water, rainwater harvesting systems, wet' fire extinguishing tube systems, compressed air, industrial and processing water, natural gas installations, liquefied petroleum gas installations, fuel oil supply systems.

Description

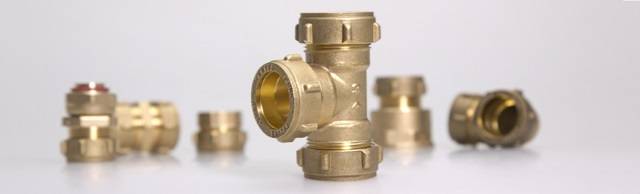

Conex Compression fittings are manufactured from high quality brass materials which ensures a permanently tight and secure connection, without the use of special tooling or additional sealant. These fittings are suitable for connecting a wide range of tubes, including copper tubes in accordance with EN 1057, carbon steel to EN 10305, stainless steel to EN 10312 and plastic pipes to BS EN 7291, EN 15875 and EN 15876.

Features and benefits:

  • Multiple tube compatibility.
  • Permanent, flame-free connection – no hot works permit required.
  • Easy to use.
  • Unique rib-nut design.
  • Corrosion resistant.

Application:

Drinking water applications, sealed heating systems, open vented heating systems, solar thermal systems, chilled water, rainwater harvesting systems, wet' fire extinguishing tube systems, compressed air, industrial and processing water, natural gas installations, liquefied petroleum gas installations, fuel oil supply systems.

General information

Size

Features

Compatible with copper, carbon steel, many types of plastics unique ribbed nut up to 28 mm

Material

Natural brass, Red brass (DZR), nickel, chrome plated

Shape

Dependent on type

WarrantyDescription

25 years from the date of first purchase

Uniclass 2015

Pr_65_52_63_18 Copper pipeline fittingsPrimary

CAWS

S90/10 Mains cold water supply

S90/11 Storage cold water supply

S90/110 Mains cold water supply

S90/12 Instantaneous hot water supply

S90/120 Storage cold water supply

Show more
Specification data - Copper pipeline fittings

Product Reference

Conex Compression

Bent Tap Connector 15mm x 1/2" to 22mm x 3/4"

Conex Compression

Cross - Equal 22mm

Conex Compression

Cross Over 15 to 22mm

Conex Compression

Elbow 12 to 76mm

Conex Compression

Elbow with Air vent 15mm to 22mm

Conex Compression

Elbow with Drain Tap 15mm to 22mm

Conex Compression

Extended Male Straight Connector with Back Nut 15 x 1/2" to 76 x 3"

Conex Compression

Female Elbow 15 x 1/2" x 54 x 2"

Conex Compression

Female Straight 8 x 1/4" to 76 x 3"

Conex Compression

Female Wall Plate Elbow 2 Hole Flange 15 x 1/2"

Conex Compression

Female Wall Plate Elbow 3 Hole Flange 10 x 1/2" to 22 x 3/4"

Conex Compression

Imperial to Metric Straight Coupler 76mm x 3"

Conex Compression

Male Elbow 8 x 1/4" to 54 x 2"

Conex Compression

Male Elbow with Drain Tap 22 x 3/4"

Conex Compression

Male Straight Coupler 6 x 1/8" to 108 x 4"

Conex Compression

Male Taper Elbow 12 x 3/8" to 28 x 1"

Conex Compression

Male Taper Straight Connector 10 x 3/8" to 28 x 1"

Conex Compression

Obtuse Elbow 15 to 28mm

Conex Compression

Reduced Elbow 15 to 28mm

Conex Compression

Reduced Straight Coupler 12 to 35mm

Conex Compression

Slow Bend 15mm to 28mm

Conex Compression

Stop End 12mm to 54mm

Conex Compression

Straight Coupler 12 to 108mm

Conex Compression

Straight Coupler Bulkhead 15 x 1/2"

Conex Compression

Straight Coupler Burst Pipe Repair 12mm to 22mm

Conex Compression

Straight Coupler with Air Vent 15mm

Conex Compression

Straight Coupler with Drain Tap 15mm to 22mm

Conex Compression

Straight Tap Connector 15 x 1/22 to 22 x 1"

Conex Compression

Tank Connnector 15mm to 54mm

Conex Compression

Tee - Equal 12mm to 76mm

Conex Compression

Tee - Reduced Both Ends 15mm to 28mm

Conex Compression

Tee - Reduced Branch 15mm to 76mm

Conex Compression

Tee - Reduced End 15mm to 28mm

Conex Compression

Tee with Female Branch 15 x 1/4" to 28 x 1"

Conex Compression

Tee with Female End 15 x 1/2" to 22 x 3/4"

Conex Compression

Tee with Male Branch 15 x /2" to 22 x 3/4"

Conex Compression

Tee with Male End 15 x 1/2"

Standard

-

Compression

EN 12165, EN 1982, ISO 228, EN10226, EN 1057, EN 248, EN 10312, EN 10305, BS 7291 part 2, EN 15876, EN 15875, ISO 9001

Size

Insert requirement, available 6–108 mm.

Standard product features

Features:

Compatible with copper, carbon steel, many types of plastics unique ribbed nut up to 28 mm.

Material:

Natural brass, Red brass (DZR), nickel, chrome plated.

Shape:

Dependent on type.

Size:

6mm - 108 mm

Warranty description:

25 years from the date of first purchase.

Recyclability:

Recyclable.

Country of origin:

China

Environmental information

Recyclability

Recyclable

Third party certifications
  • WRAS
  • DVGW
  • KIWA
